✍ Features

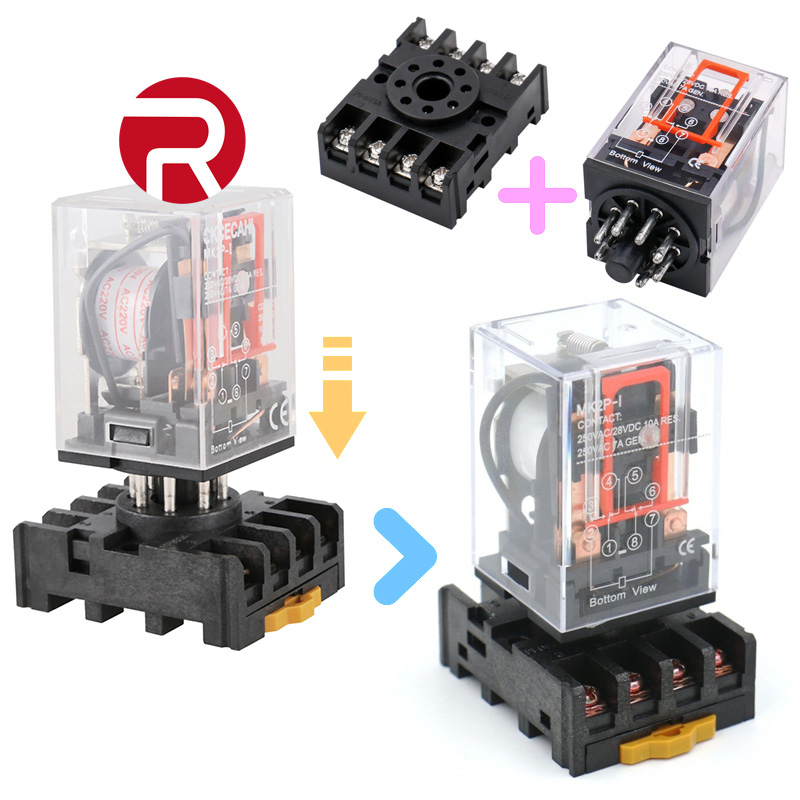

• Plug-in Terminals, easy to exchange while mount on relay base
• Built-in operation indicators LED

▼ Specifications

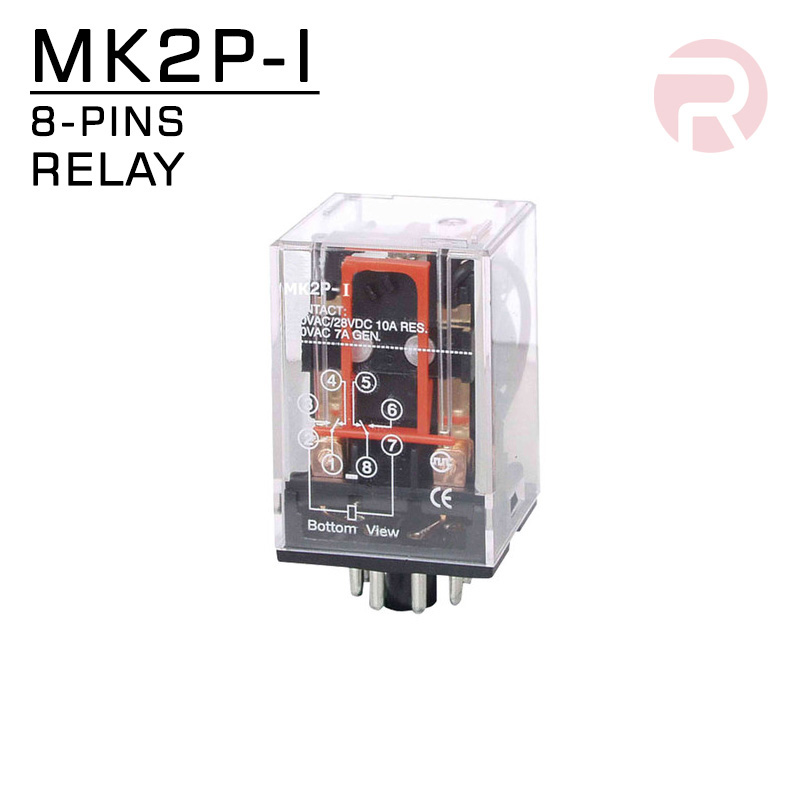

• Model MK2P-I
• Coil voltage: Optional
• Poles & Throw: Double Pole Double Throw
• Relay Mounting: Socket

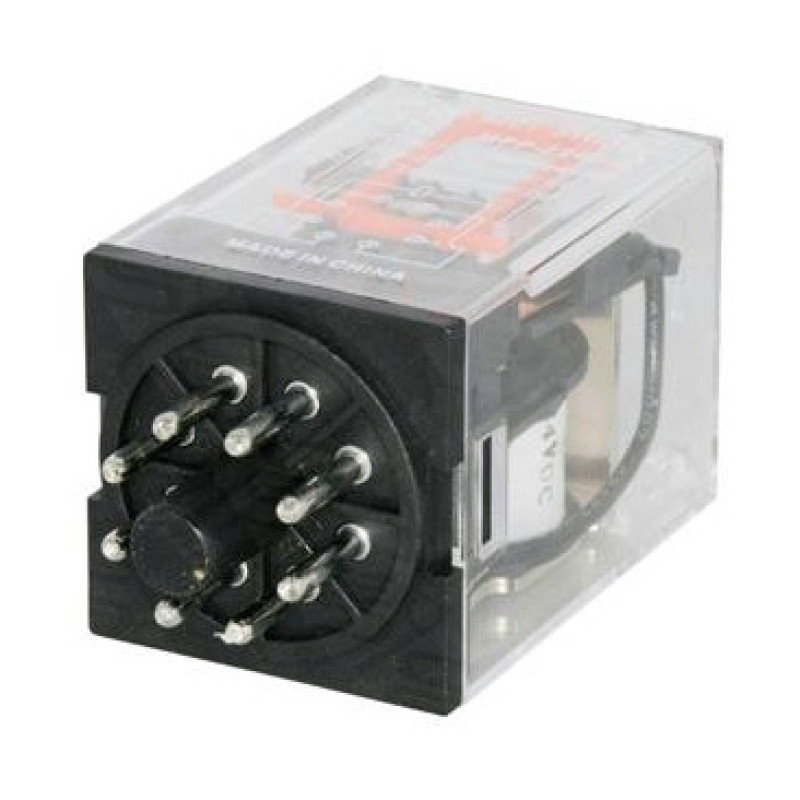

• Relay Terminals: Quick Connect
• Type: Non-Latching
• Coil power: (Each Pole)
  • AC 0.9 ~ 1.2VA
  • DC <0.9W
• Contact:
  • Contact resistance: < 50 mΩ max.
  • Insulation resistance: > 100 MΩ min.
  • Contact Load (Resistive)
    • AC: 10A 240VAC max.
    • DC: 10A 28VDC max.
  • Contact Load (Inductive)
    • AC: 7.5A 240VAC max.
    • DC: 7.5A 28VDC max.
• Ambient operating temperature: -40to 60°C
• Ambient operating humidity: 5% to 85%
• Size Casing:  34 x 34 x 65mm
• Weight: 72g

▼ Package Content:

• 1 x Relay
