The LY series are miniature power relays for general-purpose applications. It is equipped with an arc barrier and built-in diode.

Applications

Industrial, Power Management, Automation & Process Control, Consumer Electronics

Features

• Plug-in Terminals, easy to exchange while mounted on a relay base
• Built-in operation indicators LED & diode

▼ Specifications

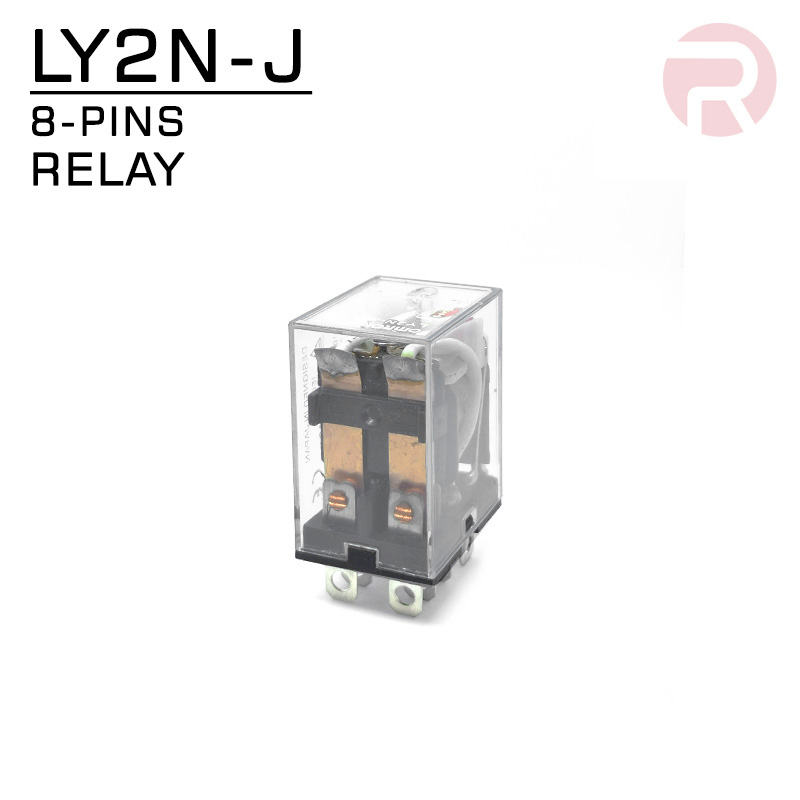

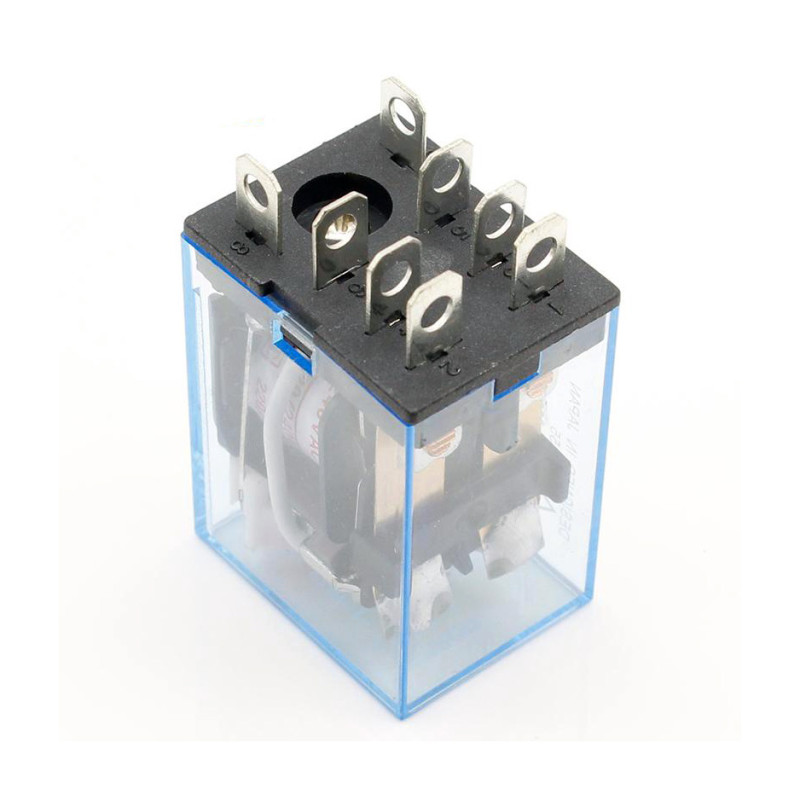

• Model LY2N-J
• Coil voltage: Optional
• Poles & Throw: Double Pole Double Throw
• Relay Mounting: Socket
• Relay Terminals: Quick Connect
• Type: Non-Latching
• Coil power: (Each Pole)
  • AC 0.9 ~ 1.2VA
  • DC <0.9W
• Contact:
  • Contact resistance: < 50 mΩ max.
  • Insulation resistance: > 100 MΩ min.
  • Contact Load (Resistive)
    • AC: 10A 240VAC max.
    • DC: 10A 28VDC max.
  • Contact Load (Inductive)
    • AC: 7.5A 240VAC max.
    • DC: 5.0A 28VDC max.
• Ambient operating temperature: -40to 60°C
• Ambient operating humidity: 5% to 85%
• Size:
  • Casing: 35 x 26.5 x 20.3
  • Pins: 5 x 6mm
• Weight: < 35g

▼ Package Content:

• 1 x Relay
