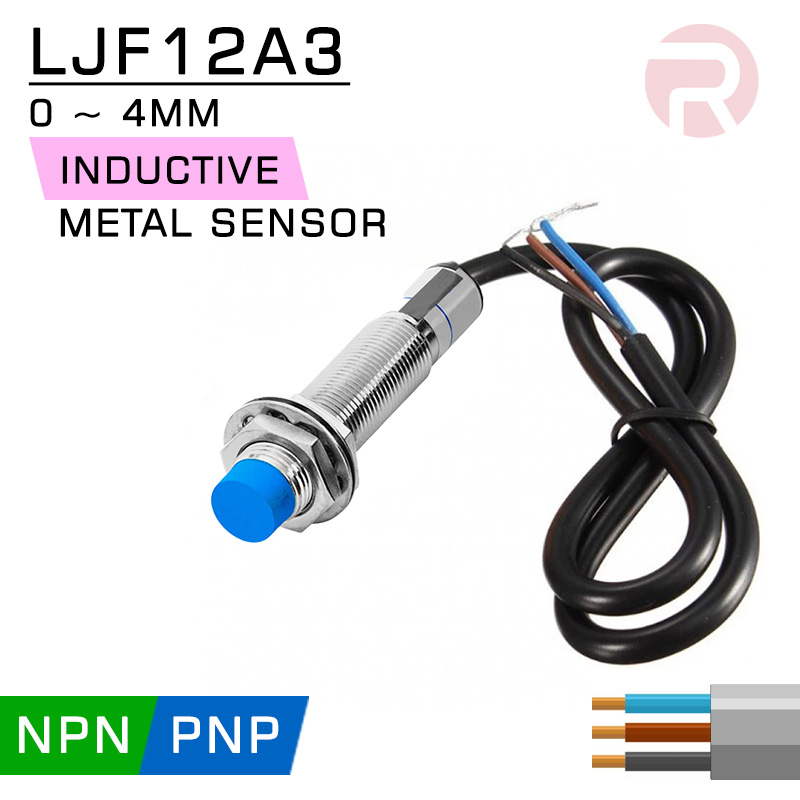

✍Inductive proximity sensors are used for non-contact detection of metallic objects. Their operating principle is based on a coil and oscillator that creates an electromagnetic field in the close surroundings of the sensing surface. The presence of a metallic object (actuator) in the operating area causes a dampening of the oscillation amplitude. The rise or fall of such oscillation is identified by a threshold circuit that changes the output of the sensor. The operating distance of the sensor depends on the actuator's shape and size and is strictly linked to the nature of the material
- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -
▼Features:
To detect metal object
High precision of repeated location
Diversified exterior structures
Wide voltage range
With short-circuit protection and inverted connecting protection
Minimize interference by visible light
Easy to install
▼Specification:
Working Voltage: DC 6V - 36V
Loaded Current: 300mA
Response Frequency: 500Hz
Detect Range: 0 - 4mm
Switch Appearance Type: Cylinder Type
Theory: Induction Sensor
Output Pin: NPN 3-wires Normally Open
Working Environment Temperature: -25°C ~ + 70°C
Wire Length: 1.2meter
Protection degree: IP 65
Body Material: Alloy & Plastic
Sensor: Iron 10.5 x 10.5 x 1mm

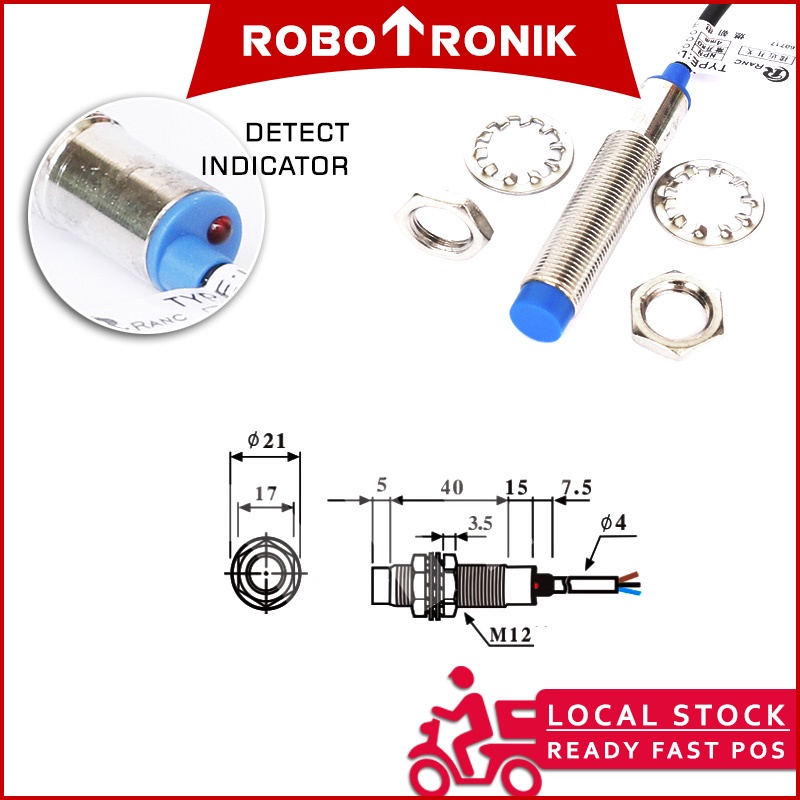

Dimensions : 2.2 x 6cm
Net Weight: 85g
===========================================
▼Pin-outs:
Brown - VCC (+)
Blue - Ground (-)
Black - Trigger Signal
