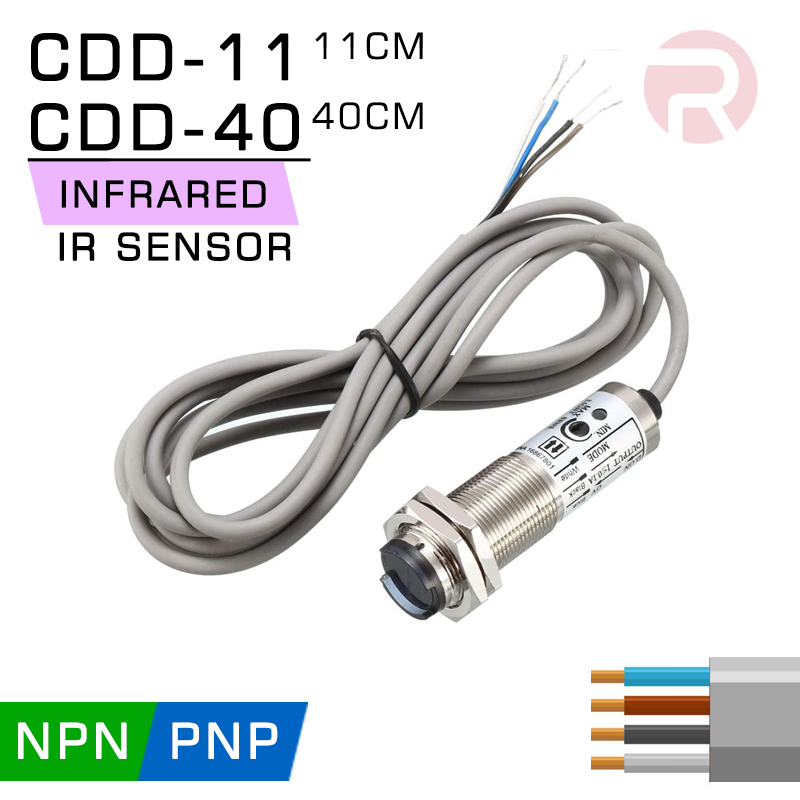

✍ Photoelectric sensor with transmitter and receiver 2 in 1 with adjustable distance.
Widely used in robot obstacle avoidance, assembly line and many other auto products.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features

• mA Output
• NPN / PNP
• NO (Normally Open) & NC (Normally Closed)
• Detectable to non-reflective & shiny object
• Minimize interference by visible light
• Easy to install
• IP66

▼ Specification

• Working Voltage: DC 10 - 30V
• Adjustable Detect Range:
  • CDD-11:  5 ~ 9.5cm
  • CDD-40:  5 ~ 39cm
• Power Consumption: 40mA
• Output: 100mA max
• Response Time: < 2ms
• Output Pin: 4-wires
• Mounting Thread: 3/4 inch (18 mm)
• Working Environment Temperature: -25°C ~ + 55°C
• Wire Length: 190cm

Package Included:

• 1 x CDD sensor

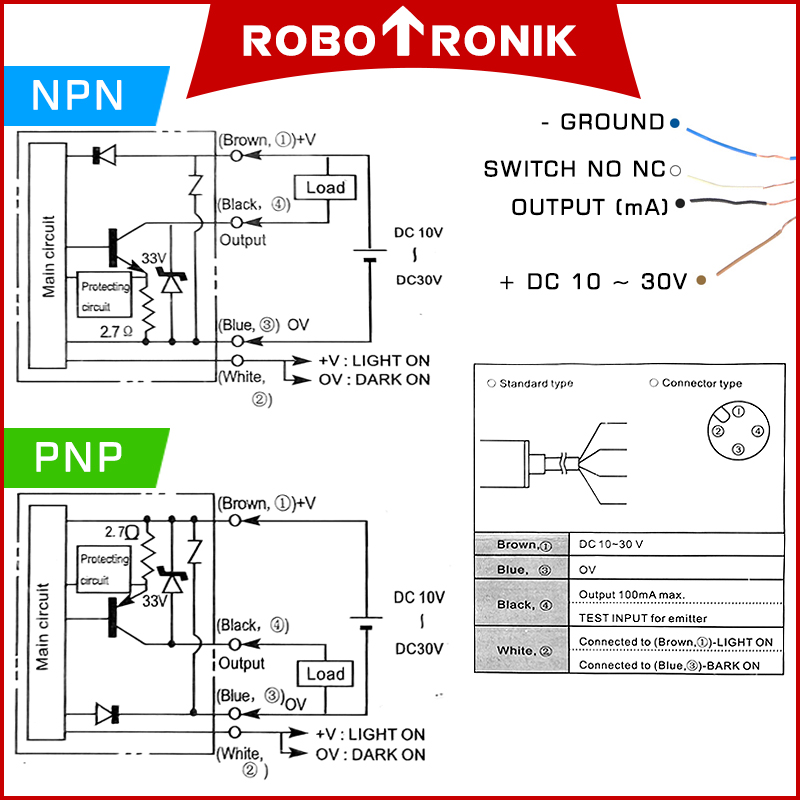

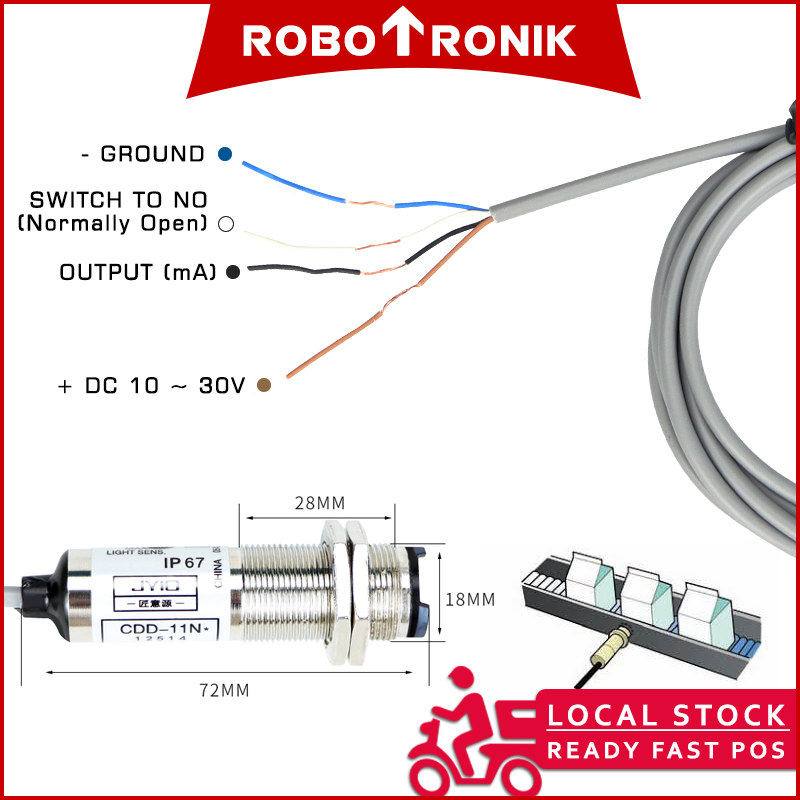

▼ Pin-outs:

• Brown - VCC (+)
• Blue - Ground (-)
• Black - Trigger Signal
• White - Switch to Normally Open (NO)
