✍ Equipment wires, ideal for use across a wide variety of electrical power, lighting and internal wiring applications. The flexible hook up cable can be used for reliable cable connections in a neat and well-organised layout. By using this high-quality range of equipment cables, the installation wires can be easily colour coded by using the different sheath colours available in the range, dependant on the installation terminals being used. In addition to this, the robust and carefully manufactured copper conductor ensures optimum reliability and performance, regardless of the application the wires are being used for.

▼ Applications Multi-Core

• Equipment wire or hook up wire can be used for a wide variety of low voltage and current applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors and PVC sheath, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:
• Circuit boards
• Computer Internal
• Small motor power

▼ Features

• Hook up wire
• Multi-Core: Easy for soldering compared to single-core wire
• Single-Core: Convenience to jump wire, eg. breadboard jumper
• Ideal for low voltage multi-purpose cable installations
• It is a flexible cable with a durable PVC protective sheath and copper conductors
• The cable offers good insulation due to the PVC insulation material
• and installation is easy and efficient thanks to the flexible layout of the cable

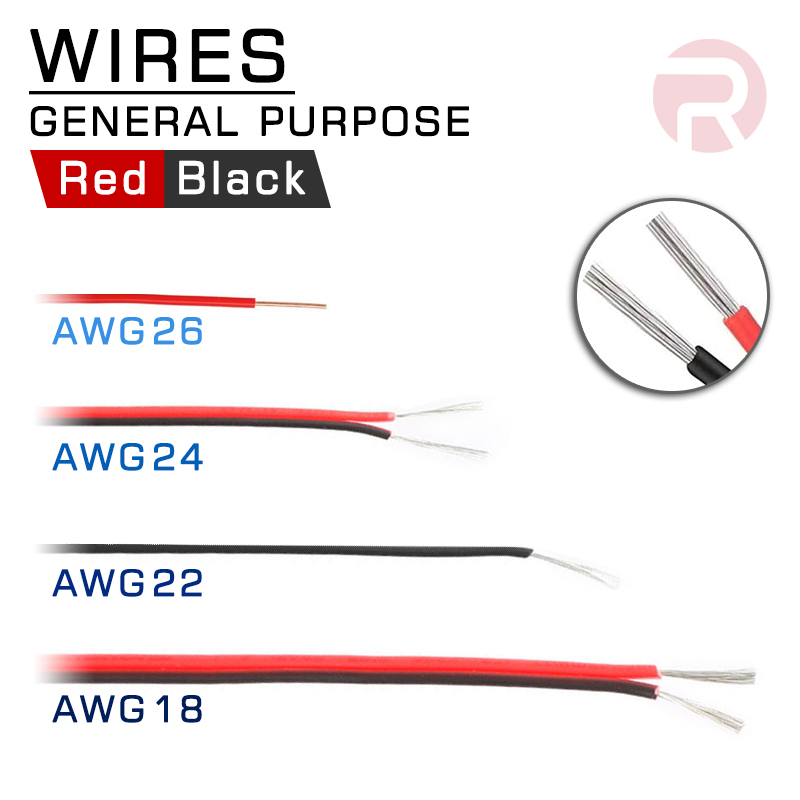

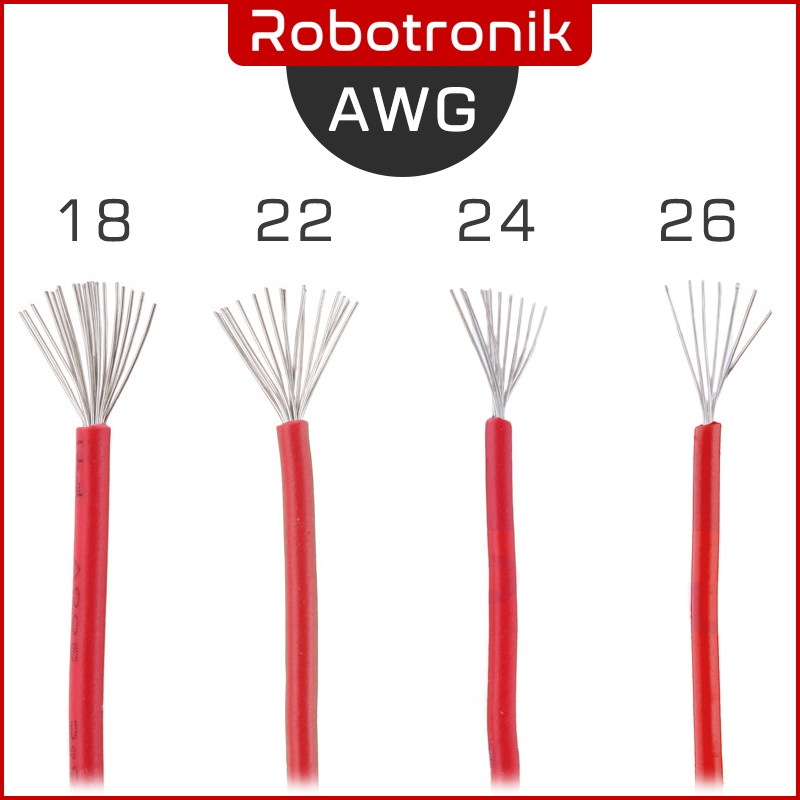

▼ Specifications

• Temperature rating: -15ºC to +80°C
• [26AWG]
  • Cable Type: Multi-Core
  • Core Strands: 7/0.16 mm
  • Outside diameter: 1mm
  • Conductor Material: Annealed Tinned Copper
• [22AWG]
  • Cable Type: Multi-Core
  • Core Strands: 17/0.16 mm
  • Outside diameter: 1.4mm
  • Conductor Material: Annealed Tinned Copper
• [Single-Core]
  • Cable Type: Single-Core
  • Core Strands: 1/0.5 mm
  • Outside diameter: 1mm
• [TWIN 24AWG] 2468
  • Cable Type: Multi-Core
  • Core Strands: 11/0.12 mm
  • Outside diameter: 1.3mm
  • Conductor Material: Annealed Tinned Copper
• [TWIN 18AWG] 2468
  • Cable Type: Multi-Core
  • Core Strands: 34/0.12 mm
  • Outside diameter: 1.8mm
  • Conductor Material: Annealed Tinned Copper

▼ Package Content

• 100CM (1 Meter) of the selected wire
  (Multiple quantities will cut the total length)
