✍ This charger is a very small battery charger module. It uses the TP4056 controller and standard configuration is with 1A charge current. Ideal for adding an embedded battery charger to your new project.

This module is used for single-cell lithium or lithium multi-section parallel, charging ports can take power from USB.

It can be used for voltage 3.6, 3.7V, etc. 18650, polymer, and other lithium battery charges.
LiPo (abbreviated as LIP, Li-poly, lithium-poly and others)

✍ Where to use TP4056 Charging Module:
This module is most commonly used with all projects involving a Lithium-ion battery. As we know a lithium battery should not be overcharged or over-discharged, hence this module will monitor the voltage level of the battery during charging and discharging. If the values go beyond critical value the module will automatically disconnect the circuit and protect your battery.

So If you are looking for a module using which you can safely use your Lithium battery for both charging it and for connecting it to your circuit then this module could be the right choice for you.

▼ Features

• Method: linear charge 1%

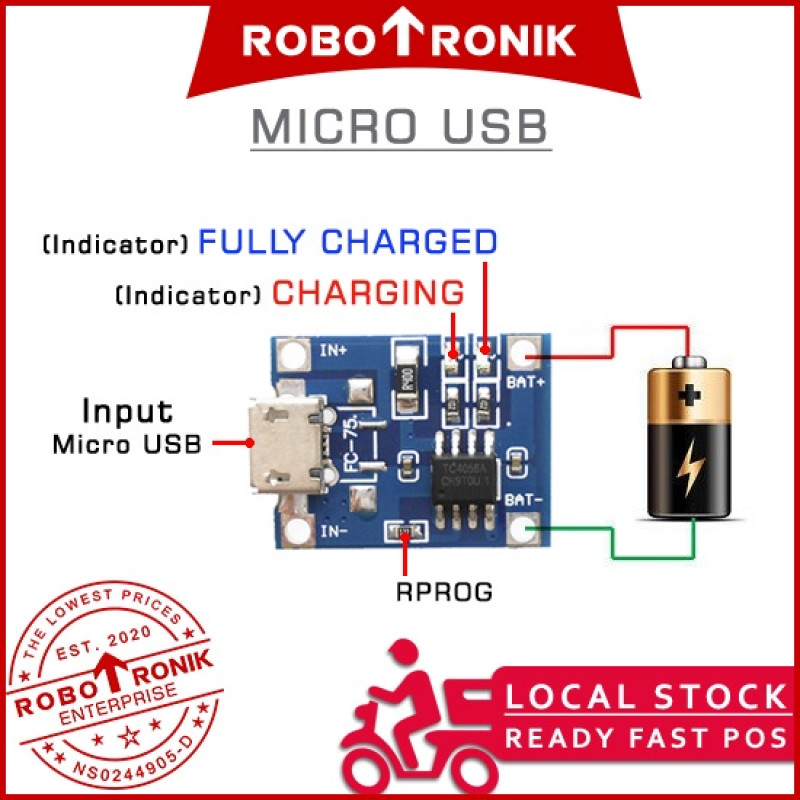

• Charging current: max 1A (Adjustable through RPROG)
• Charge Accuracy: 1.5%
• Input voltage: 4.5V - 5.5V DC
• Full charge voltage: 4.2V
• Charging indicator: Yes
• Working temperature: -10 Degree to +85 Degree
• Polarity Reversal: NOT ALLOWED

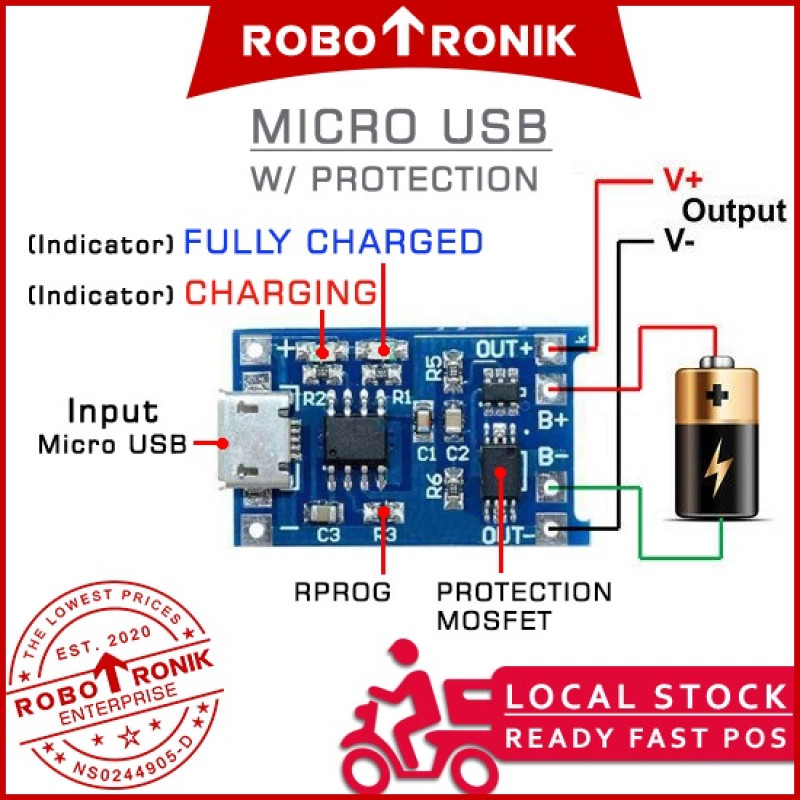

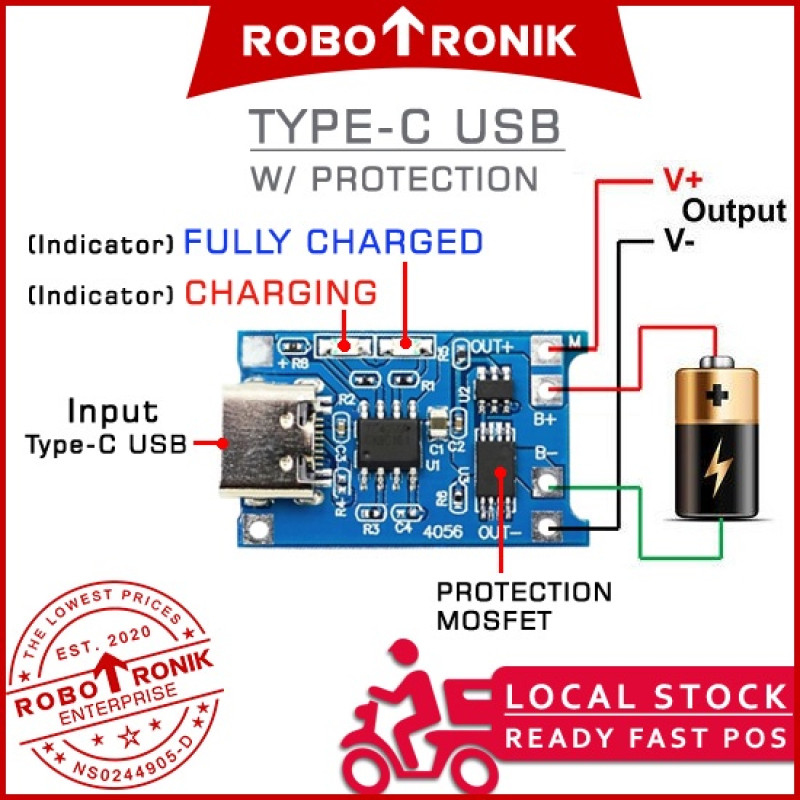

For a board with protection:
Battery over-current protection current: 3 A

▼ Package Included
1 x Charging board TP4056
