✍ Features

• Plug-in Terminals, easy to exchange while mount on relay base
• Built-in operation indicators LED

▼ Specifications

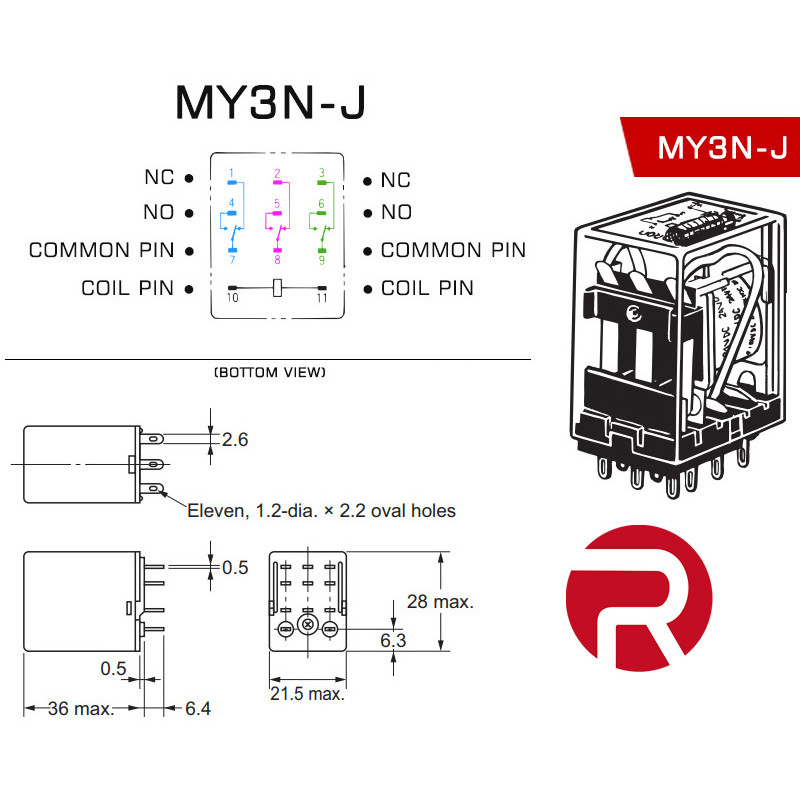

• Model MY3N-J
• Coil voltage: Optional
• Poles & Throw: 3 Pole Double Throw
• Relay Mounting: Socket
• Relay Terminals: Quick Connect
• Coil
  • Type: Non-Latching
  • Coil power:
    • AC 0.9 ~ 1.2VA
    • DC <0.9W
• Contact:
  • Contact resistance: < 50 mΩ max.
  • Insulation resistance: > 100 MΩ min.
  • Contact Load (Resistive)
    • AC: 5A 240VAC max.
    • DC: 5A 28VDC max.
  • Contact Load (Inductive)
    • AC: 2A 240VAC max.
    • DC: 2A 28VDC max.
• Ambient operating temperature: -40to 60°C
• Ambient operating humidity: 5% to 85%
• Size:
  • Casing: 35 x 26.5 x 20.3
  • Pins: 6 x 2.6mm
• Weight: < 35g

▼ Package Content:

• 1 x Relay
