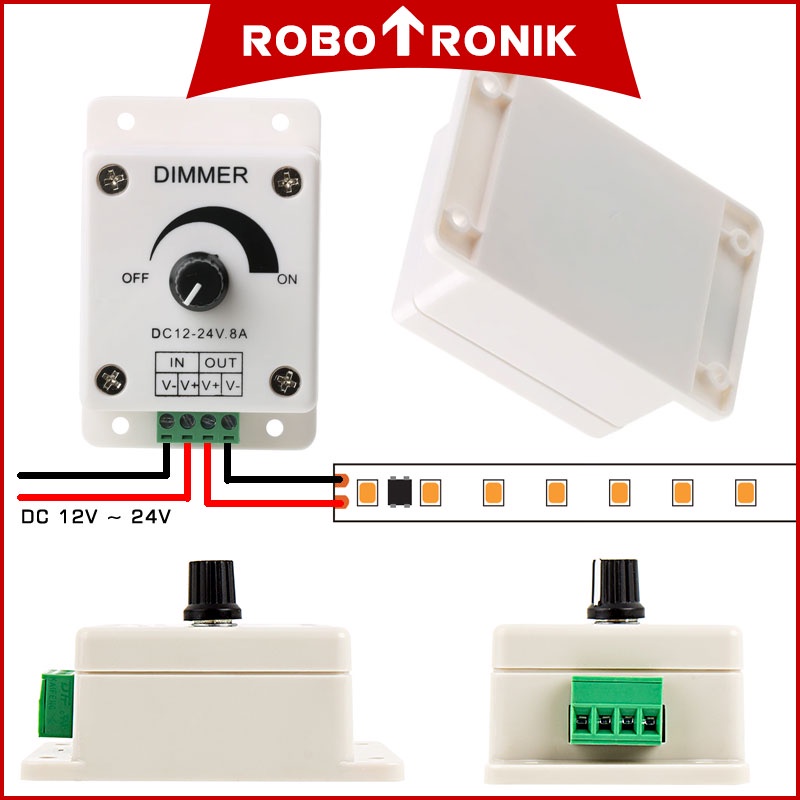

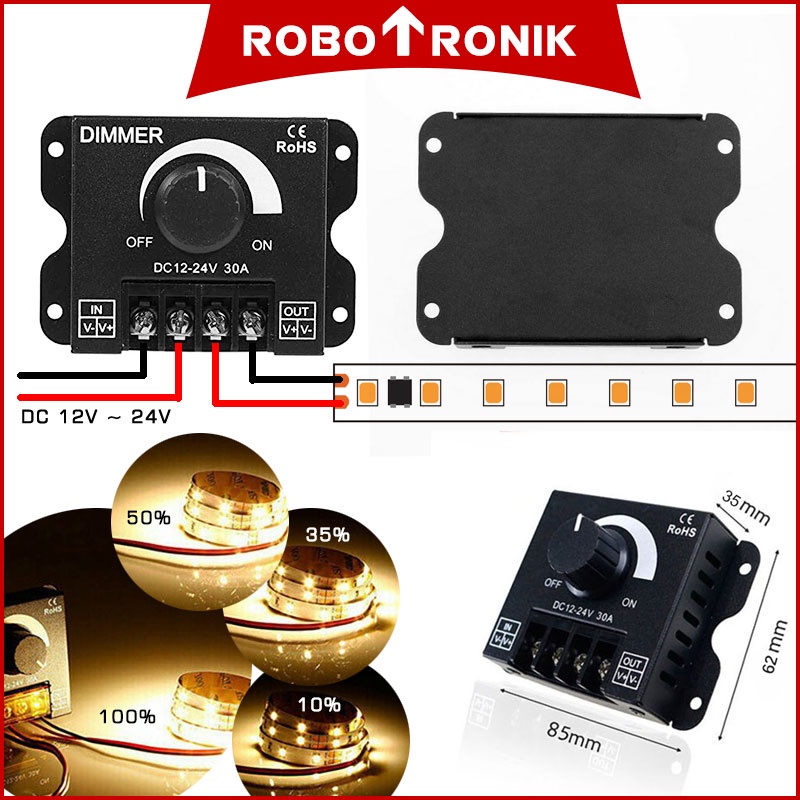

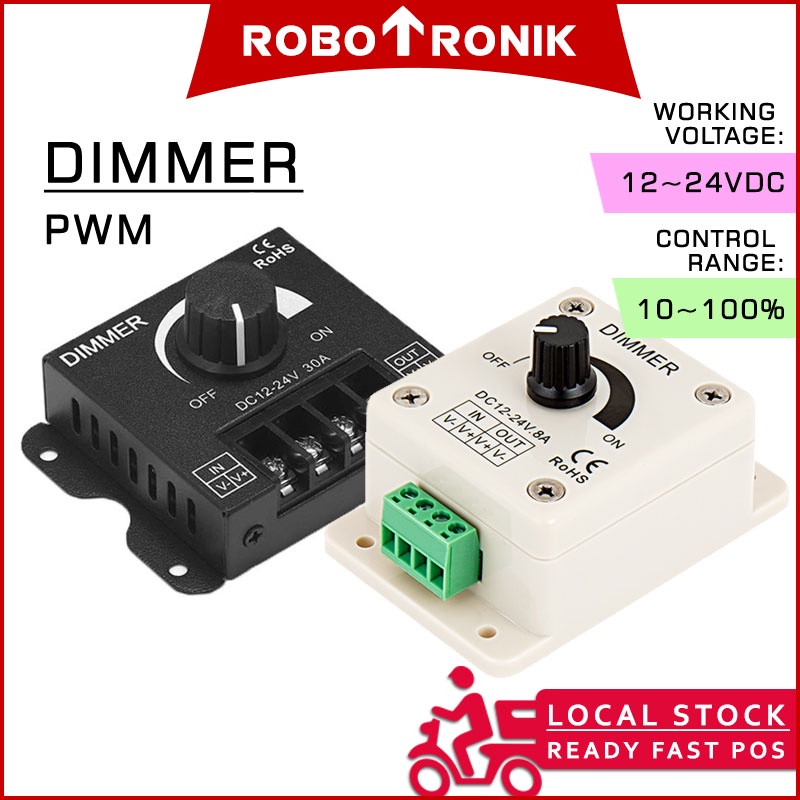

✍ The PWM LED dimmer can be connected between an LED driver and LED lighting modules to provide dimming control. With a maximum load of options 8 / 30 Amps, the LED dimmer can be used with constant voltage 12 V to 24 V LED devices. It also offers continuous single-channel dimming from 100% full brightness to 20% without flickering. A small footprint makes the dimmer deal for use in display cases and in architectural and cove lighting applications.

* Note:
Compatible single color LED strip (eg. 5050, 3528).
Not suitable for RGB light, table lamp, fan, and energy-saving bulb.
100% full brightness to 20% without flickering, below 20% may cause flickering vary depending on LED

▼ Specifications :
Supply Voltage: DC 12~24V
Max Load Current:
[Options 8A] 8 Amps
[Options 30A] 30 Amps
Output: 1 Channel
Static Power Consumption: < 1 Watt
Output Power:
[Options 8A] 12V <96W; 24V <192W
[Options 30A] 12V <360W; 24V <720W
Function: Dim LED product from 10~100% using PWM
Net Weight:
[Options 8A] 85g
[Options 30A] 100g
Working Temperature: -20~60°C

▼Package Included:
1 x LED Dimmer
