* Note: USB cable isn't included, please find it in the add-on deals

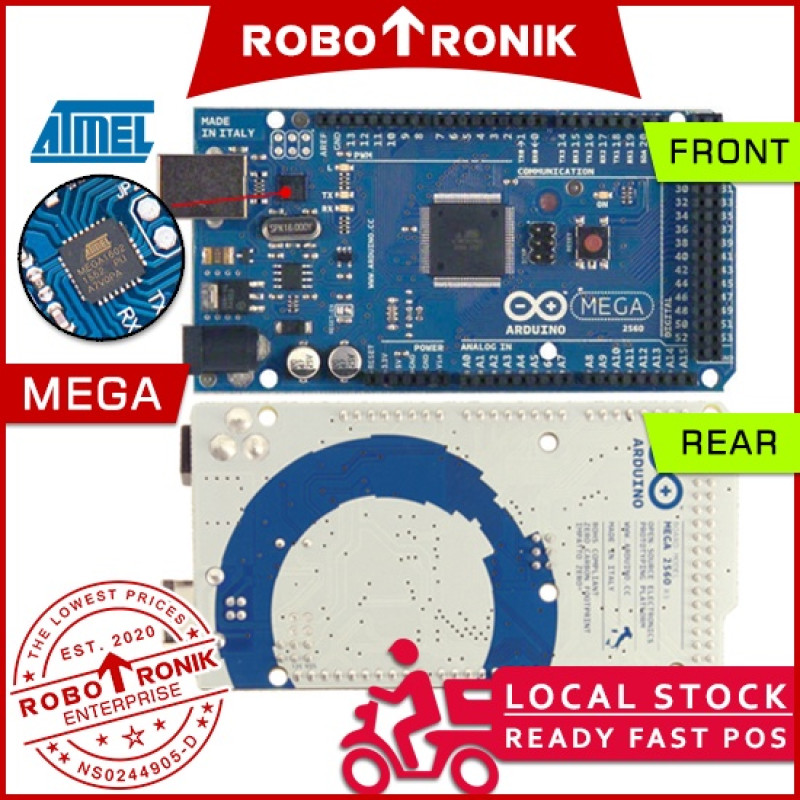

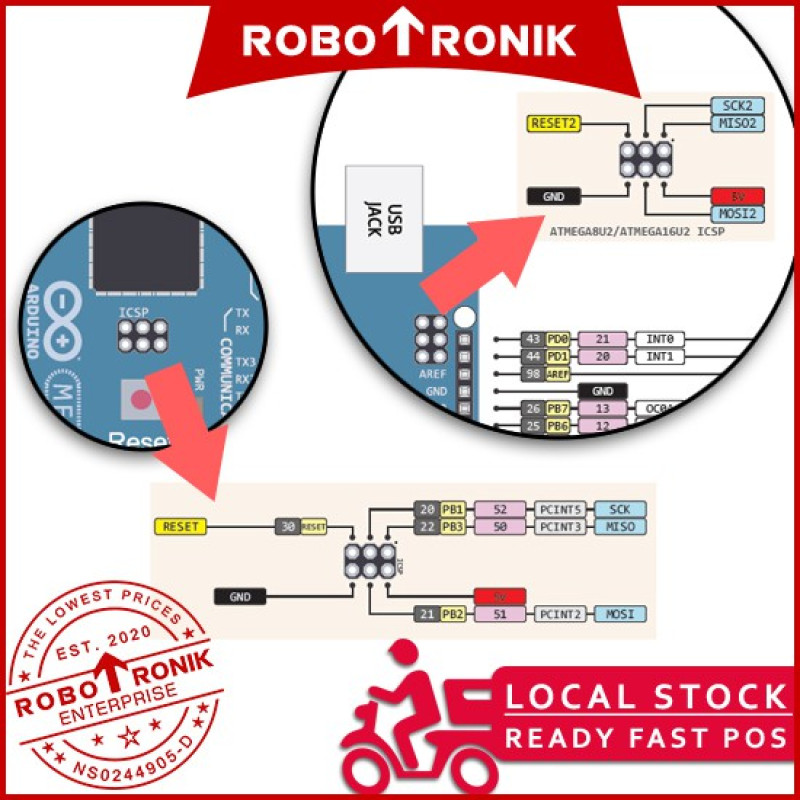

✍The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 Digital Input/Output Pins of which 15 can be used as PWM Outputs, 16 Analog Inputs, 4 UARTs Hardware Serial Ports, a 16 MHz Crystal Oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.


- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -
✍Features

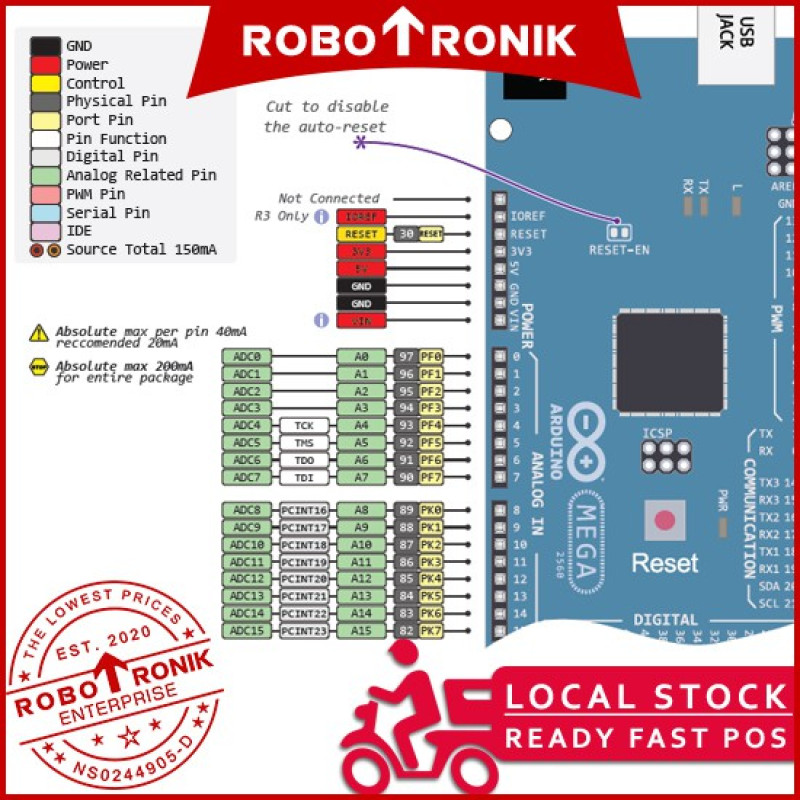

Pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
Stronger RESET circuit.
Atmega 16U2 replace the 8U2.

===========================================

▼ Specifications
Microcontroller: ATmega2560
Input Voltage (recommended): 7 – 12V
Input Voltage (limits): 6 – 20V
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
Pins
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Product size: 10.3 * 5.4 * 1.2cm / 4.1 * 2.1 * 0.5in
Product weight: 35g / 1.2oz
