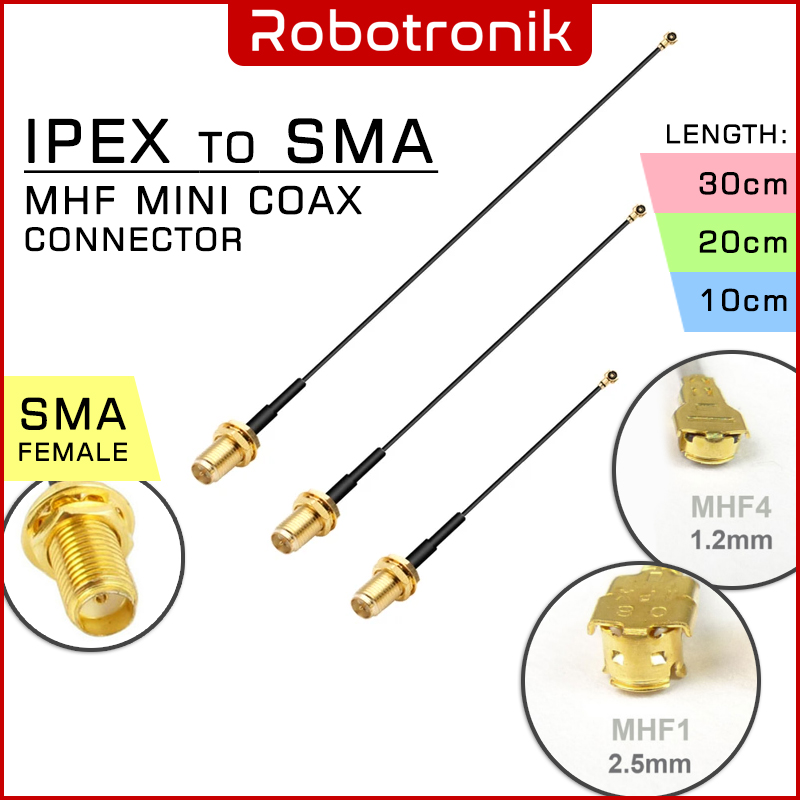

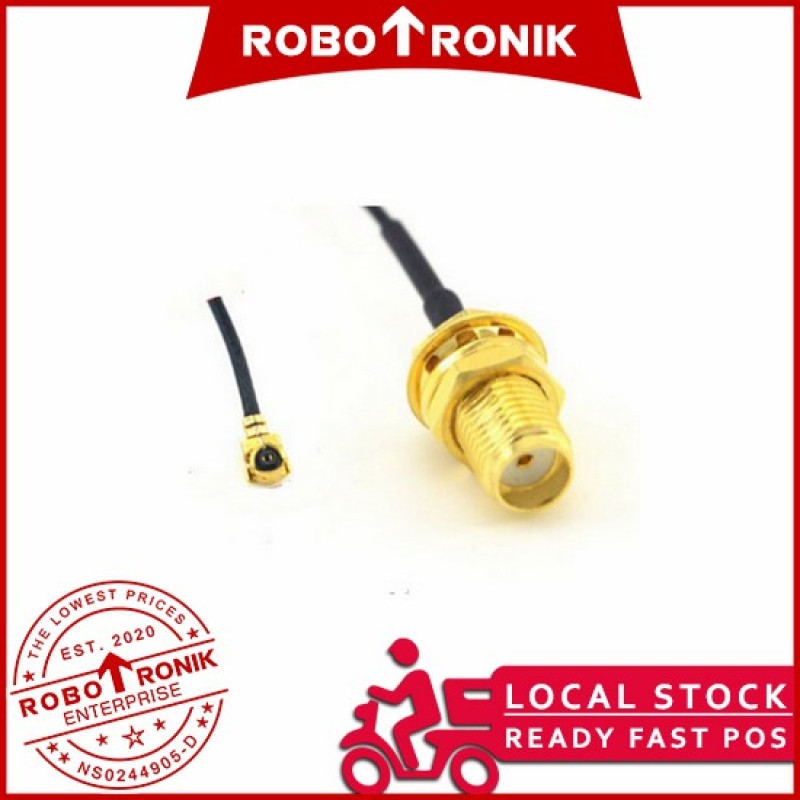

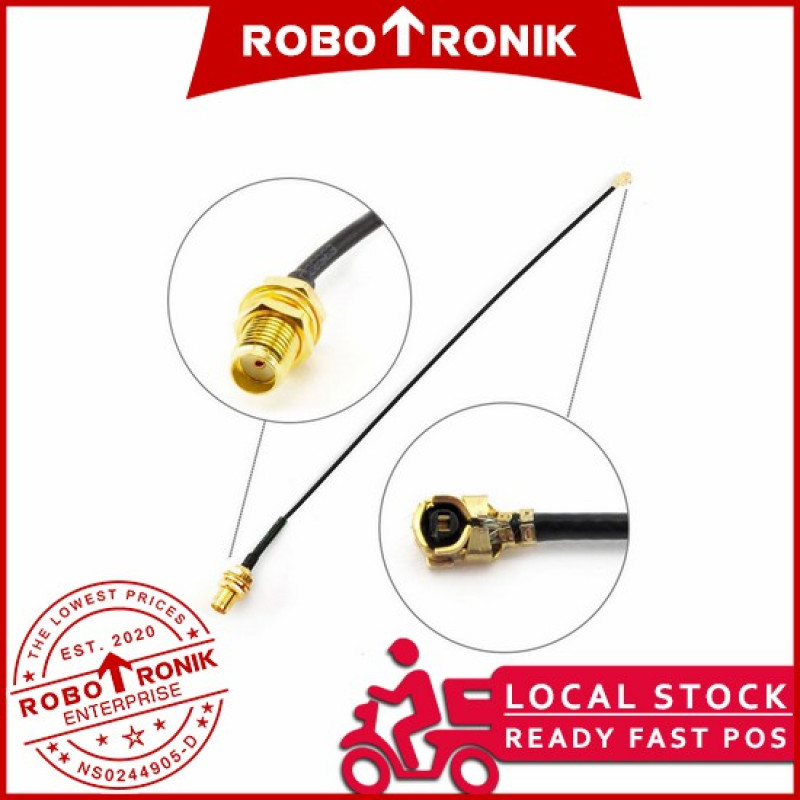

IPEX to SMA [Female] Connector Cable - (uFL / u.FL / IPX / IPEX / IPX / MHF / AM) Antenna WIFI / GSM / 4G / GPS

✍ This RF adapter cable is super handy for anyone doing RF work. Often times, small electronics save space by having a pick-and-placeable u.FL connector (also called uFL, IPEX, IPAX, IPX, MHF, and AM). But most antennas have SMA or RP-SMA connectors on them. This little cable will bridge the two!

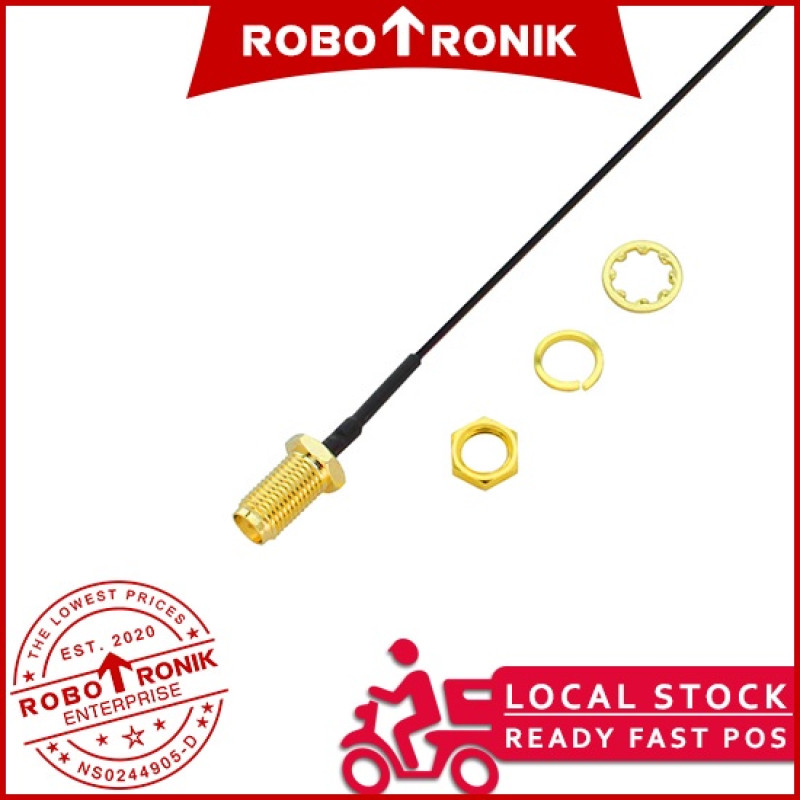

✍ This cable is RG178 and is 15cm long not including the SMA connector. It has a panel-mount SMA connector on the end, often used for GPS and cellular connections. Most WiFi devices/routers that have a connector use RP-SMA. Check the antenna you want to connect, and the close up image above to verify if you need RP-SMA or SMA as they are not compatible!

▼ Specification:

Impendence:50 ohm
Connector 1: SMA Female straight

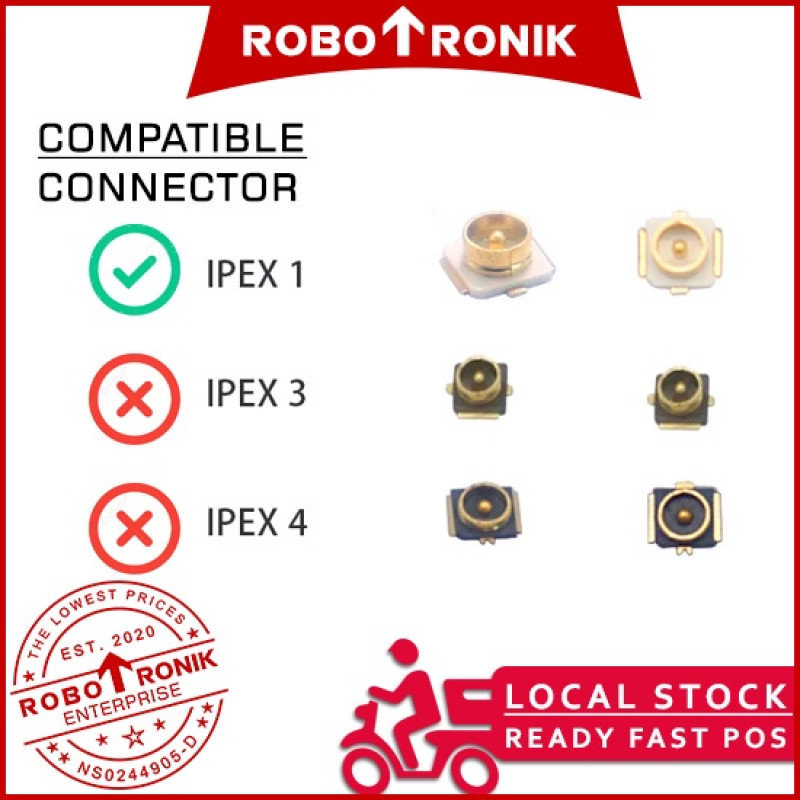

Connector 2: IPEX Connector (uFL, U.FL , IPEX, IPAX, IPX, MHF, and AM)

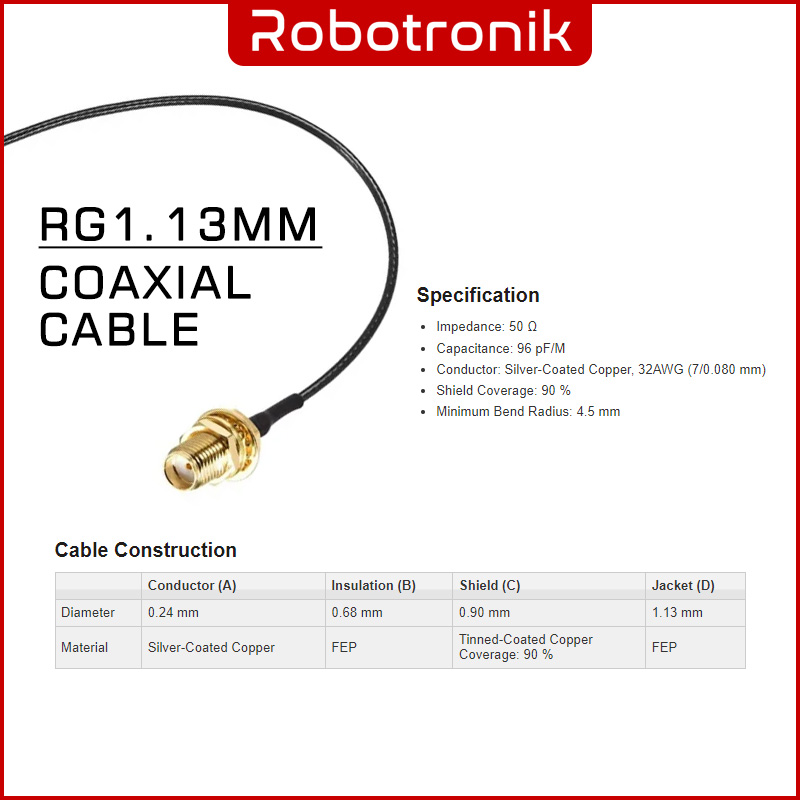

Cable type:1.13
Frequency range: DC / 3GHz
Voltage withstand: 1000V maximum
Jacket spark voltage: 3000Vrms
Operating Temperature: -85 to 45°C
Waterproof Rate: Waterproof Rate

▼ Package Included
1 x Cable
