What is Heat Shrink Tubing?

Heat shrink tubing is a type of extruded plastic tubing that can be cut to size and fitted over a wire or cable joint to protect and insulate the connection. When heat is applied the tubing shrinks permanently providing a protective seal. The amount it shrinks depends on its shrink ratio. When you buy the tubing it is in its expanded state, this expanded tubing has a memory so when it is heated it returns to its original state. Larger shrink ratios are required to cover materials with a greater size variation.

How to use Heat Shrink Tubing

The diameter of the wire or cable is measured and the correct-sized heat shrink tubing is selected. A piece of the tube is cut to a size which is long enough to cover the connection or joint after heating. This then slides onto the wire. After the cable or wire has been joined the piece of heat shrink shrinkable tube is moved over the joint and heated with a heat gun until it shrinks and forms a tight wrapping around the joint

Features and Benefits of Flexible Polyolefin Heat Shrink Tubing

Flexible Polyolefin is a material derived from polyethylene and is one of the most commonly used insulating materials being both highly flexible, fast shrinking, and durable. When heated this polyolefin tube shrinks radially to a third of its original diameter hence the ratio of 2:1 Flexible Polyolefin tubing has the following properties:

▼ Description

• Material: Polyolefin
• Shrinkage Ratio: 2:1 (will maximum shrink to 1 / 2 of its supplied diameter)
• Tensile strength: 10.4 Mpa
• Dielectric strength: 15 kV / mm
• Flammability: Flame Retardant
• Cutting method: Scissors or sharp knife
• Standard: ISO9001
• Approvals: UL Approved

Package Included:

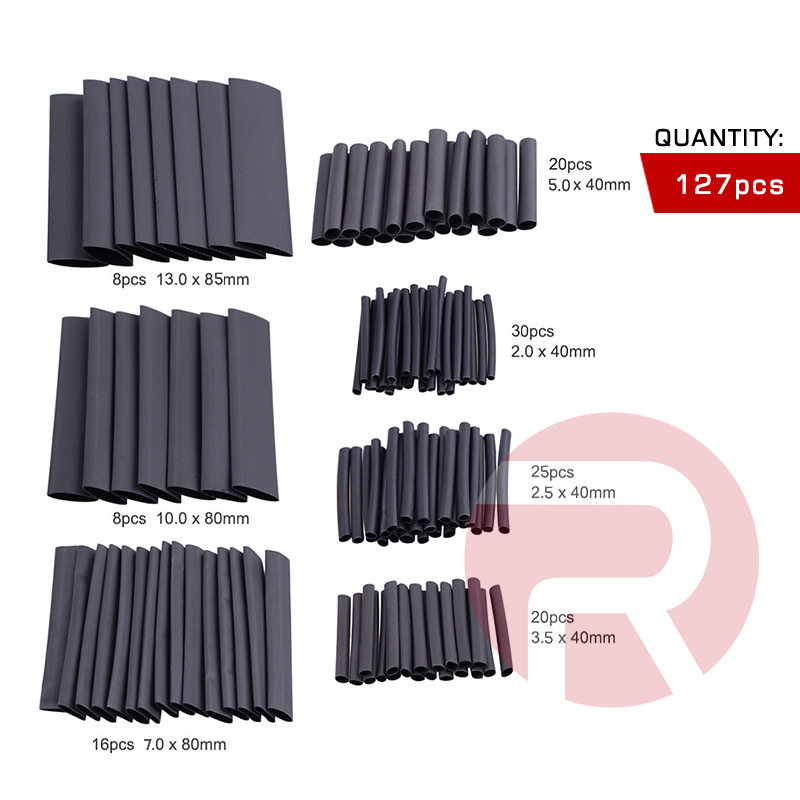

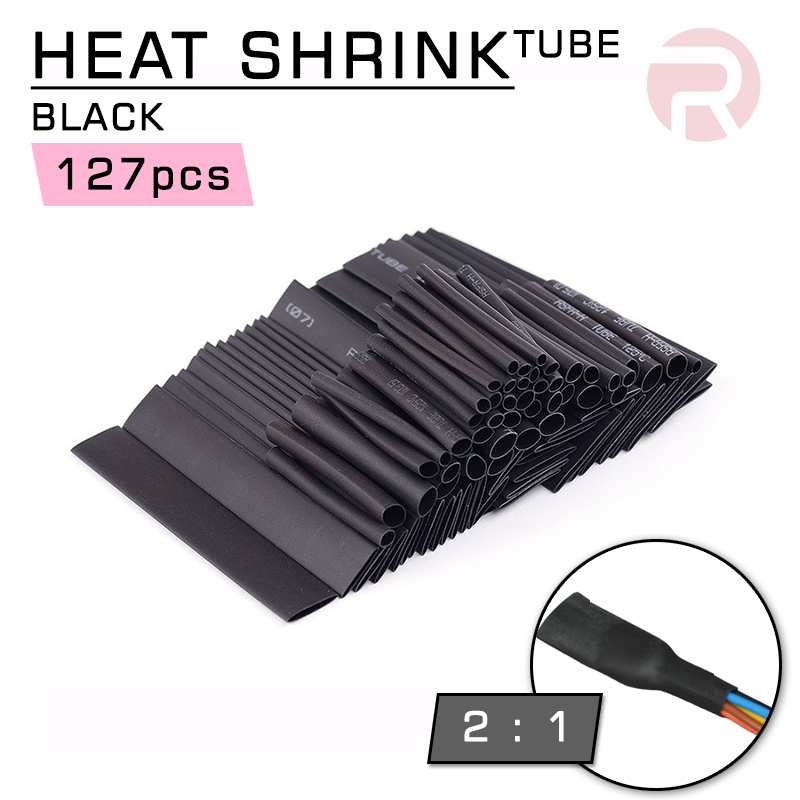

• 1 x Set of Heat Shrink Tube Black [127pcs]
