✍ A gear motor is an all-in-one combination of a motor and gearbox. The addition of a gear head to a motor reduces the speed while increasing the torque output. The most important parameters in regards to gear motors are speed (rpm), torque (lb-in) and efficiency (%). In order to select the most suitable gear motor for your application you must first compute the load, speed and torque requirements for your application.

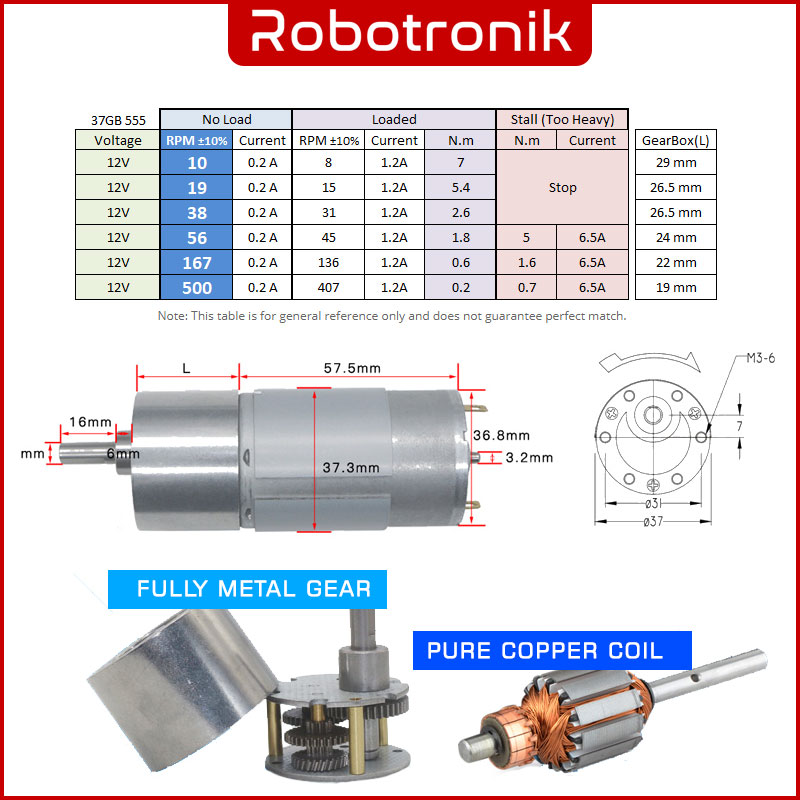

▼ Specifications:

• Rated voltage: 12V DC
• Rated Power: 30W
• Rated Current: 1A ±
• Reverse Rotation: Yes
• Shaft Size: 6mm x 16mm
• Mounting Hole: M3
• Weight: 315g (May vary with different speed gearbox)

Package Included

1 x Motor

* The lower rpm, the higher torque
