DC Step Down 60V, 10A.max Buck Converter Module - 3.3V 5V 9V 12V 24V 32V 48V
DC Step Down 60V, 10A.max Buck Converter Module - 3.3V 5V 9V 12V 24V 32V 48V
DC Step Down 60V, 10A.max Buck Converter Module - 3.3V 5V 9V 12V 24V 32V 48V
DC Step Down 60V, 10A.max Buck Converter Module - 3.3V 5V 9V 12V 24V 32V 48V
DC Step Down 60V, 10A.max Buck Converter Module - 3.3V 5V 9V 12V 24V 32V 48V
DC Step Down 60V, 10A.max Buck Converter Module - 3.3V 5V 9V 12V 24V 32V 48V

DC Step Down 60V, 10A.max Buck Converter Module - 3.3V 5V 9V 12V 24V 32V 48V

RM21.99


  • Product Code: POWER-STEP-DOWN-60V-10A
Qty

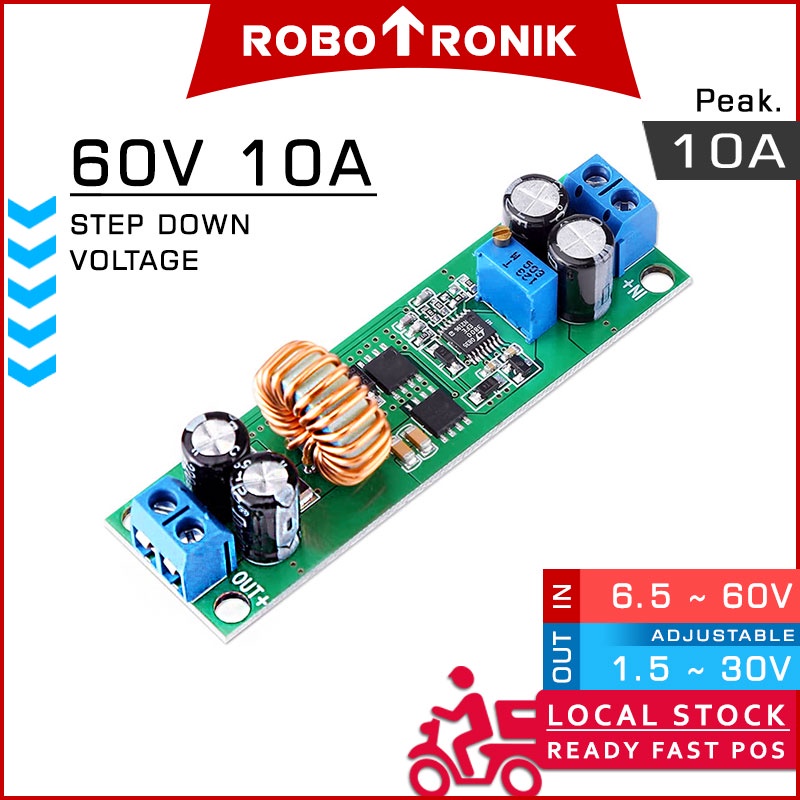

✍ This is a DC-DC step down converter module that convert 6.5V-60V to 1.25-30V, maximum current is 10A, provides a suitable voltage for electronic products through the step-down board.
Widely used for low voltage system power supply, 6V, 12V, 14V, 24V battery charging and regulated power supply.
Buck converter module is used for voltage step-down so please make sure that input voltage is higher than output voltage.
The voltage step down converter board can be remarkably efficient (maximum 97%), making it useful for voltage step-down.

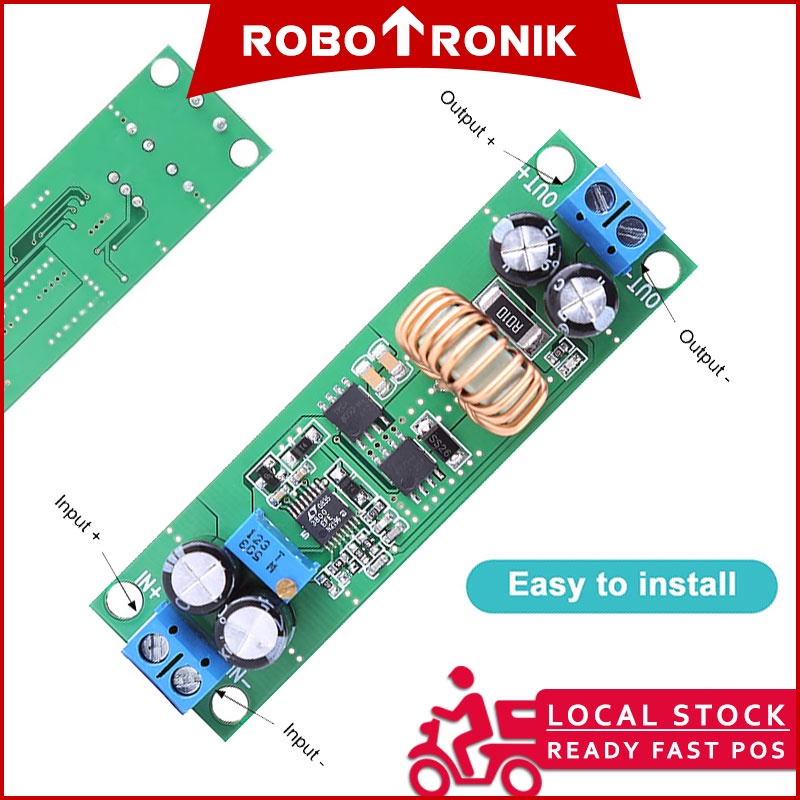

Input and output are designed with screw terminals for convenient connection.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Specifications:

  • Input: 6.5V - 60V DC
  • Output: 1.25V - 30V (adjustable)
  • Load capacity: 10A (maximum); Continues: N/A
  • Efficiency: 97% (maximum)
  • Operating Temperature: -40℃~+85℃

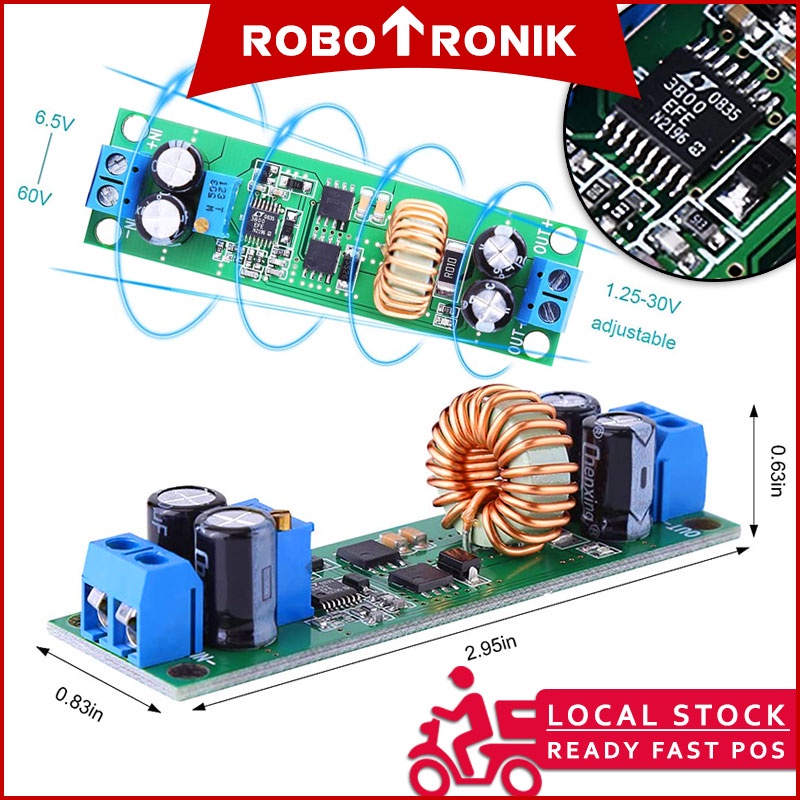

  • Module: 75*21*16mm


▼ Review:
https://lygte-info.dk/review/Converter%20DC-DC%2010A%206.5-60V%20to%201.25-30V%20UK.html

▼ Package Includes:
1 x Step Down Voltage Module

Voltage Converter
Input Minimum (Voltage) 6.5
Input Maximum (Voltage) Less than 60
Output Minimum (Voltage) 1.25
Output Maximum (Voltage) Less than 30
Output Load Current (A) 8
Output Load Max. Current (A) Heat-Sink Required 10
