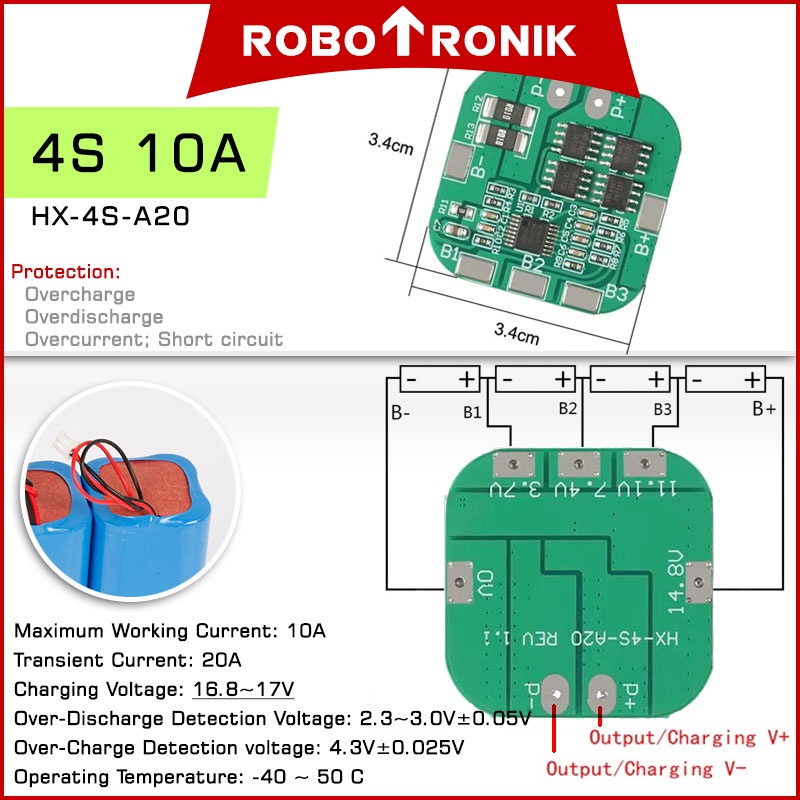

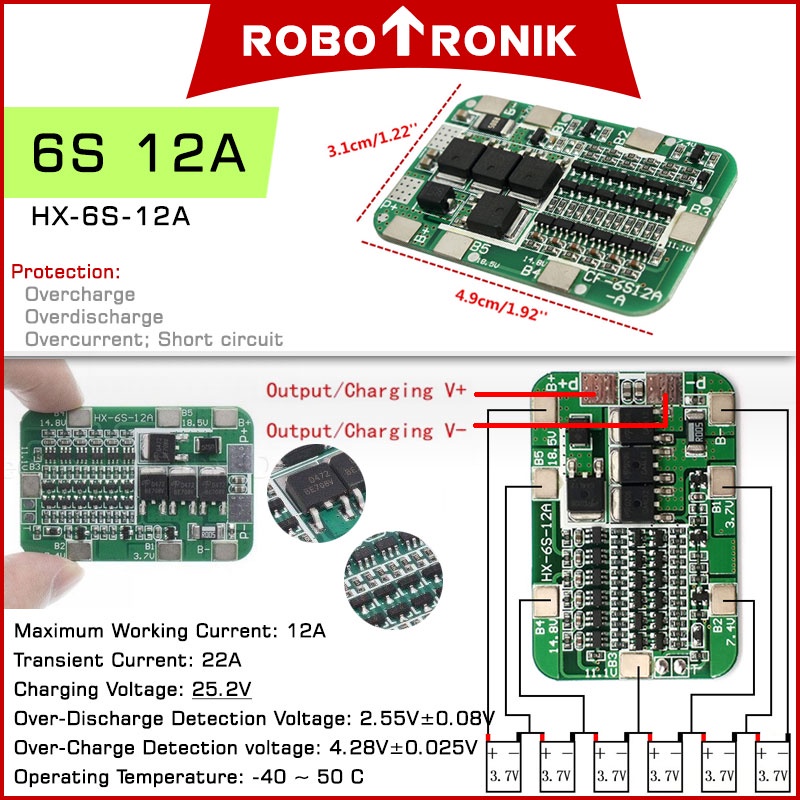

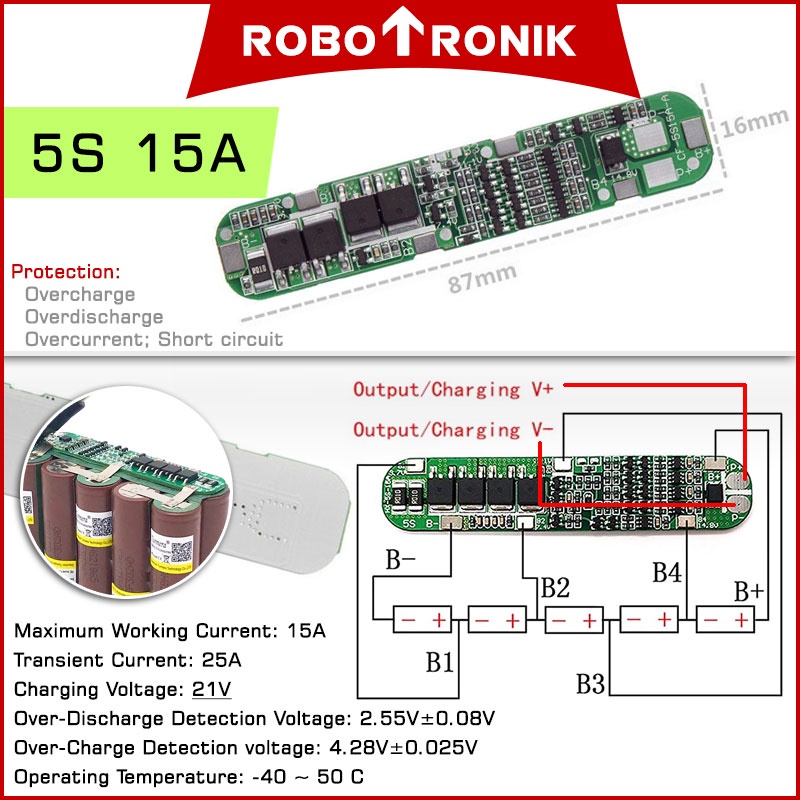

BMS (Battery Management System) Li-ion Lithium Polymer LiPo Protection MOS Module Board 18650 14.8V 18.5V 4S 5S 6S
RM19.28 ~ 26.98
- Product Code: A=3-B-156+
- Category:
- Battery & Charger / Holder
Description:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
4) MOS transistor can control the battery charge and discharge.
Note:
The BMS is used for 3.7V li-ion battery without balancing function
Q: I'm not getting a voltage reading between P- and P+
A: Connect a charger or power supply to the BMS and feed it at least 12~12.6V for 1-3 seconds and then try again
Package Included:
1x BMS
#DIYMORE #1S #3.7V #18650 #MOS #Li-ion #Lithium #Battery #Charging #BMS #Protection #Board
