✍ A stepper motor is a special type of brushless DC motor. Electromagnetic coils are arranged around the outside of the motor. The center of the motor contains an iron or magnetic core attached to a shaft.

✍ Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted.


Please Notice: This shaft is 5mm in diameter.

▼ Applications:

• Printers
• CNC machines
• 3D printer/prototyping machines (e.g. RepRap)
• Laser cutters
• Pick and place machines
• Linear actuators

▼ Features :

• Two-phase 4 lead wires bipolar stepper

▼ Specifications :

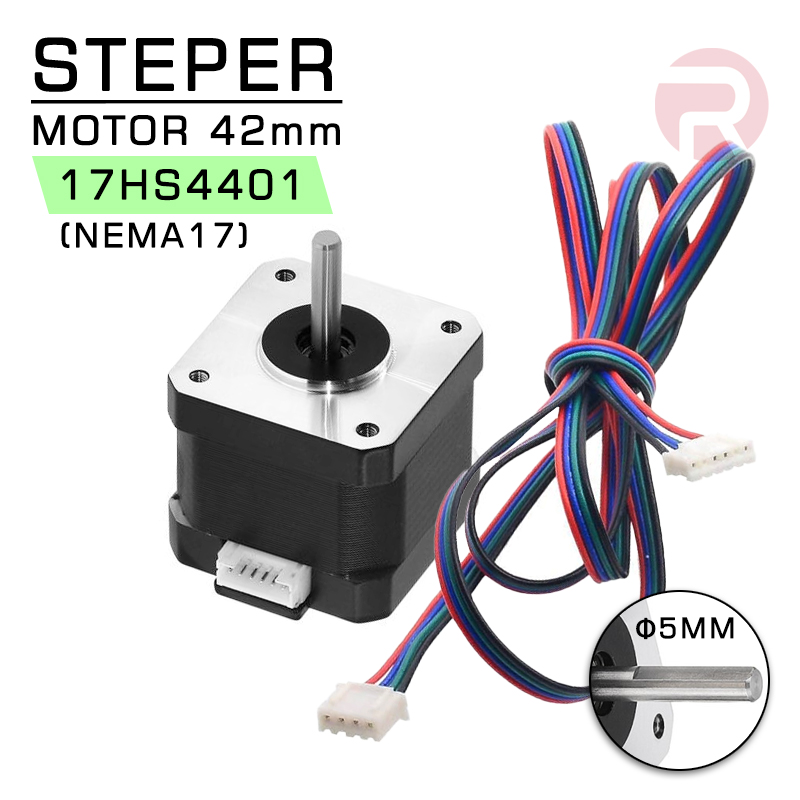

• Model: 17HS4401
• Size: NEMA17
• No. of Phase: 2
• Lead Wires: 4
• Rated Phase Current: 1.5A
• Phase Resistance: >2.4Ω
• Phase Inductance: 3.7mH
• Rated Voltage: 3.6V DC
• Step Angle: 1.8 Degree ±0.09%
• Speed: Various Speed (Low speed)
• Holding Torque: 0.42N.m
• Shaft Radial force: 57.3g/cm
• RPM: 1500pps

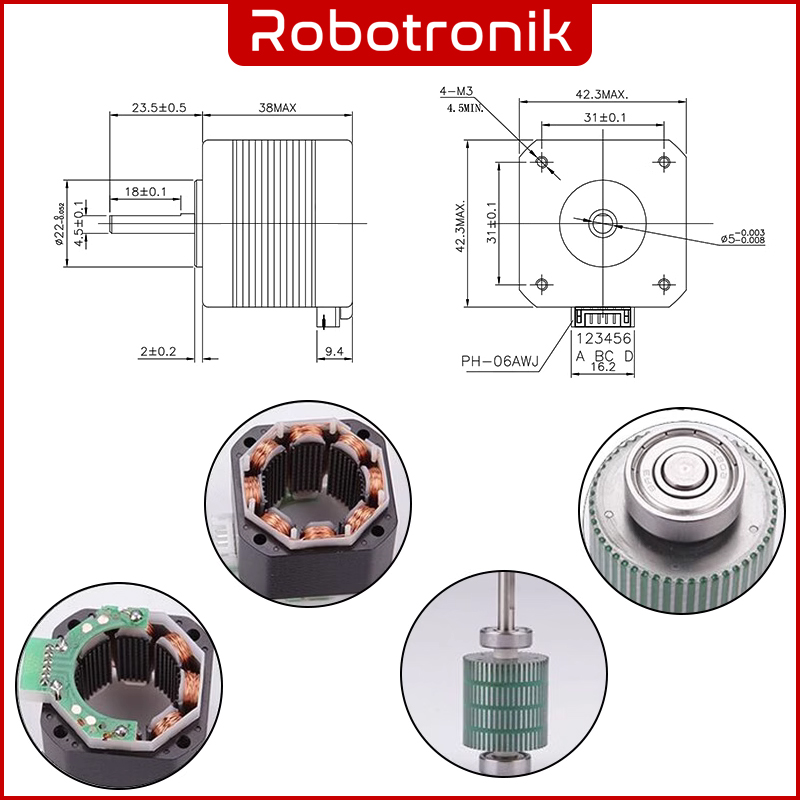

• Shaft: ∅5mm D-Shape
• Wire length: 50cm
• Frame size: 42mm x 42mm
• Weight: 255g
