• TD-8320MG [Waterproof] High-Torque Digital Servo Motor , max 20KG per cm
0 reviews / Write a review

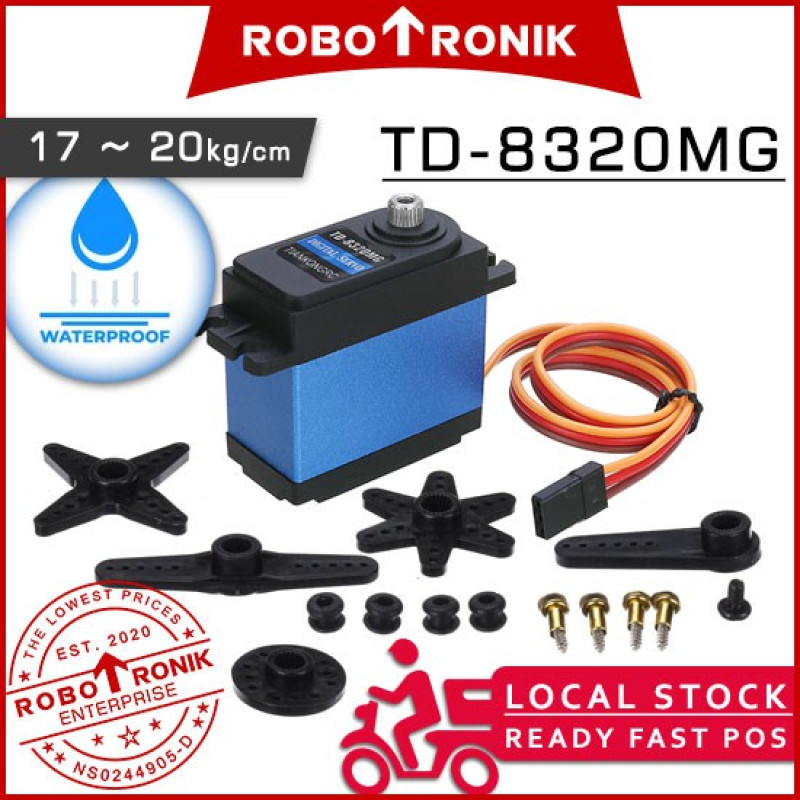

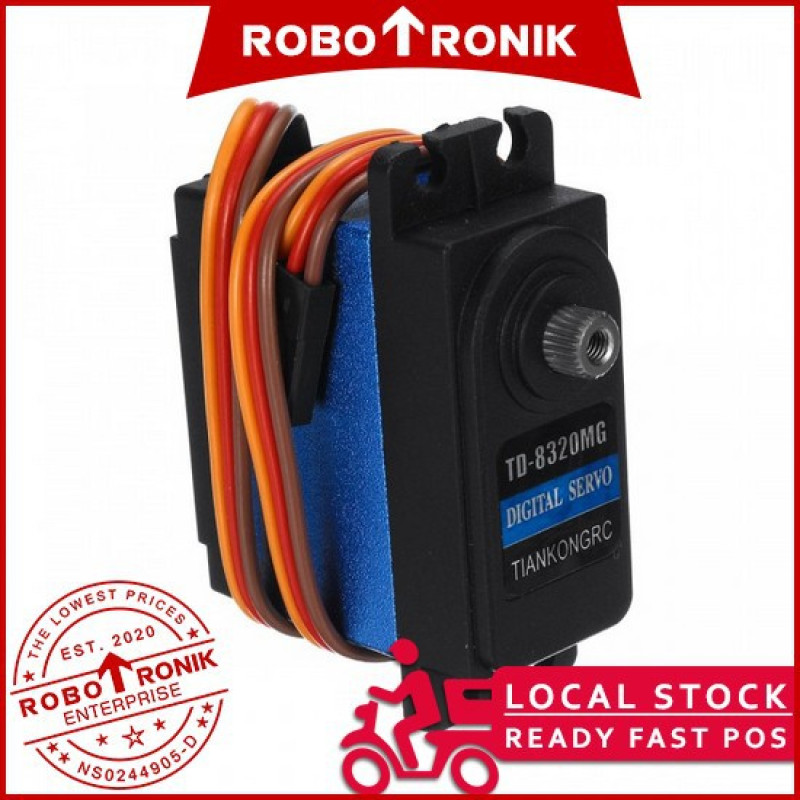

TD-8320MG [Waterproof] High-Torque Digital Servo Motor , max 20KG per cm

  • Code: A=6-B-011+
  • Availability: 15

  • RM49.99 ~ 53.99


▼ Specification :

  • Bearing Type: Ball bearing x 2
  • Waterproof: Yes
  • Operating Voltage : 4.8 ~ 6.6V DC
  • Current (No-Load): 210mA(4.8V) ~ 260mA(7.2V)
  • Current (Stall): 2A
  • Operating Speed : 0.19sec (4.8V)
  • Operating Speed : 0.17sec (6.6V)
  • Stall Torque : 17.2 kg-cm at 4.8V
  • Stall Torque : 20.5 kg-cm at 6.6V
  • Maximum PW: 1520μs / 333hz
  • Temperature Range : 0 ~ +55℃
  • Servo Type : Digital Servo
  • Gear Type: Copper& Aluminum



===========================================

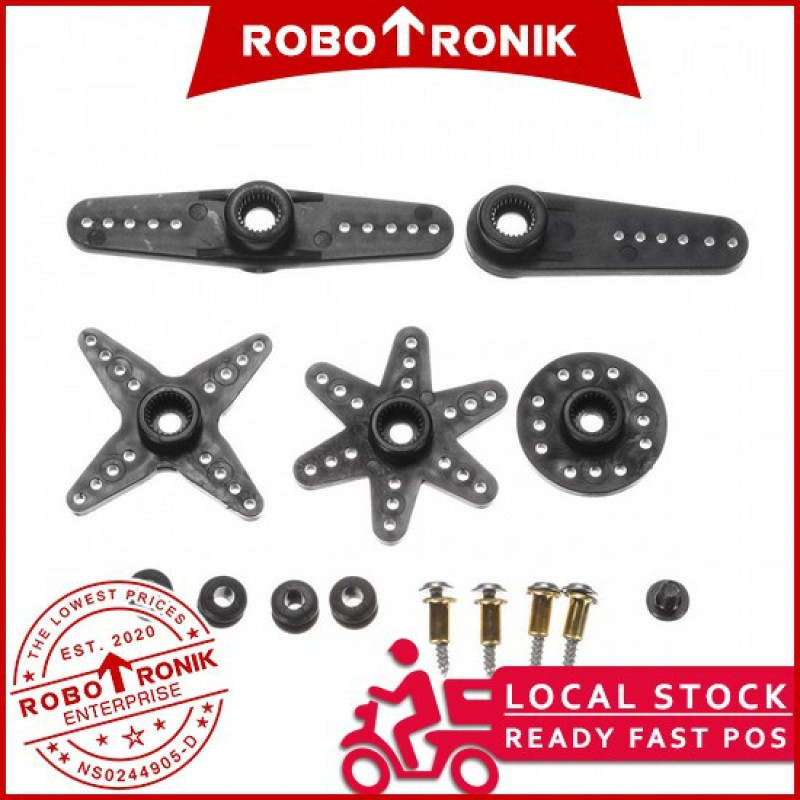

▼ Package Included:
1 x Servo Motor
5 x Robotic Arm & Horn
13 x Screws & Accessories

▼ The wire colors are :
Red = Battery(+)
Brown = Battery(-)
Orange = Signal
