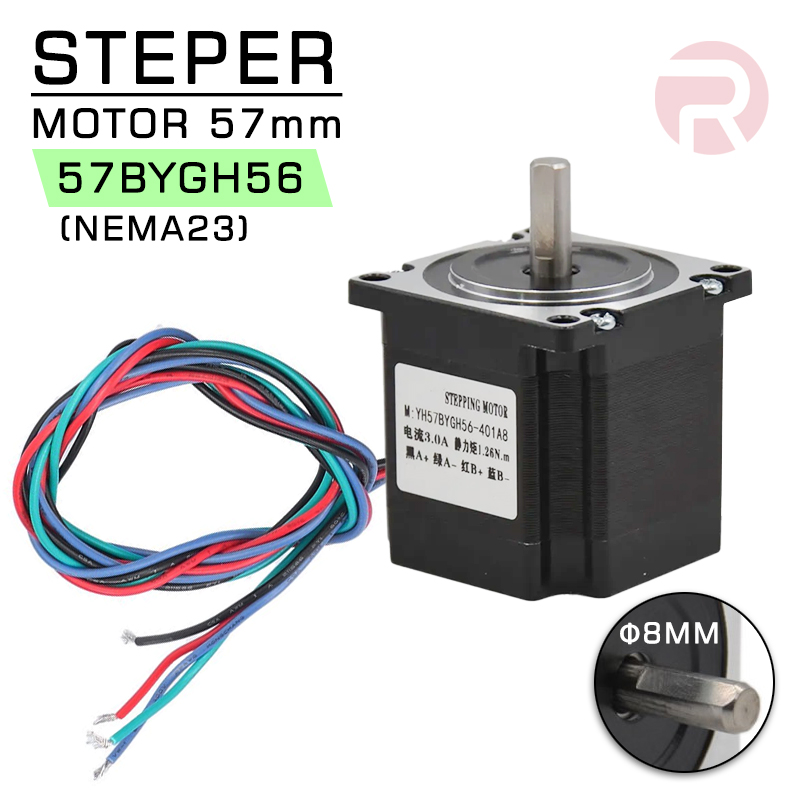

This is one of the most popular Nema 23 Form stepper motors, with a step angle of 1.8deg and size 57x57x56mm. It has 4 wires, and each phase draws 3A, with a holding torque 1.2Nm

Please Notice: This shaft is 8mm in diameter.

▼ Applications

• 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
• Packaging Machinery, Stage Lighting, Laser engraving, Automation
• Equipment, Non-standard Equipment, Placement machine ect.

▼ Features:

• Low noise.
• Low heat.
• Smooth operation.
• Good acceleration performance.

▼ Specification:

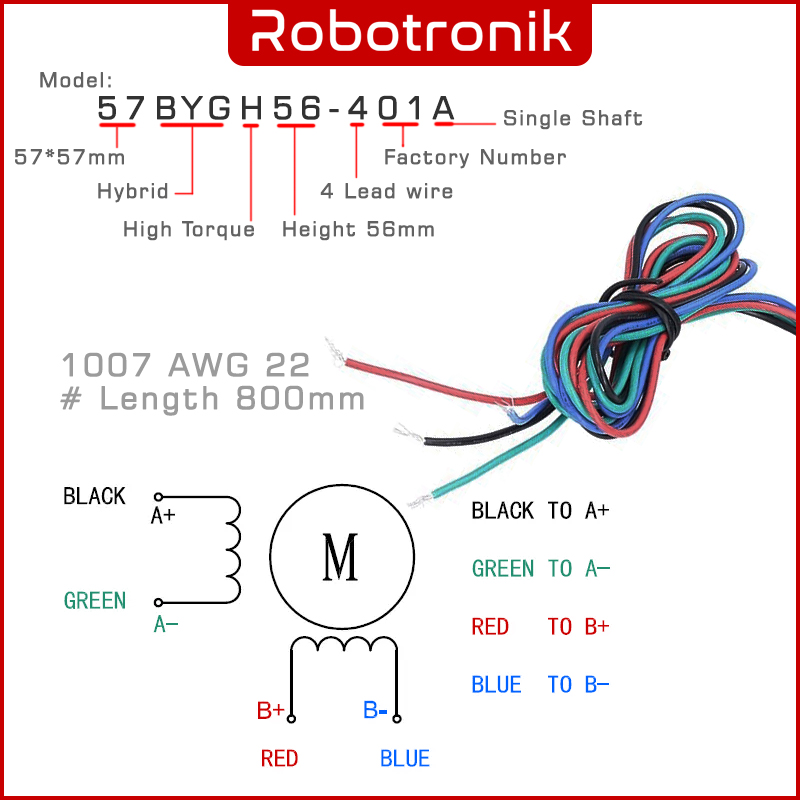

• Model: 57BYGH56-401A
• Size: NEMA 23
• No. of Phase: 2
• Lead Wires: 4
• Rated Phase Current: 3A
• Phase Resistance: 0.9Ω
• Phase Inductance: 2.5mH
• Step Angle: 1.8 Degree

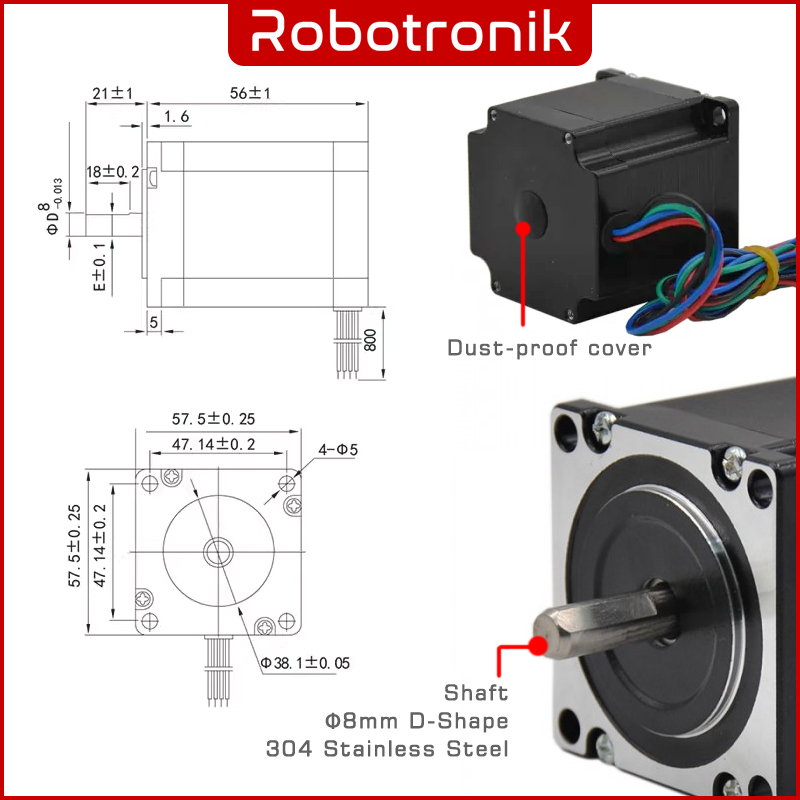

• Shaft: ∅8mm D-Shape
• Rated Voltage: 24V DC
• Working Voltage: 12 ~ 36V DC
• Holding Torque: 1.2N.m
• Shaft Radial force: 300g/cm
• RPM: 1000rpm (No load); <600rpm (Load)
• Wire length: 80cm
• Frame size: 57mm x 57mm
• Weight: 710g

▼ Package Included:

1 X Stepper Motor with 4 pin cable
