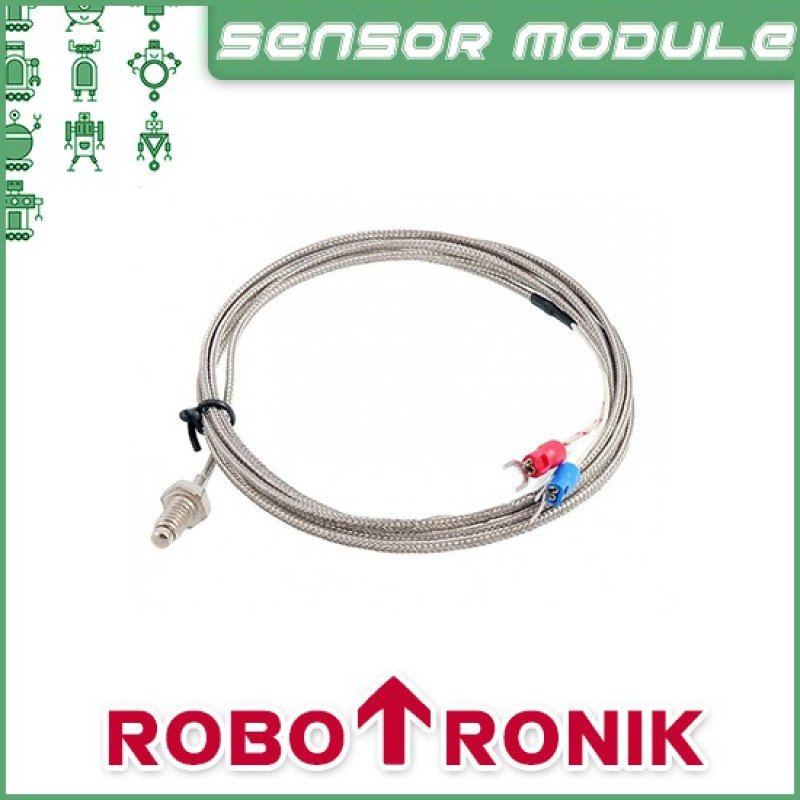

✍ This thermocouple is designed with fork terminals. Specially designed for digital thermometer which has k type sensor, suitable for measuring liquid or others high-temperature applications. The MAX6675 performs cold-junction compensation and digitizes the signal from a type-K thermocouple. The data is output in a 12-bit resolution, SPI™-compatible, read-only format.

▼ Features :
High impedance differential inputs.
Thermocouple break detection.
2000V of ESD signal.
Embedded thermocouple break detection circuitry.
Compatible with K-type temperature probe
Simple SPI serial output temperature.
The internal integrated cold junction compensation circuit
Temperature signals can be converted into 12-bit digital.

▼ Specification:
Easy installation
Working Voltage: DC 5V
Operating Current: 50mA
Probe temperature measurement range: 0° ~ 600 °C ± 1.5 °C
Probe length: 500mm
Resolution: 0.25 °C
Output Mode: SPI digital signal
Weight: 4g
Size: 25mm * 15mm * 13mm

▼ Package included :

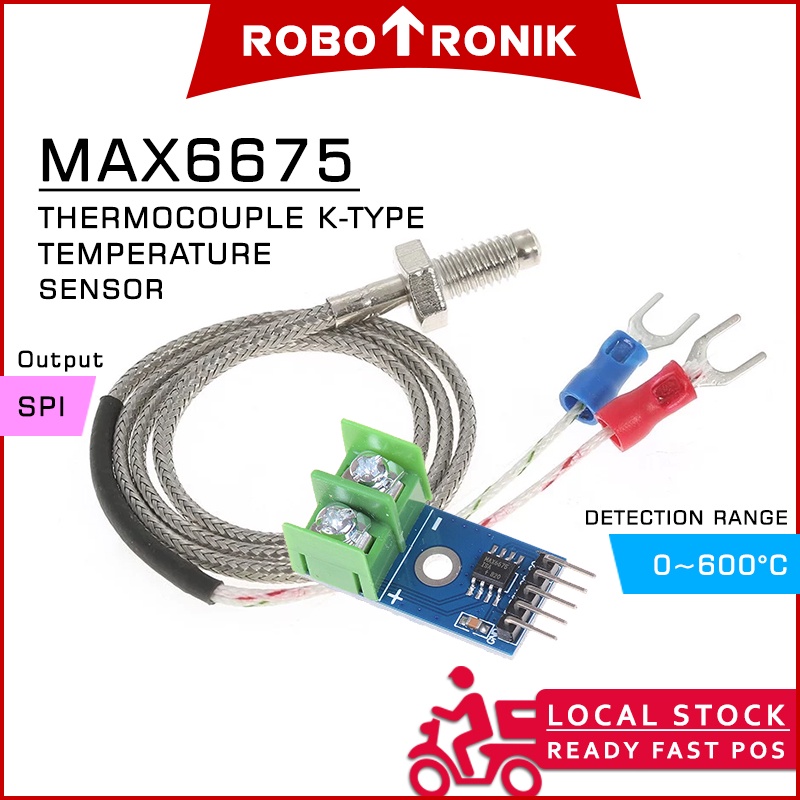

1 x MAX6675 Module
1 x K Type Thermocouple Sensor Probe

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
