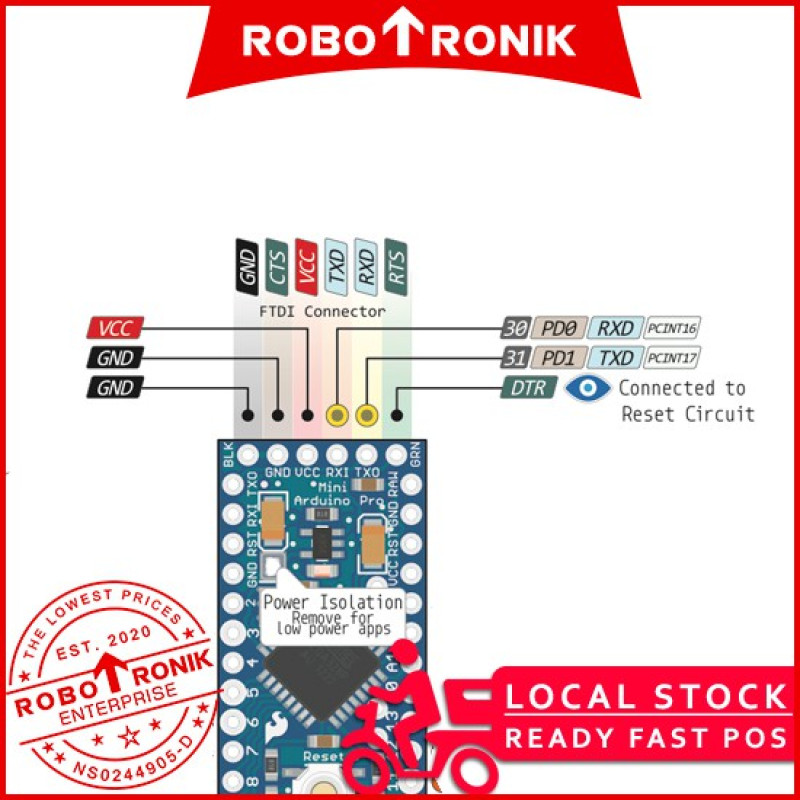

✍The Arduino Pro Mini is a microcontroller board based on the ATmega328p. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to a USB to serial adapter to provide USB power and communication to the board.

✍The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features
ATmega328 running at 8MHz/16mhz with external resonator (0.5% tolerance)
USB connection off board
On board Power and Status LEDs
Supports auto-reset
Over current protected
3.3V/5.0 regulator
Max 150mA output
Analog Pins: 8
Digital I/Os: 14
Dimensions: 18 x 33mm
0.8mm Thin PCB
Weighs less than 2 grams

▼ Package Included

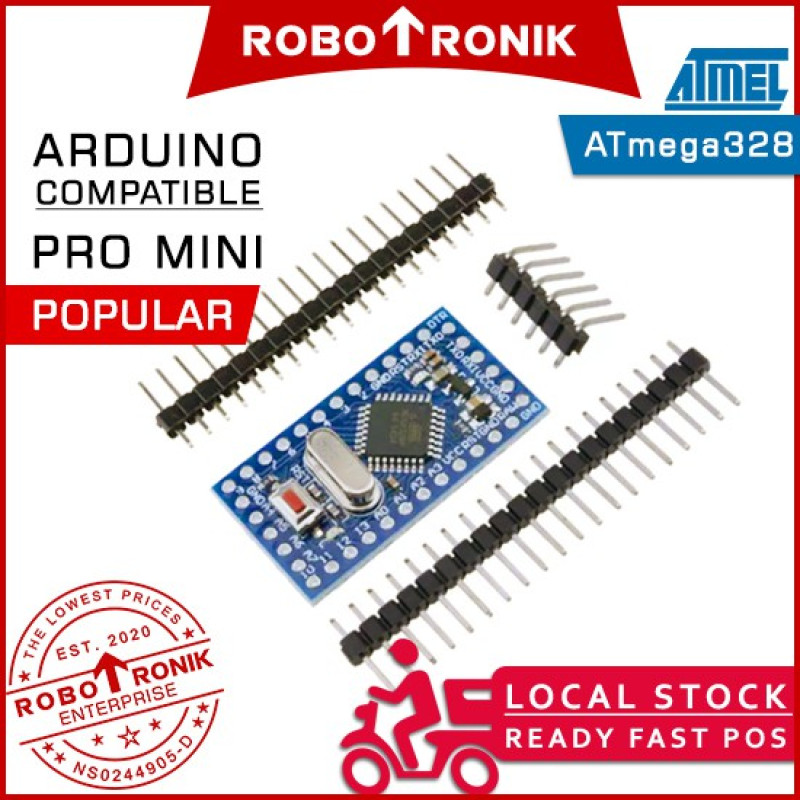

1 x Pro Mini
Pins Header
