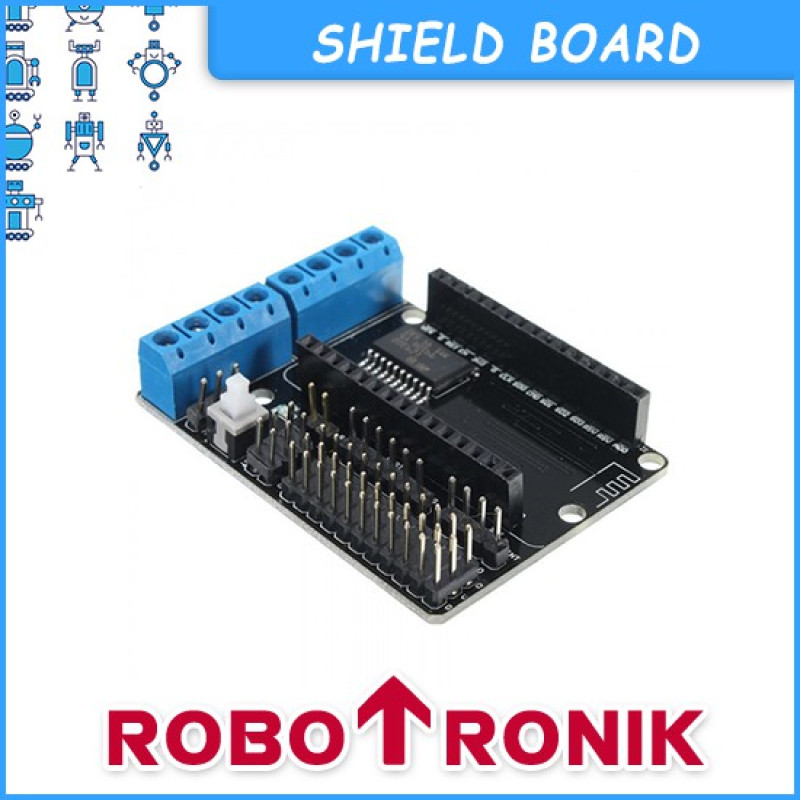

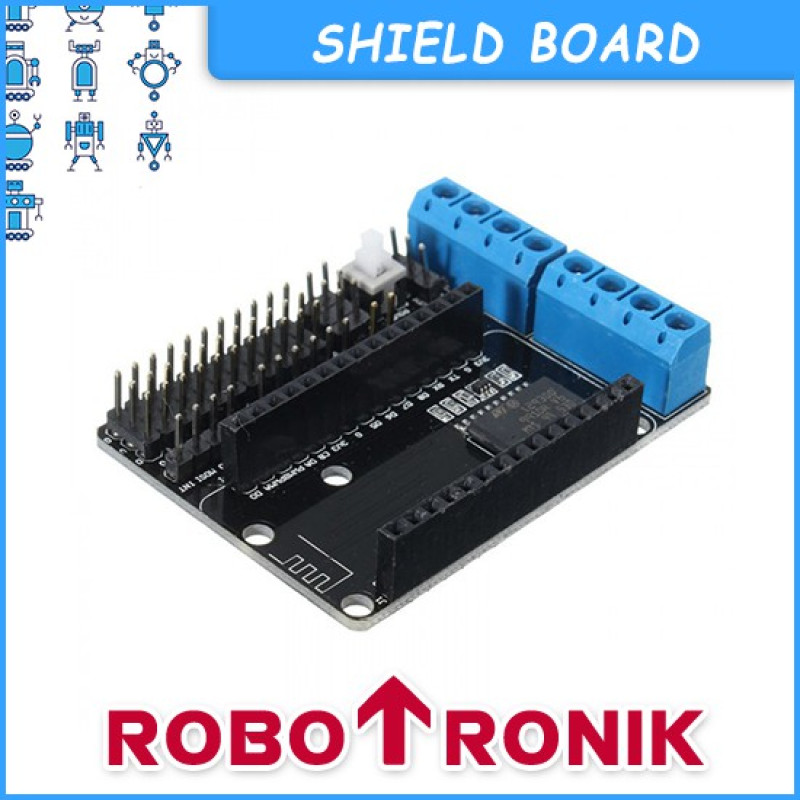

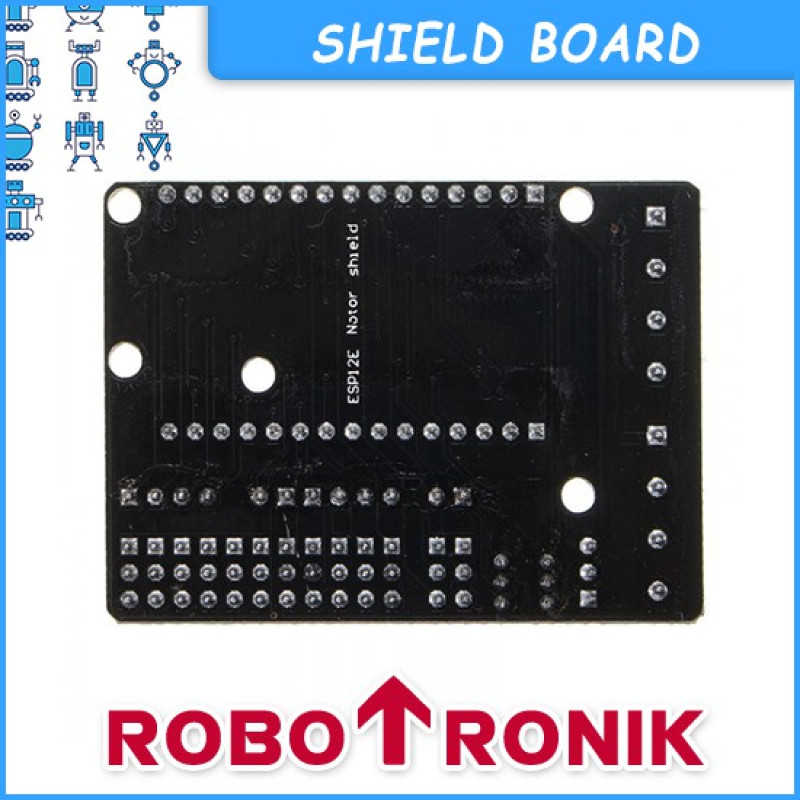

✍ This shield board is driven by the special large power full-bridge chip L293DD which can directly drive 2-channels DC motors or one-channel stepper motor. The driven current can be arrived at 1.2A. In this motor shield board, the IO port of ESP-12E Dev Kit is used as the control port. The logic chip configured inside can finish IC driven. Thus, the shield board has four ports: D1, D2, D3, and D3, which are used as PWMA(motor A), PWMB (motor B), DA (direction of motor A), and DB (direction of motor B), respectively.

✍ In addition, this shield board has many pins, such as VIN, 3.3V, DIO, AIO, SDIO, UART, SPI, RST, and EN, thus can conveniently connect all kinds of sensors (e.g., temperature and humidy, buzzer, light, relay sensor, etc.).

✍ The board is developed by the humanized design with a power switch, and thus user can control the on-off of power conveniently.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features :-

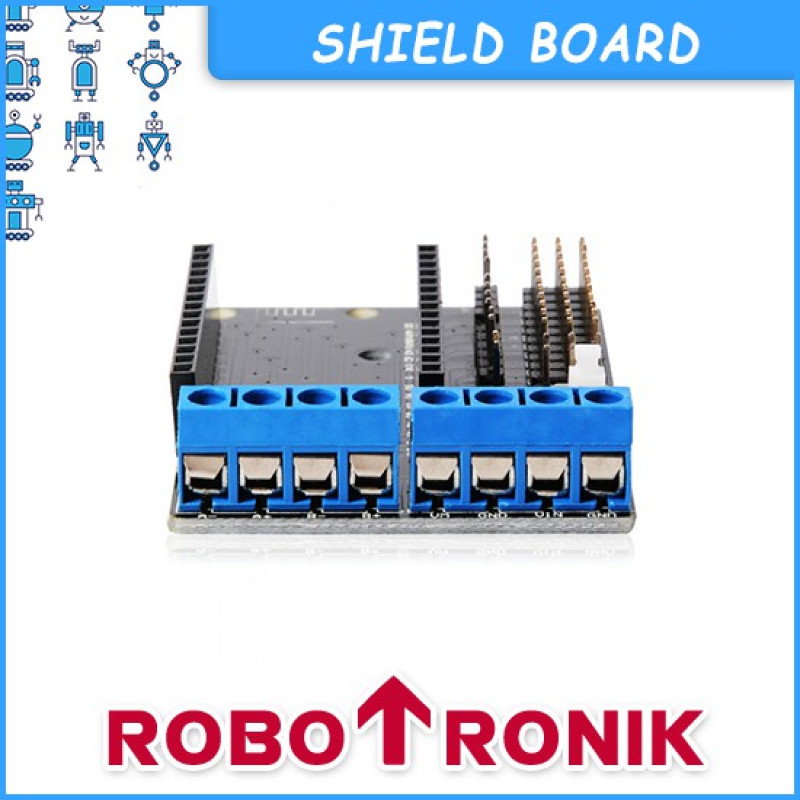

On Board motor drive L293DD IC, support to drive two channels of DC motors via screw terminals
Module provides short-circuit sub (short the VM and VIN), can easily use one power (which must be 4.5V ~ 9V) simultaneously drive and control the motor
Drive Type: Dual high-power H-bridge driver
Support wireless 802.11 b / g / n standards
Support STA / AP / STA + AP three operating modes
Built-in TCP / IP protocol stack to support multiple TCP Client connection (5 MAX)
D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
AD0: 1 Road ADC
Support UART / GPIO data communication interface
Remote firmware upgrade (OTA)
Smart Link supports intelligent networking capabilities
It can work at many modes, such as: AP mode and STA mode


▼ Specifications :-
Motor power supply (VM): 4.5V ~ 36VDC
Control power (VIN): 4.5V ~ 9V (10VMAX)
Working current: ≤1.2A max each channel
Maximum power dissipation: 4W
Current
Continuous transmission: ≈70mA (200mA MAX)
Standby: <200uA
Transfer rate: 110-460800bps
Control signal input level
High: 2.3V ≤ VIH ≤ VIN
Low: -0.3V ≤ VIL ≤ 1.5V
Working temperature: -25 ℃ ~ + 125 ℃

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
