✍ The NodeMcu is an open-source firmware and development platform that helps you to prototype your IOT product with just a few lines of Lua script. The Arduino-like hardware IO with advanced API will dramatically reduce the redundant work for configuring and manipulating hardware. Basically you can code like Arduino, but interactively in Lua Script.

✍ Arduino-like hardware IO

Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.

Code like arduino, but interactively in Lua script.

✍ Nodejs style network API

Event-driven API for network applicaitons, which faciliates developers writing code running on a 5mm*5mm sized MCU in Nodejs style.

Greatly speed up your IOT application developing process.

✍ Lowest cost WI-FI

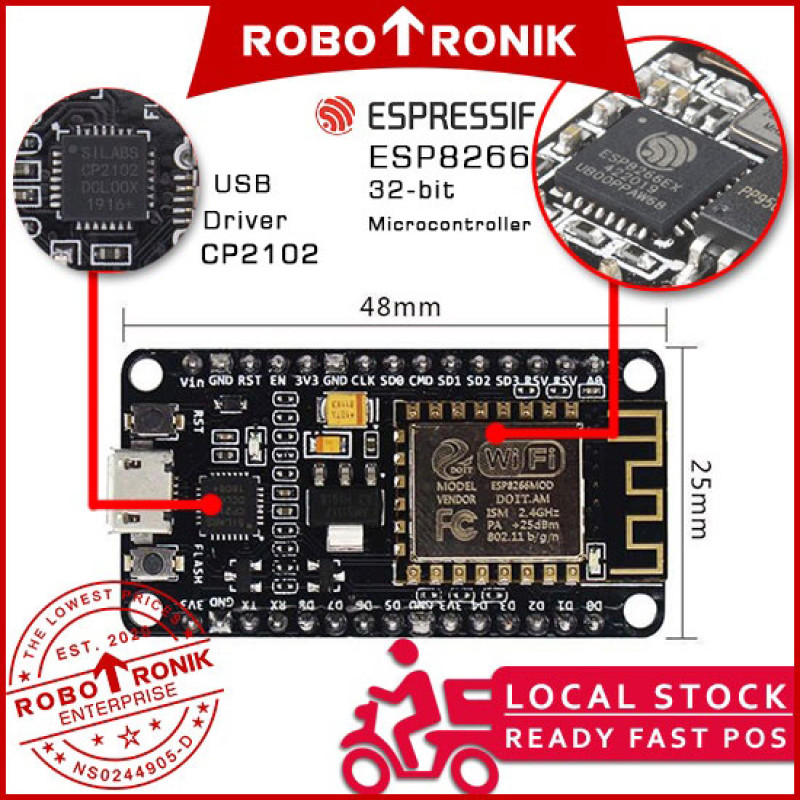

On-board ESP8266, a low-cost WiFi-MCU Module integrated and easy to prototyping development board. The best platform for IOT application development at the lowest cost.

The Development board based on ESP8266, integrates GPIO, PWM, IIC, 1-Wire and ADC all in one board. Power your development in the fastest way combining with NodeMCU Firmware!

▼ Features :

• CP2102 USB Driver
• Open-source platform
• Interactive & Programmable
• WiFi enabled
• Arduino-like Hardware IO
• Nodejs style network API
• ESP8266, a low cost WiFi module on-board (FCC Certified)
• On-board USB-TTL converter, plug & play

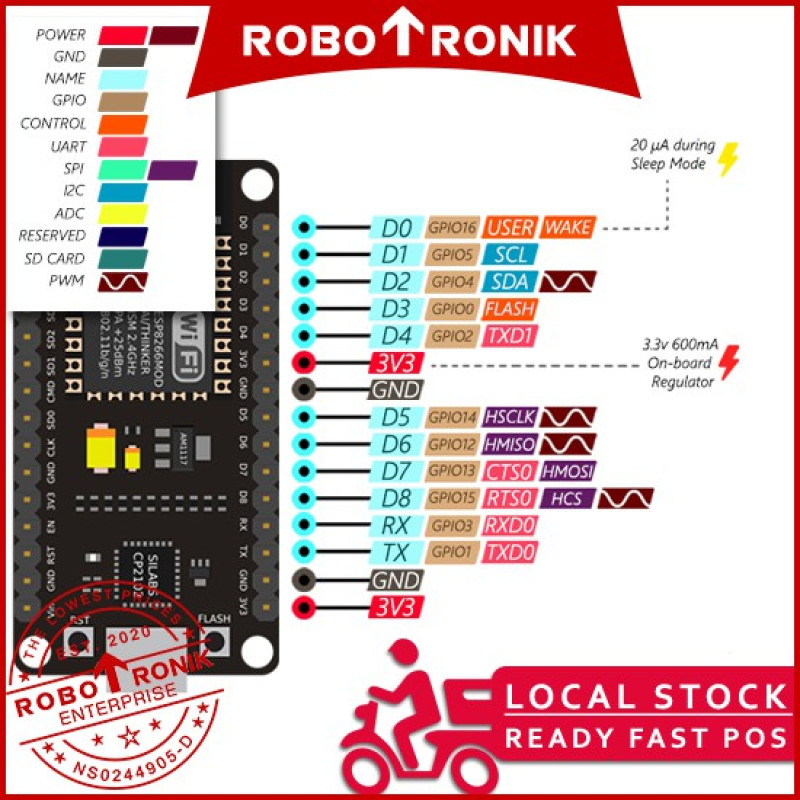

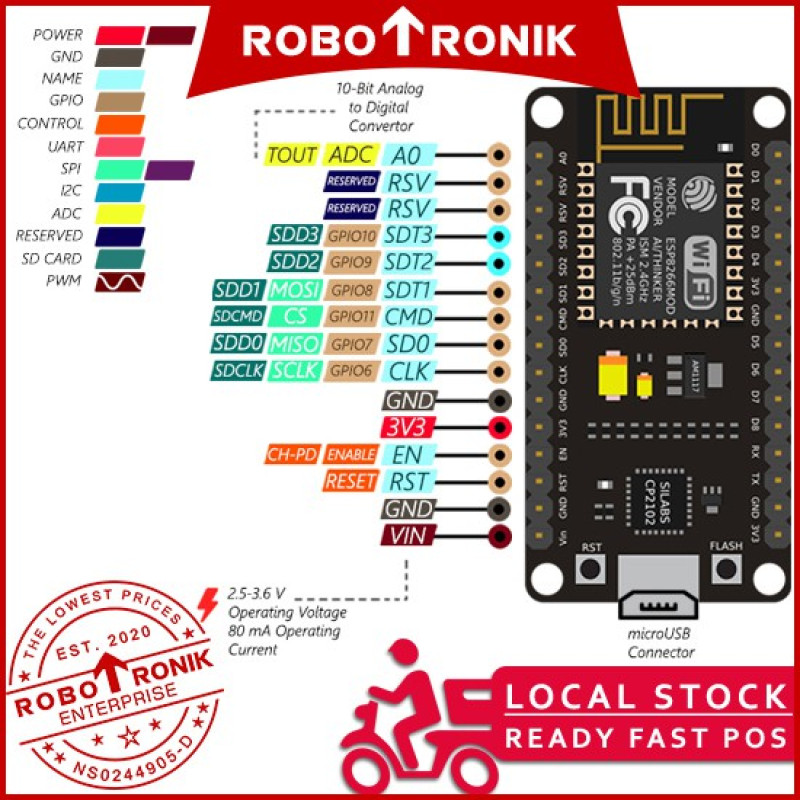

• Headers – 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins

▼ Specifications :

• Input Voltage: 2.5 ~ 3.6VDC
• Operating Voltage: 3.3V
• USB Driver: CP2102
• CPU: 32-bit RISC Tensilica Xtensa LX106 running at 80 MHz
• 64 KB of instruction RAM, 96 KB of data RAM (80x Arduino UNO!)
• 512 KB of EEPROM (512x Arduino UNO!)
• External QSPI flash – 512 KB to 4 MB* (up to 16 MB is supported)
• IEEE 802.11 b/g/n Wi-Fi
• Integrated TR switch, balun, LNA, power amplifier and matching network
• WEP or WPA/WPA2 authentication, or open networks
• Digital I/O Pins (DIO): 16
• Analog Input Pins (ADC): 1
• UARTs: 1 on dedicated pins, plus a transmit-only UART can be enabled on GPIO2
• SPIs: 1
• I2Cs: 1
• Flash Memory: 4 MB
• SRAM: 64 KB
• Clock Speed: 80 Mhz
• 80 Mhz clock (5x arduino UNO or mega!)
• Current: 215mA
• Dimensions: 49 x 24.5 x 13mm
