✍ * Note: Arduino NANO microcontroller isn't inclusive, only expansion board.

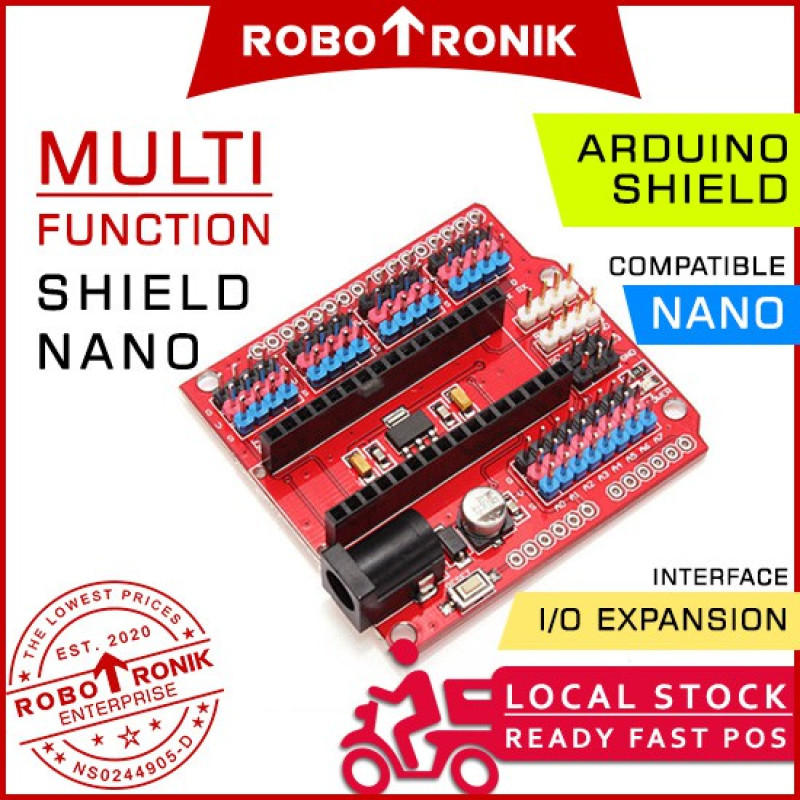

This Nano Mult-Function expansion board is designed specially for Arduino Nano, solve the problem of wiring confusing when a variety of sensors connected.

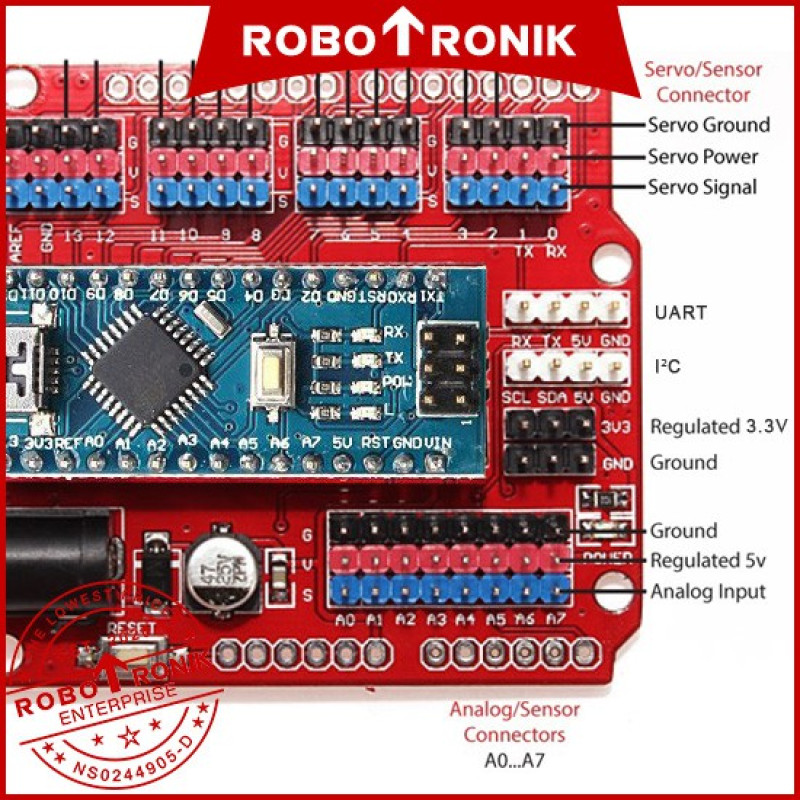

Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface.
Lead out the I2C interface of mainboard for convenient connection.

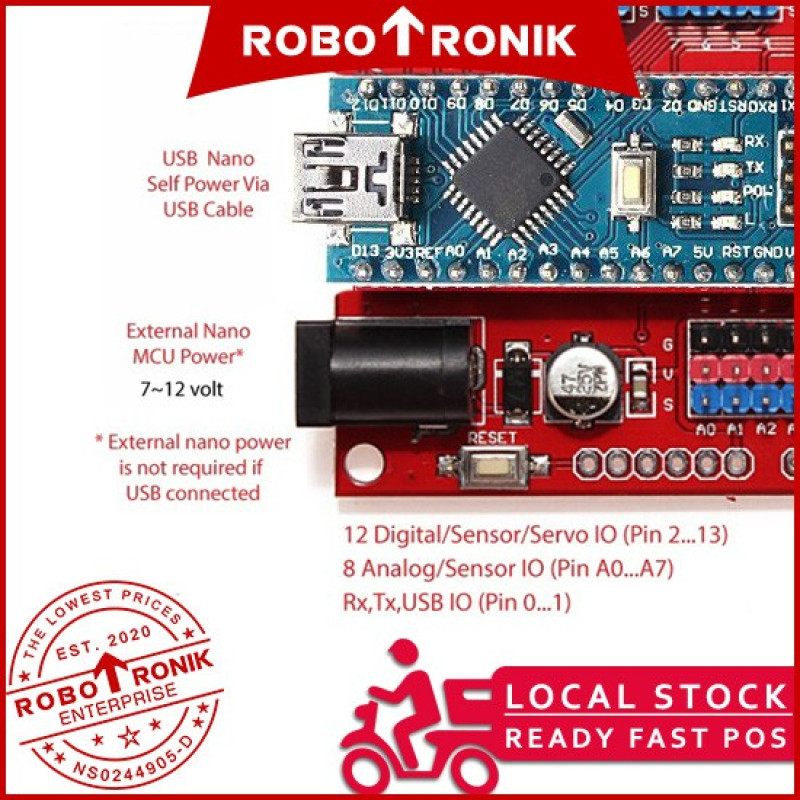

Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features
Expansion shield for Arduino Nano

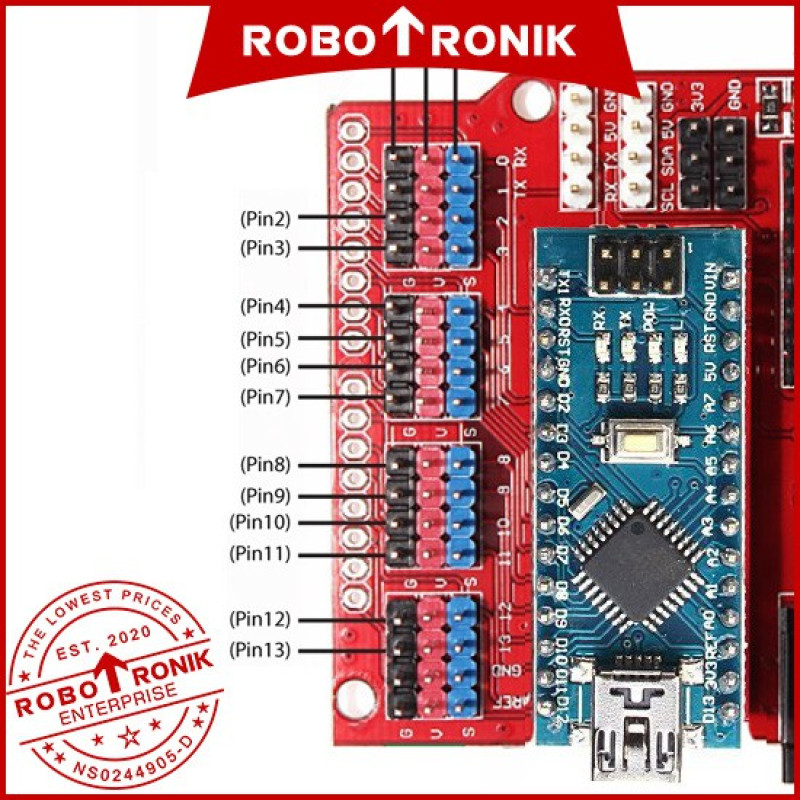

Pin out for 14 digital input/output pins
Pin out for 6 PWM outputs
Pin out for 8 analog inputs
Pin out for I2C Interface
Power jack
Reset button
LED for power indicator
AMS1117 3.3V Output Voltage
Also compatible with Arduino UNO after soldering pin headers to this shield


▼ Package Included
1 x NANO expansion shield
