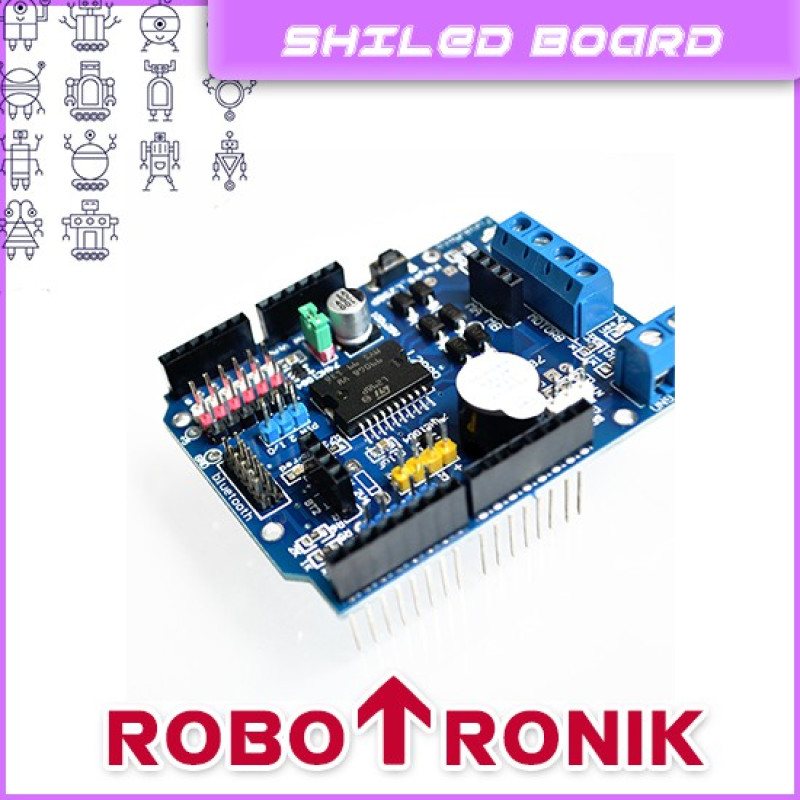

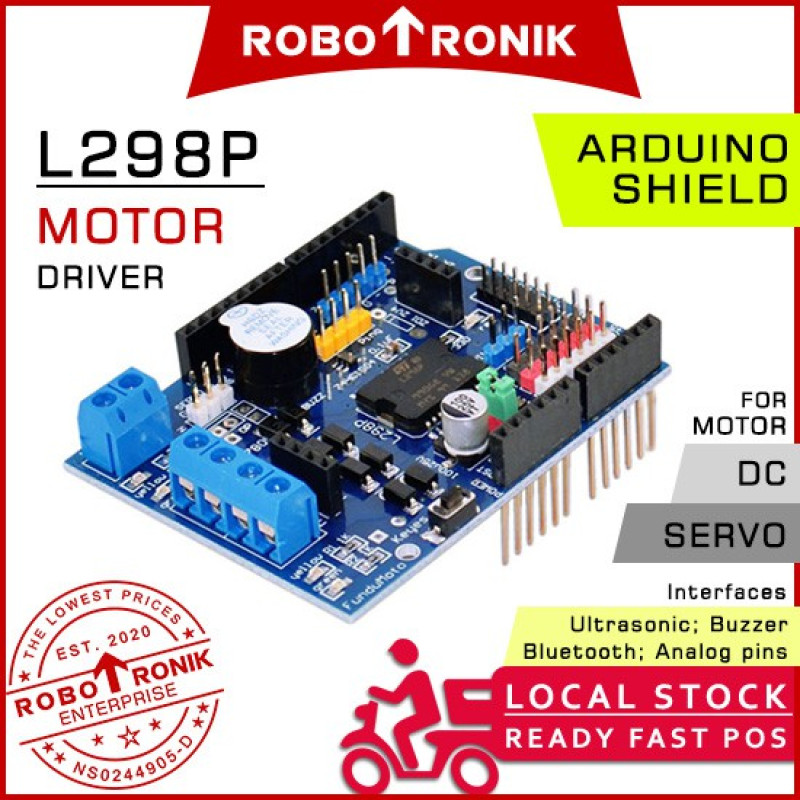

✍ 298P Shield DC motor driver uses LGS's excellent high-power motor dedicated driver chip L298P, which can directly drive 2 DC motors with a drive current of 2A, and the motor output terminal uses 8 high-speed Schottky diodes as protection. The laminated design can be directly plugged into it, making it more convenient to use!

✍ Overview:
298P Shield DC motor driver uses LGS's excellent high-power motor dedicated driver chip L 2 9 8 P, which can directly drive 2 direct Current motor, drive current up to 2 A, the motor output terminal uses 8 high-speed Schottky diodes as protection. The circuit wiring is reasonable and uniform
Adopting SMD components, the laminated design can be directly plugged into Arduino.
L 2 9 8 PS hield DC motor driver has PWM speed control mode. Motor power supply can use Arduino VIN input or the connection on the driver Line column input, use jumper to switch.

✍ Technical parameters:
1. input voltage VD: 5 V
2. Input voltage VS of the driving part: VIN input 6.5～12 V, PWRIN input 4.8～2 4 V
3. operating current I ss: ≤3 6 m A
4. Operating current I o: ≤2 A
5. Maximum power dissipation: 2 5 W (T = 75°C)
6. Control signal input level: high level: 2. 3 V≤V in≤5 V low level:-0.3 V≤V in≤1. 5 V
7. Working temperature:-25℃～＋130℃
8. Drive: Dual high-power H-bridge drive

✍ Features:

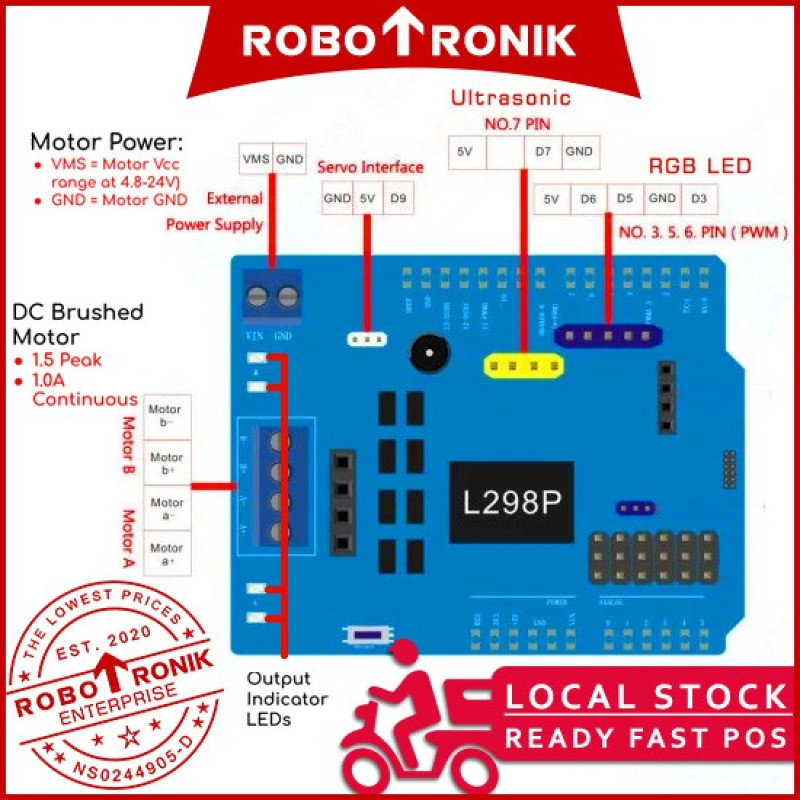

1. There is an L 2 9 8 P motor driver chip on the board, and the digital IO port (D10, D11, D12, D13) of the main board is directly used, without cumbersome wiring.
2. Onboard buzzer (D4), you can set the reversing alarm bell.
3. Convenient motor interface, which can be divided into two motor outputs.

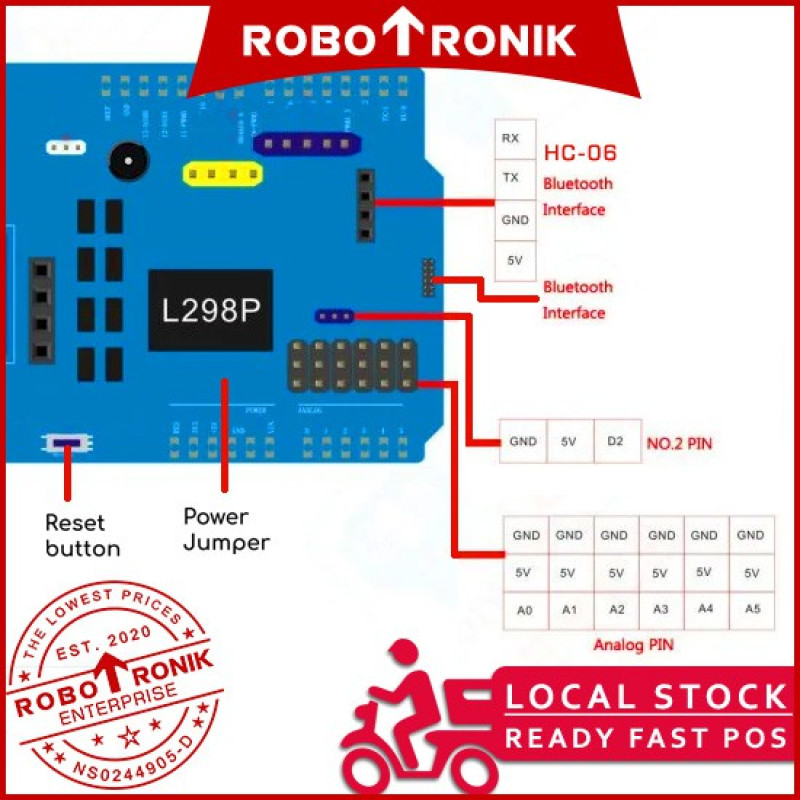

4. Two Bluetooth interfaces, which can be plugged directly without wiring.
5. There are seven digital interfaces D 2, D 3, D 5, D 6, D 7, D 9, D that are not occupied.
6. Six analog interfaces A 0-A 5 are out.
7. There are indicators for forward and backward steering.

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
