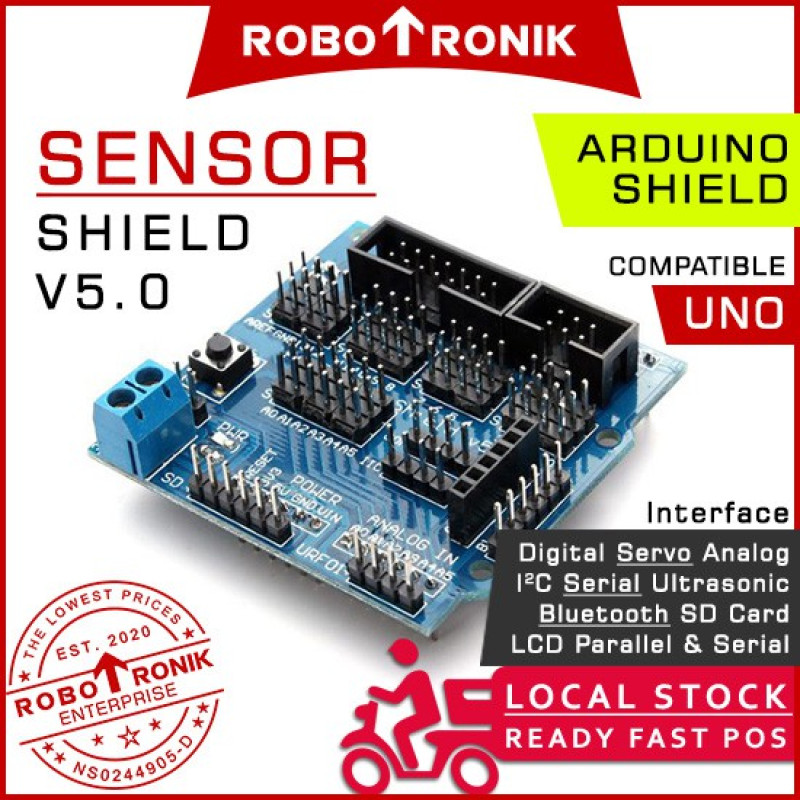

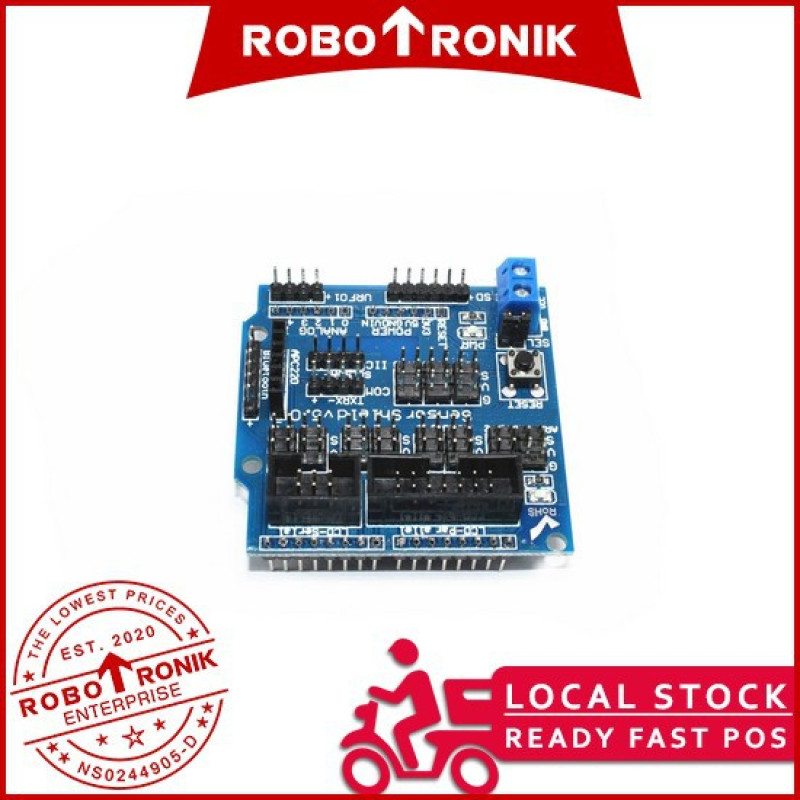

✍Sensor Shield V5.0 sensor expansion board

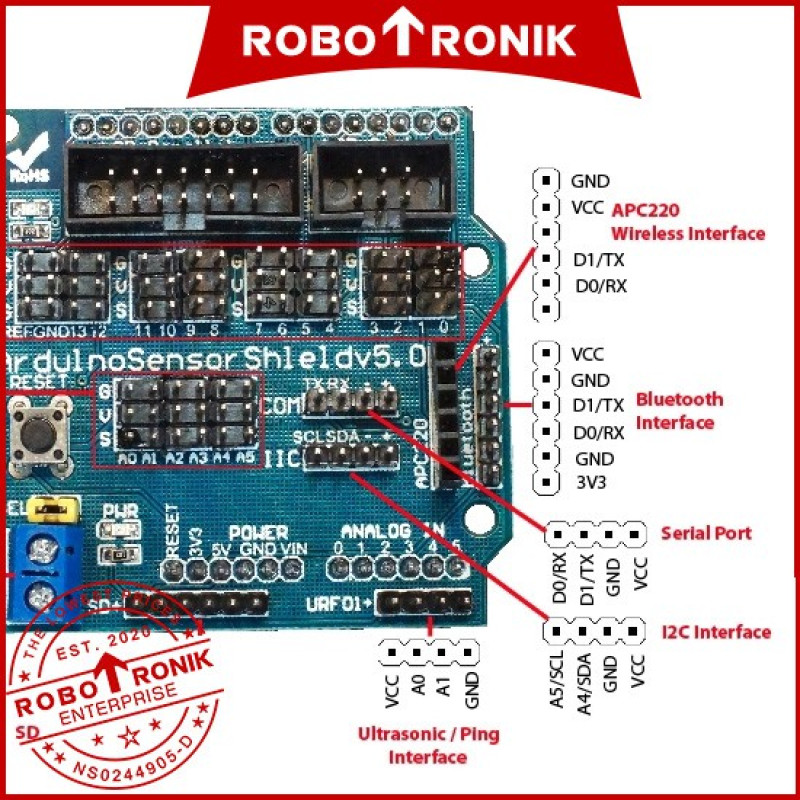

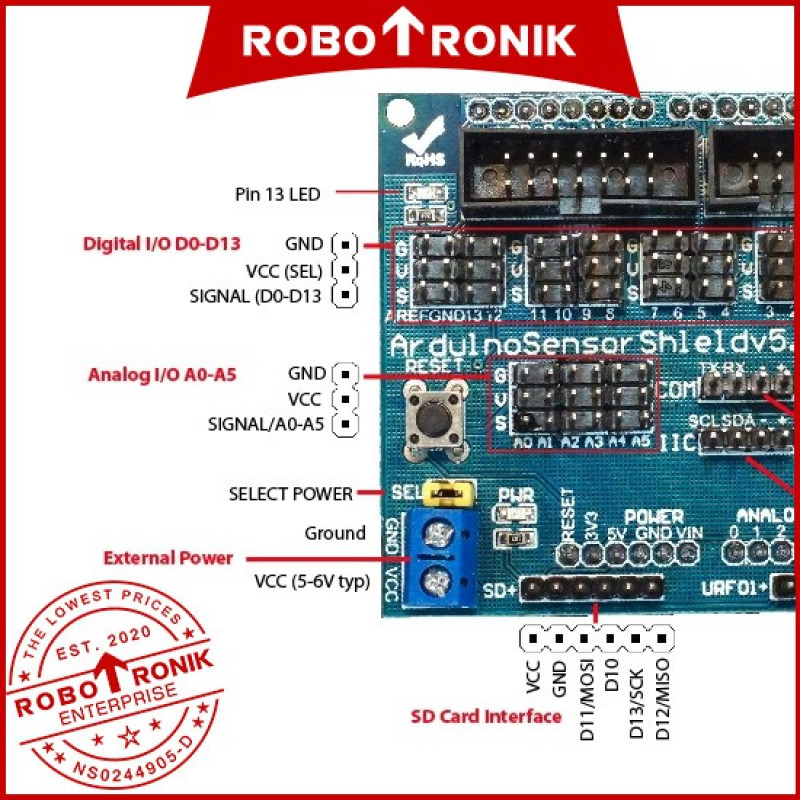

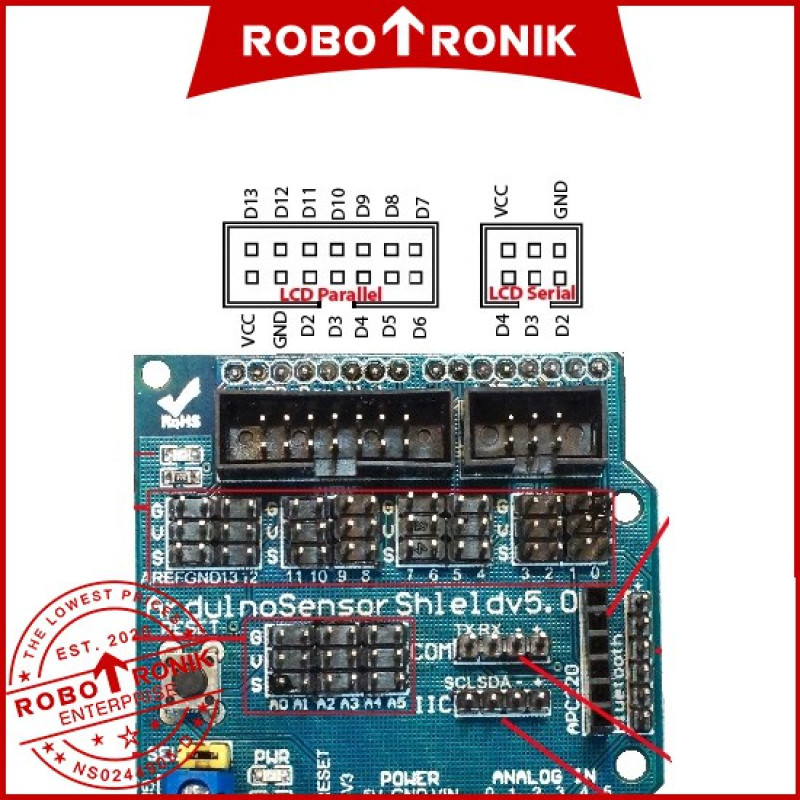

The newly launched Sensor Shield V5.0 sensor expansion board still adopts a laminated design. The motherboard not only expands all the digital and analog interfaces of the Uno in the form of servo line sequence, but also has special IIC interfaces, servo controller interfaces, Bluetooth module communication interface, SD card module communication interface, APC220 wireless radio frequency module communication interface, ultrasonic sensor interface, 12864 LCD serial and parallel interface, independent expansion is easier to use. For beginners, there is no need to worry about tedious and complicated circuit wiring. This sensor expansion board really simplifies the circuit and can easily connect common sensors. A sensor only needs a general 3P sensor. Connection line (regardless of digital connection line and analog connection line). After completing the circuit connection, write the corresponding program and download it to the controller to read the sensor data, or receive the data returned by the wireless module. After processing, you can finally complete yourself easily Interactive works.

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
