✍Tinker.it made a pretty neat little shield called the EthernetShield, so I figured I’d pick up a couple to make some projects.

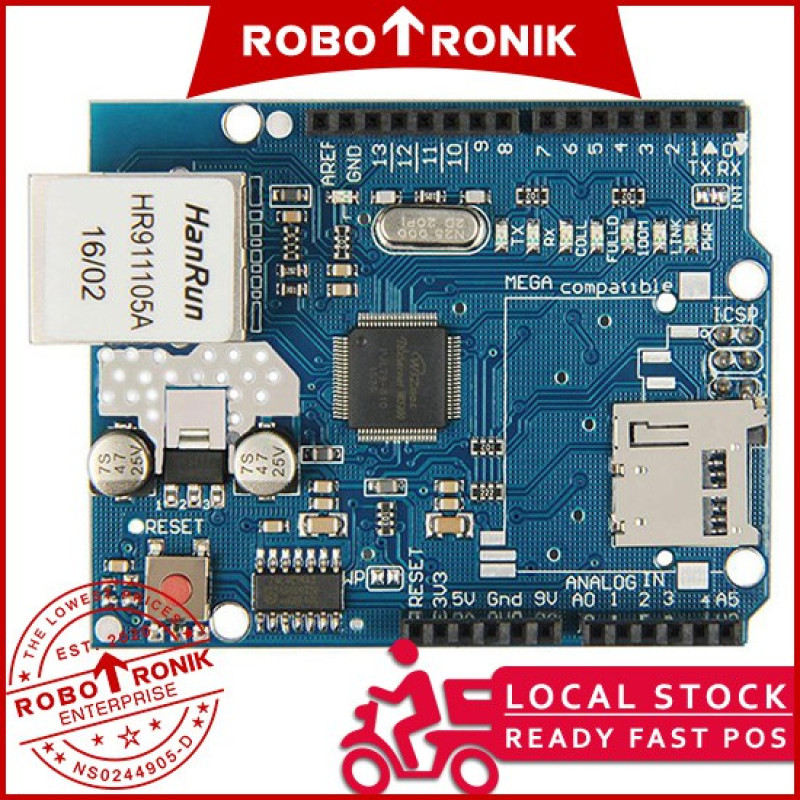

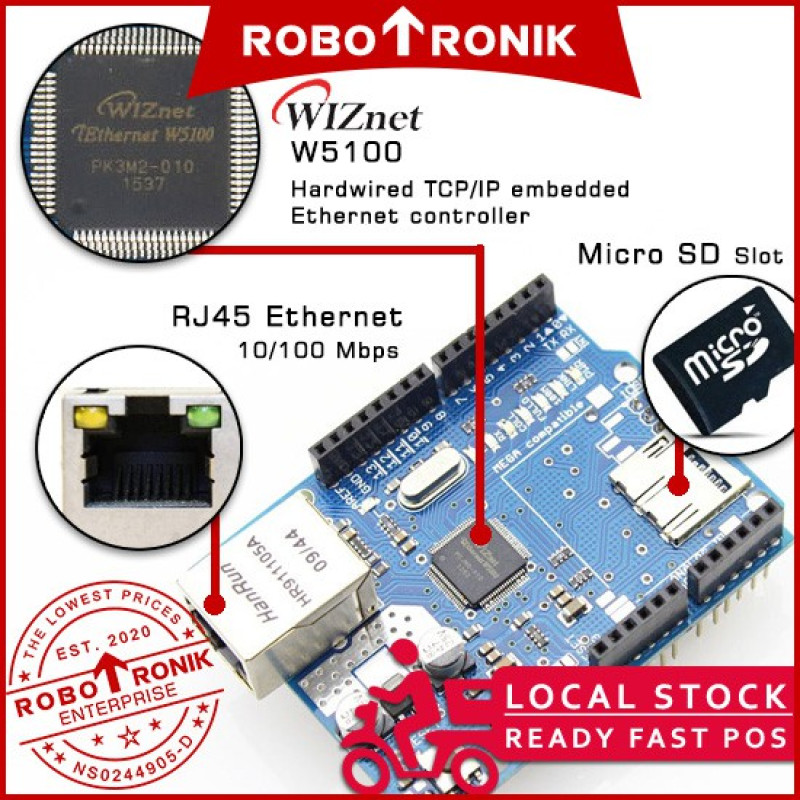

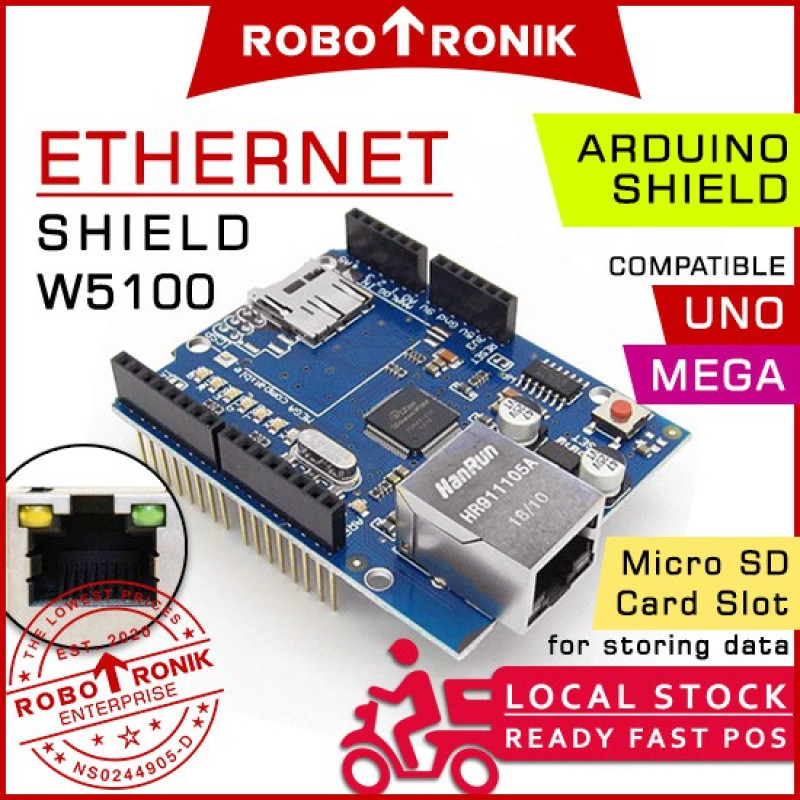

✍The Ethernet Shield is designed to allow the Arduino base module to connect to the internet easily as a standalone unit. The module carries an onboard WIZnet W5100 Ethernet chip, which provides a network (IP) stack capable of both TCP and UDP, as well as a standard RJ45 Ethernet jack. It supports up to four simultaneous socket connections. An Ethernet library writes sketches that connect to the internet using the shield.

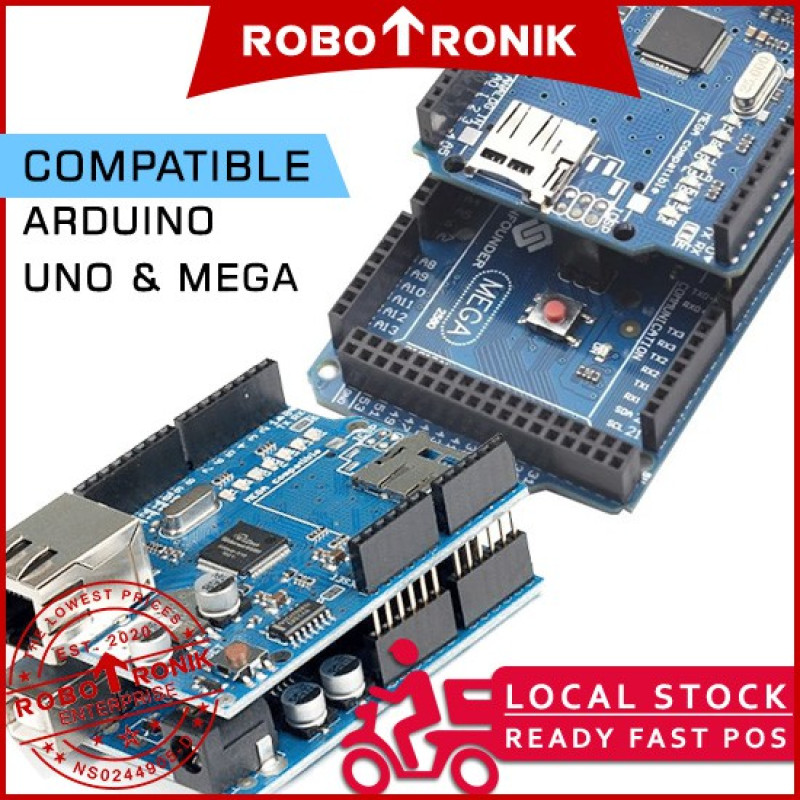

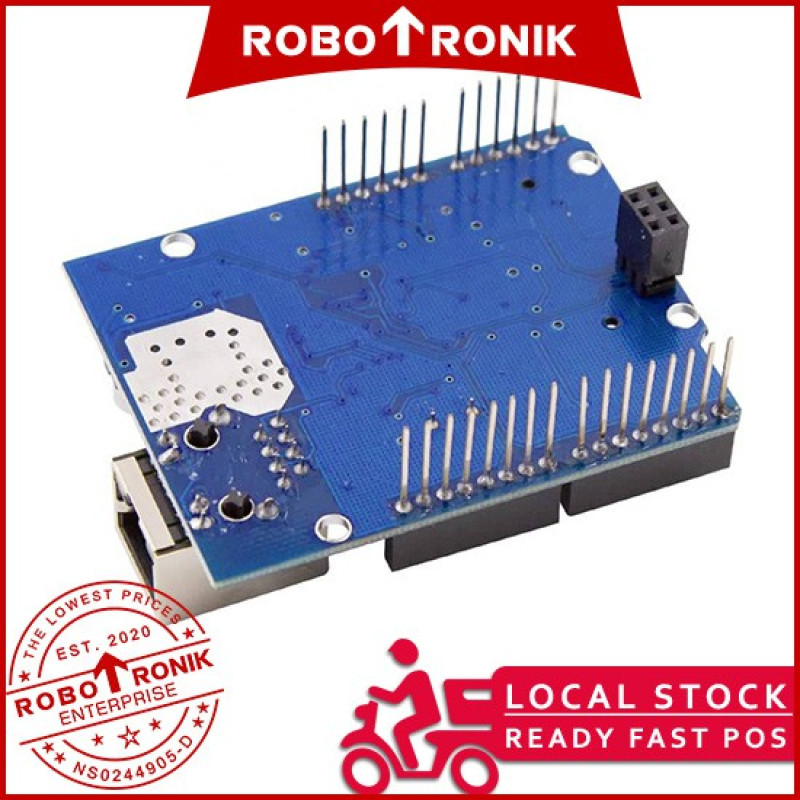

✍The Ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.

===========================================

▼ Specifications
Onboard WIZnet W5100
RJ45 Ethernet jack 10/100 Mbps communication

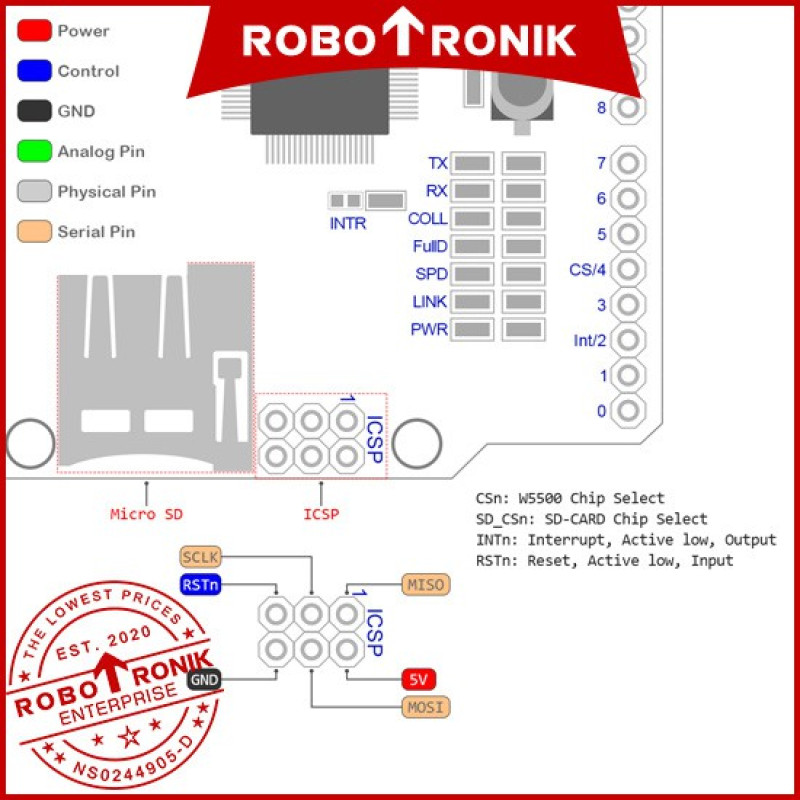

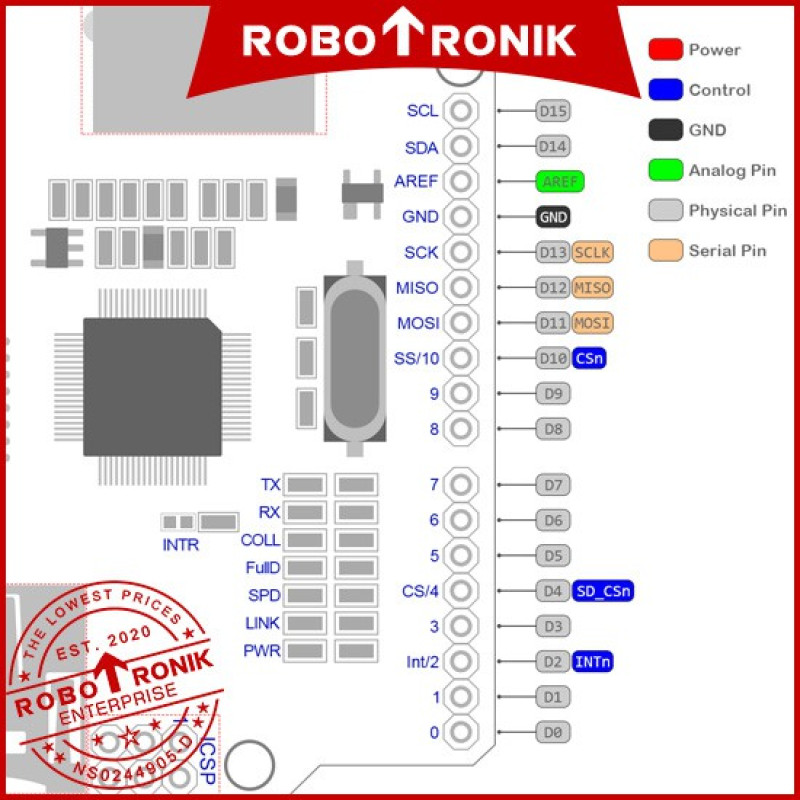

Uses digital pins 10, 11, 12, and 13 (SPI)
Supports Full and Half Duplex communication
RJ45 Ethernet jack

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
