✍ STM8 series has already captured a large share of 8 Bit controller market in Industry. It is also gaining popularity in the DIY community all over the world, all credit goes to great features of this family, plenty of documentation and low-cost Discovery Kits by ST Microelectronics. These boards cost less than an Arduino and puts all I/O on PCB headers, power supply, reset switch, SWIM connector, and a test LED connected to Port B.5.

✍ 8-bit microcontrollers have been around for a very long time, slowly fading in popularity as more powerful devices pushed them out of the spotlight. However, they never really went away.

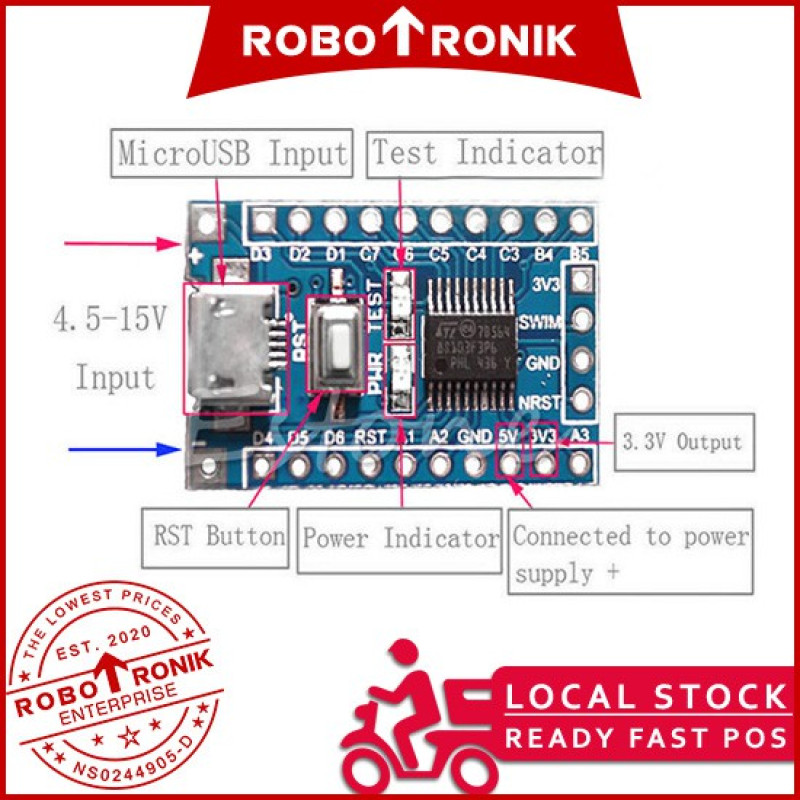

▼ Features :

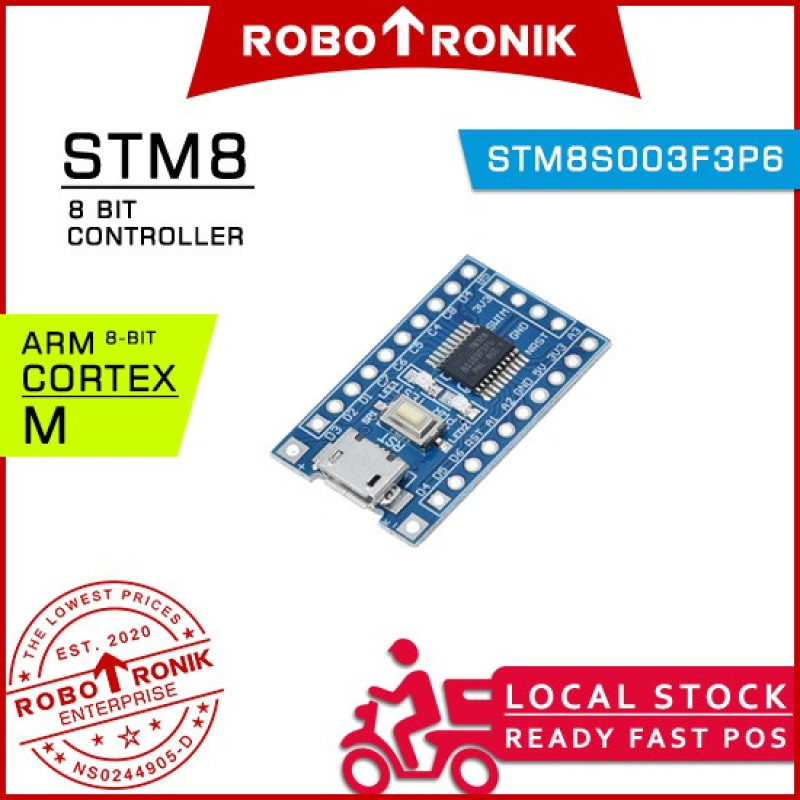

On-board STM8S003F3P6 chip
On-board SWIM connector for programming
On-board reset switch
Reserved external crystal oscillator soldering place

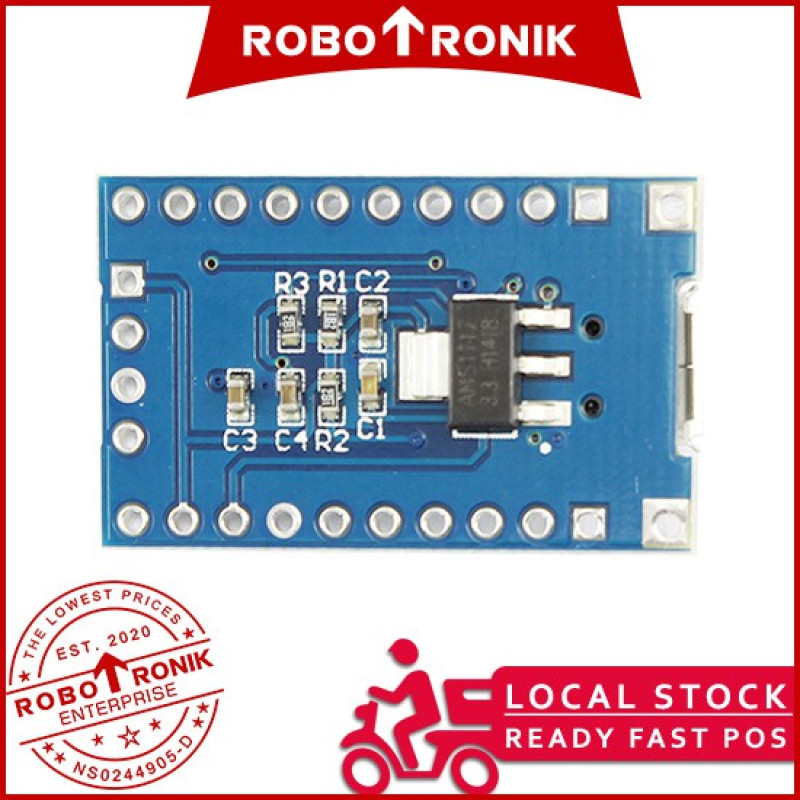

AMS1117-3.3 voltage regulator for converting 5V power supply to 3.3V
Micro USB connector for powering the board

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Specifications :
Core: Cortex-M 8-bit
Operating frequency: 16MHz
Storage resources: 8KByte Flash, 1KByte SRAM
Analog-to-digital conversion: ADC 10-bit
Timers: 3 Timers (1x8-bit, 2x16-bit)
Operating Voltage: 4.5V – 15VDC (Recommend via micro USB)
Size: 28mm*17mm*5mm

===========================================

▼ Package Content :
1 x STM8S103F3P6

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
