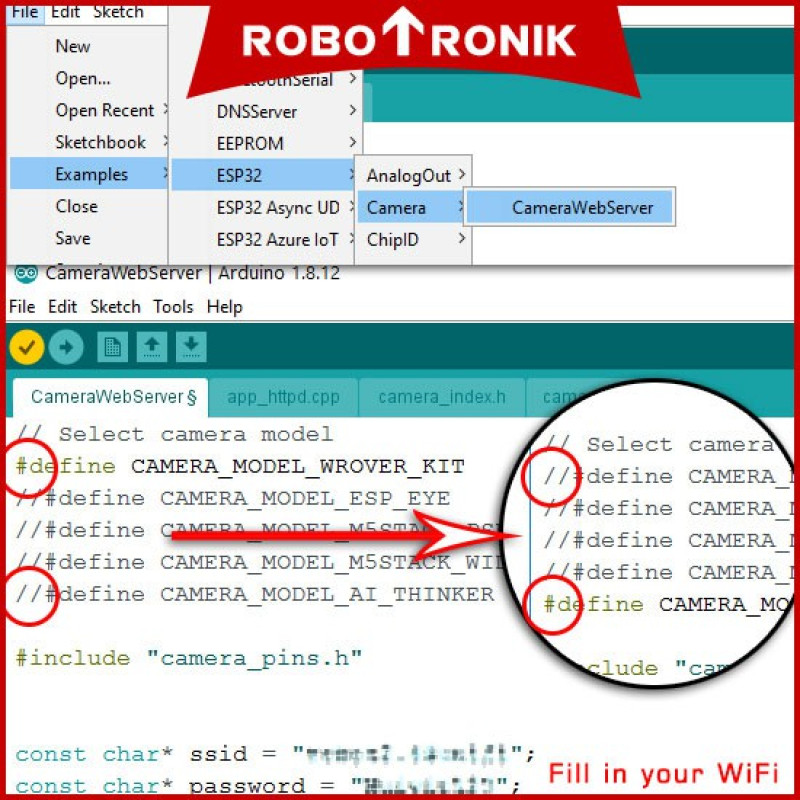

Tutorial:

https://github.com/mihvoi/ESP32S3CamTimeLapse

https://randomnerdtutorials.com/esp32-cam-video-streaming-face-recognition-arduino-ide

Troubleshooting Guide:

https://randomnerdtutorials.com/esp32-cam-troubleshooting-guide

========================

✍ ESP32-S3 Product features:

• ESP32-S3 WROOM is designed based on ESP32S3-WROOM-1 module of PCB onboard antenna.

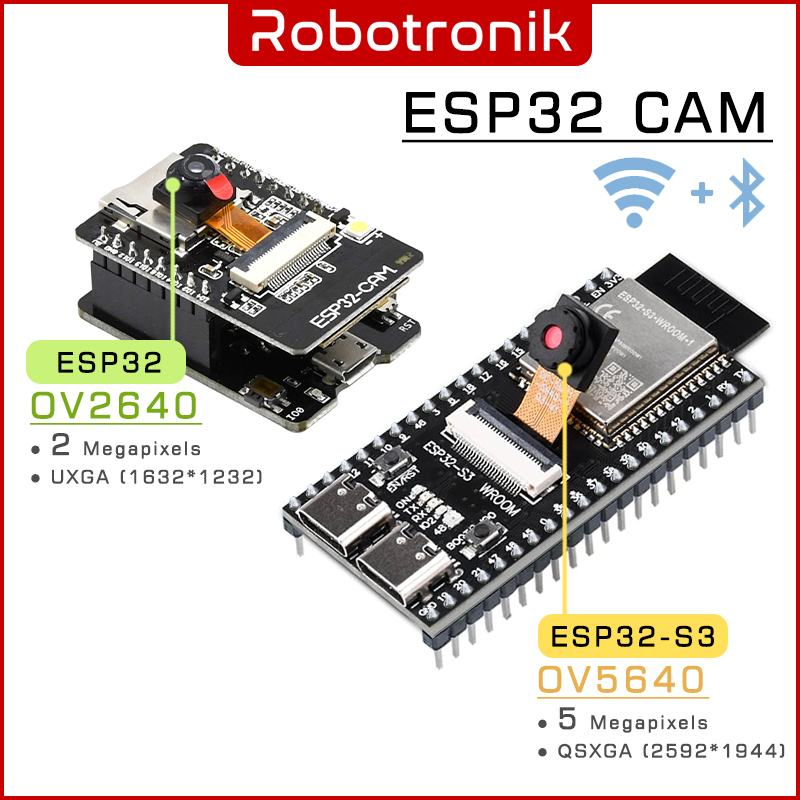

• ESP32-S3 development board can be matched with OV2640/OV5640 cameras.
• ESP32-S3 is a low-power MCU system on a chip (SoC), which integrates 2.4 GHz Wi-Fi and low-power Bluetooth dual-mode wireless communication.
• ESP32-S3 has a complete Wi-Fi subsystem and a low-power Bluetooth subsystem. It has industry-leading low-power performance and RF performance, supports a variety of low-power working states, and can meet the power consumption requirements of various application scenarios.
• ESP32-S3 chip provides rich peripheral interfaces, and has a variety of unique hardware security mechanisms. The perfect security mechanism enables the chip to meet strict security requirements.

✍ ESP32-S3 Performance parameters:

• Controller: XtensaR dual-core 32-bit LX7 CPU with frequency up to 240MHz.
• Storage:
• 384 KB ROM
• 512 KB SRAM
• 16 KB RTCSRAM
• 8 MB PSRAM
• Working voltage: 3V to 3.6V
• Up to 45 GPIO
• 2*12-bit ADC (up to 20 channels)
• Temperature range: -40 to 65 degrees Celsius

✍ ESP32-S3 Communication interface:

• 2 x 12c interfaces
• 2 x 12s interface
• 4 x SPI interfaces
• 3 x UART interfaces
• 1 x USB oTG interface.

✍ ESP32-S3 WiFi

• Support IEEE 802.11 b/g/n protocol.
• Support 20 MHz and 40 MHz bandwidth in 2.4 GHz band.
• Support 1T1R mode with data rate up to 150 Mbps.
• Wireless multimedia (WMM)
• Frame aggregation (TX/RX A-MPDU,TX/RX A-MSDU)
• ImmediateBlock ACK (immediate block ack)
• Fragmentation/de-fragmentation-beacon automatic monitoring (hardware TSF) -4× virtual wi-Fi interface.
• At the same time, it supports lnfrastructure BSS) Station mode, SoftAP mode and Station+ SoftAP promiscuous mode. Please note that when ESP32-S3 scans in Station mode, the SoftAP channel will change at the same time.
• Antenna diversity
• 802.11 mc FTM
• Support external power amplifier

✍ ESP32-S3 Bluetooth

• Low power Bluetooth LE):Bluetooth 5, Bluetoothmesh.
• High power mode (20 dBm, sharing PA with Wi-Fi)
• The rate supports 125Kbps, 500Kbps, 1 Mbps and 2 Mbps.
• Multiple Advertisement Sets Channel selection algorithm # 2 Wi-Fi and Bluetooth coexist and share the same antenna.
• Advanced peripheral interfaces and sensors
• 45 xGPIO port

✍ ESP32-S3 Digital interface:

• 4xSPl
• 1xLCD interface (8 bits
• 16-bit parallel RGB,l8080,MOTO6800), supporting the conversion between RGB 565, YUV422, YUV420 and YUV411.
• 1xDVP8 bit ~16 bit camera interface
• 3xUART
• 2xl2C
• 2x 12S
• 1xRMT (TX/RX)
• 1x pulse counter
• LED PWM controller

▼ Package Included :

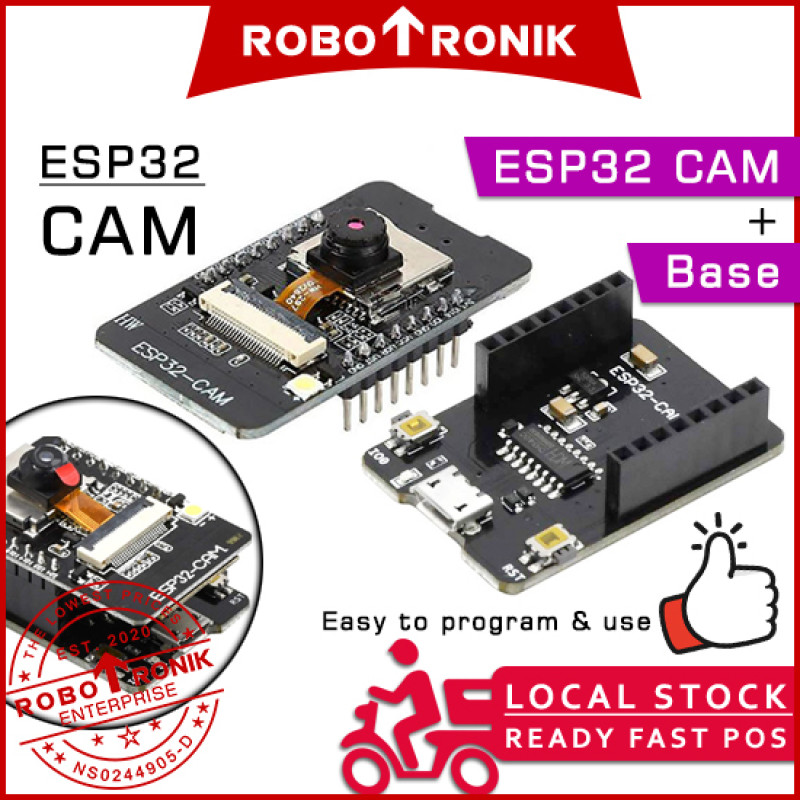

• 1 x ESP32-CAM Module
• 1 x Camera w/ Cable
