Mosfet Manual

▼ Applications
On/Off any DC devices, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc.

▼ Features
Only for DC devices, not working on AC devices
Achieve a high-frequency circuit fast frequent on-off switch unlimited number of times
Long life than regular relay
Dual MOS shunt active output, lower resistance, more current, strong power
Maximum load current 15A, 400W
Wide working input voltage from DC 5 to 36V, widely used in any device
Interface is clear and simple
An emergency stop function ("STOP" button)
Trigger signal with no common ground system to improve anti-jamming capability of the system
(also self-shorting common ground)
Sleep Mode - Enabled, screen will automatically turn off if without any operation for 5 minutes, any key will wake it up
Settable OP, CL, LOP, which are independent of each other and are automatically saved
After the module is powered down, all settings are memorized and will not be lost
Optocoupler isolation, enhanced anti-jamming capability, industrial grade board
Operation time adjustable from 0.1 second to 999 minutes

▼ Specifications
Power Supply: 5 - 12V DC
Trigger Source: Active-high (3.0 - 12V)
Output capability: Max. DC 36V 15A / 400W
Standby Current: 15mA
Working temperature: -40 to +85 ℃
Size: 6.0 * 3.5 * 1.3cm

▼ Package Included

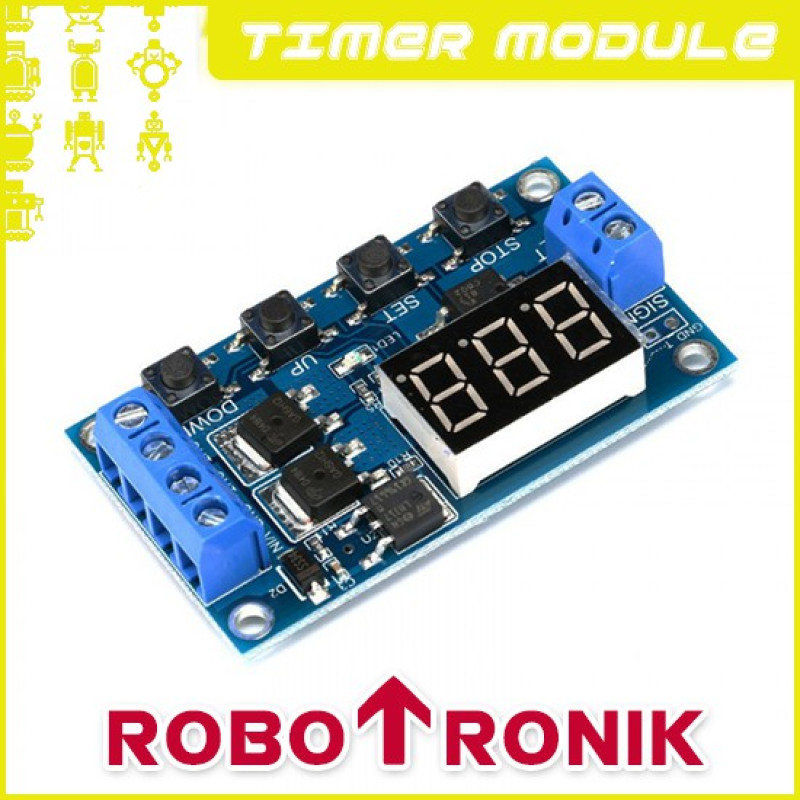

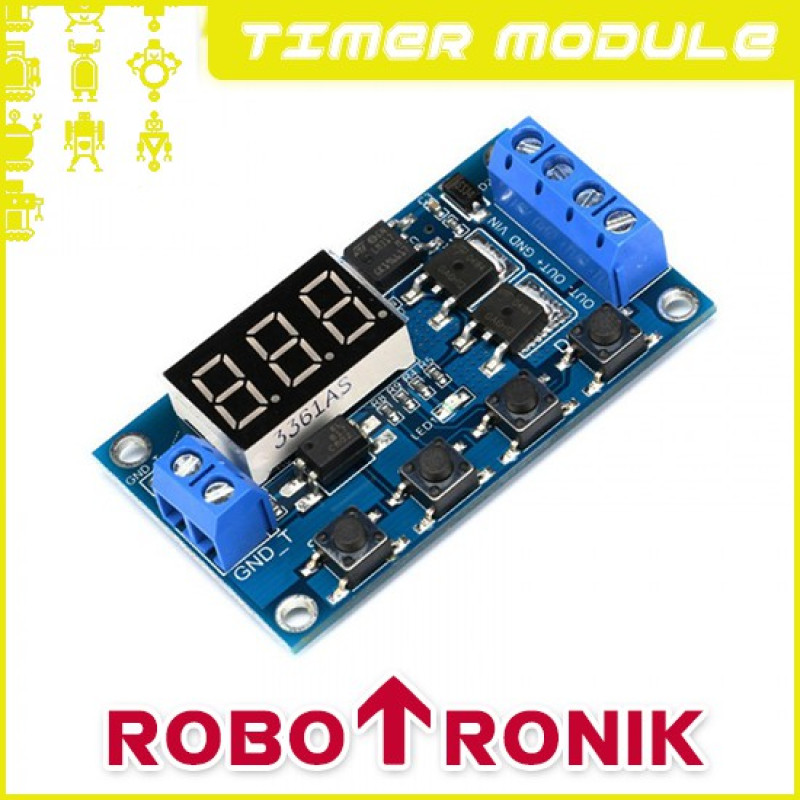

1 x Timer board
1 x User manual
