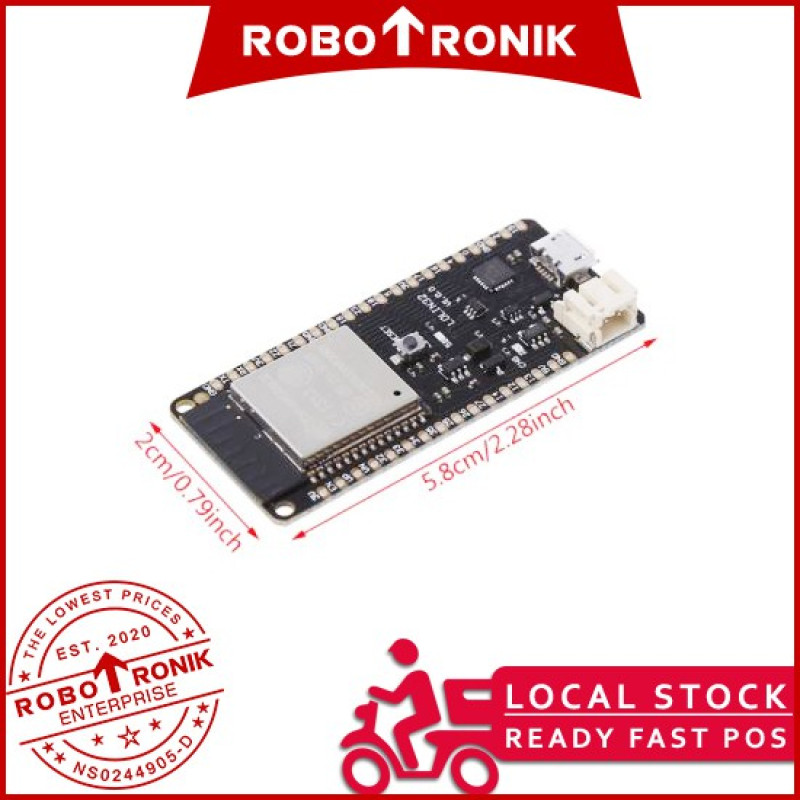

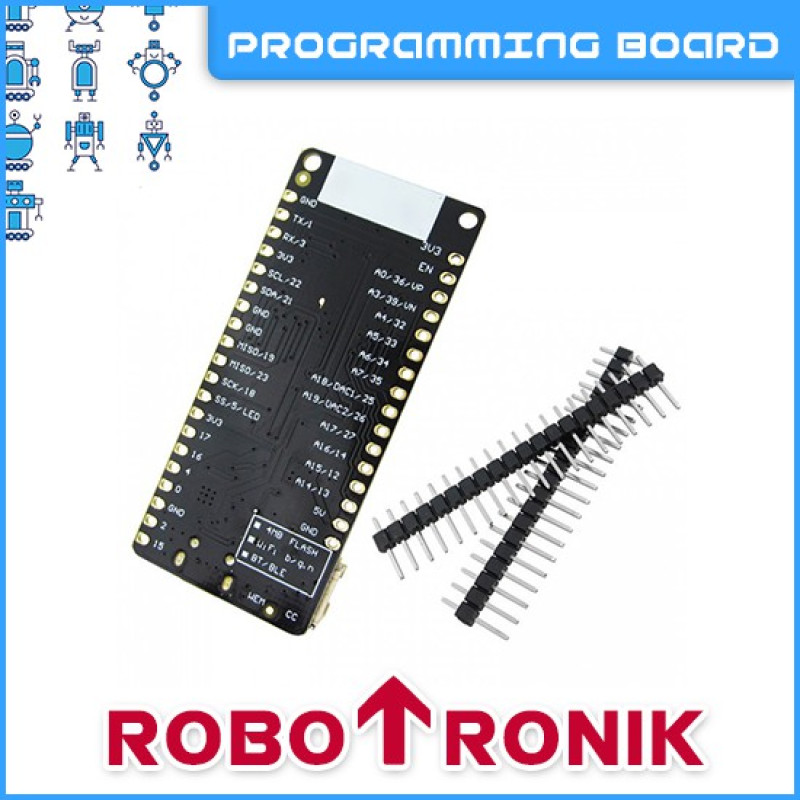

✍ The WeMos LOLIN32 board is based on the ESP-WROOM-32 module and adds a LiIon/LiPo battery charging circuit, an USB to serial converter IC and an USB port. Solder the headers to the PCB and use it directly on any breadboard.

The ESP32 is great for small projects where you don’t need so many I/Os, processing power or interfaces.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features :
CP2104 USB Driver
LiIon/LiPo battery charging circuit
I/O logic level 3.3V
With a clock speed up to 240Mhz and one core dedicated to wireless functions

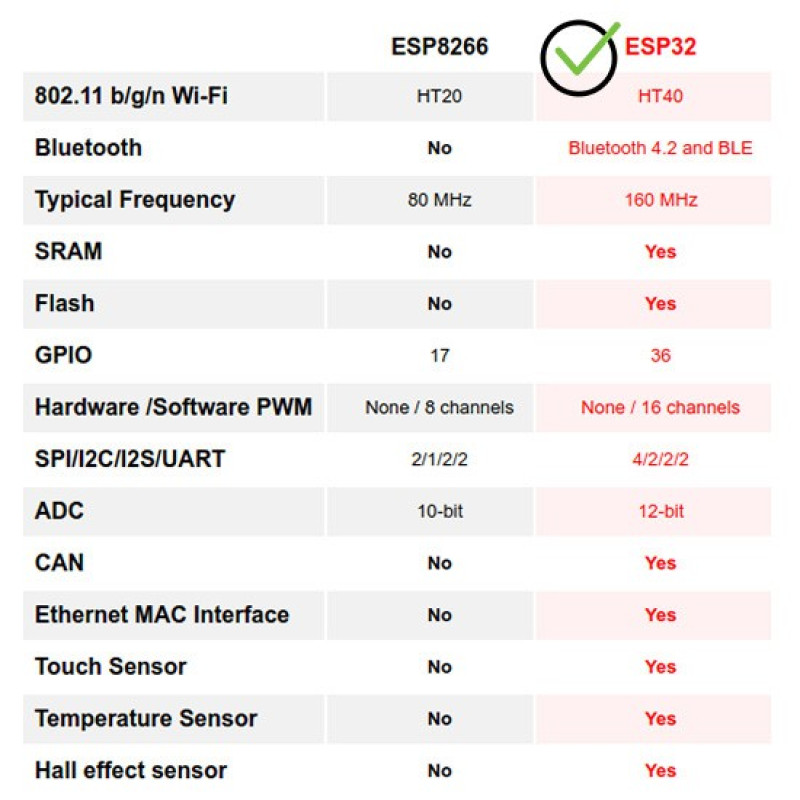

This is MUCH faster than the ESP8266 (80Mhz).
Compatible with Arduino (Arduino IDE program) & Arduino shields
Support ESP32, example microPython, LUA, and Arduino IDE

▼ Specifications :
ESP32 Module: ESP-WROOM-32 from Espressif.
240MHz dual core microprocessor equipped with
4MB SPI flash memory. Support up to 16MB of flash memory
Connectivity
* WiFi 802.11 b / g / n.
- Security WEP, WPA / WPA2 PSK / Enterprise.
- Integrated cryptographic chip supporting AES / SHA2 / Elliptical Curve Cryptography / RSA-4096 algorithms
- Maximum power for data transfer: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
- Sensitivity max. reception: -97 dBm
* Bluetooth 4.0 LE

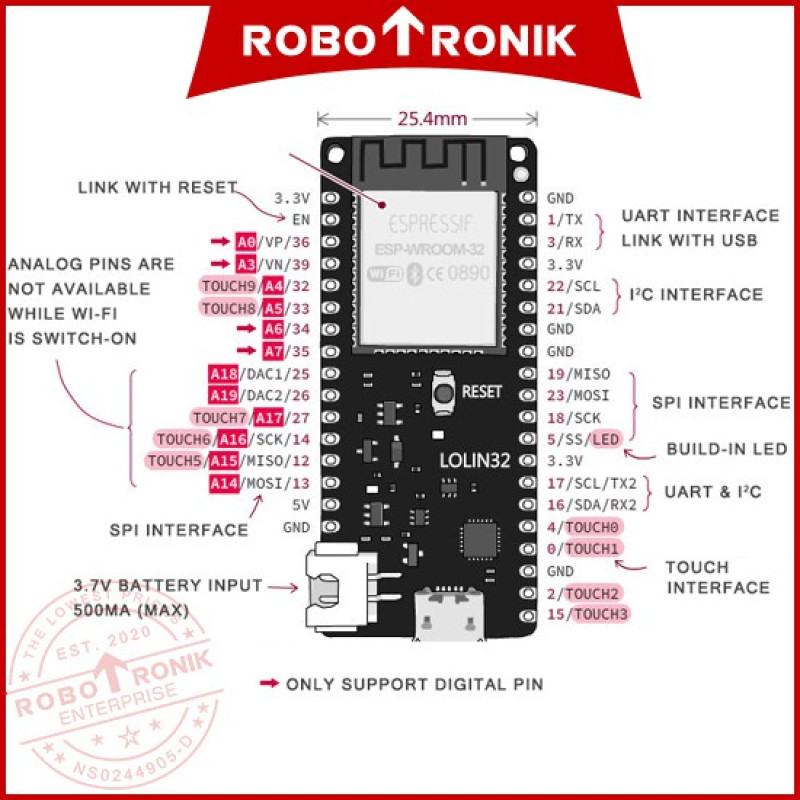

32 Inputs / Outputs
* 26x Digital I / O (3.3V). All outputs can be PWM
* 18x analog inputs
* 3x UART
* 3x SPI
* 2x I2S
* 2x DAC
* 2x I2C
Sleep Mode Consumption: 5 μA
Integrated sensors
* Hall Effect
* 10x inputs for capacitive touch interface
Operating Voltage: 3.3V
Battery Connector: PH-2 2.0mm

===========================================

▼ Package Content :
1 x WeMos LOLIN32

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
