✍ Tiny OLED Display based on SSD1306 Display controller chip. The display is mounted on an easy to solder PCB. The SSD1306 Display interfaces to microcontrollers through a I2C serial bus interface.
✍ Paparan OLED kecil berdasarkan cip pengawal Paparan SSD1306. Paparan dipasang pada PCB yang mudah disolder. Paparan SSD1306 antara muka ke mikrokontroler melalui I2C serial bus interface.
✍ 由于OLED是自发光器件，每个像素自己都会发光，并且透光率很高，因此，与时下液晶电视都采用的LCD面板相比，其亮度与对比度都比LCD胜出一筹，视角可达170度，图像更加鲜艳，耗电量更小。另外，OLED的发光层比较轻，因此它的基层可使用富于柔韧性的材料，而不会使用刚性材料。
- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -
Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
▼ Specifications:
OLED Color: Monochrome - White
Power supply range: DC 3.3V - 5V ⚡
Interface: I2C
Compatible with 3.3V and 5V control chip I/O level
OLED internal drive chip: SSD1306 / SH1106
Viewing angle: more than 160 degree
Working Temperature: -30°C to 70°C

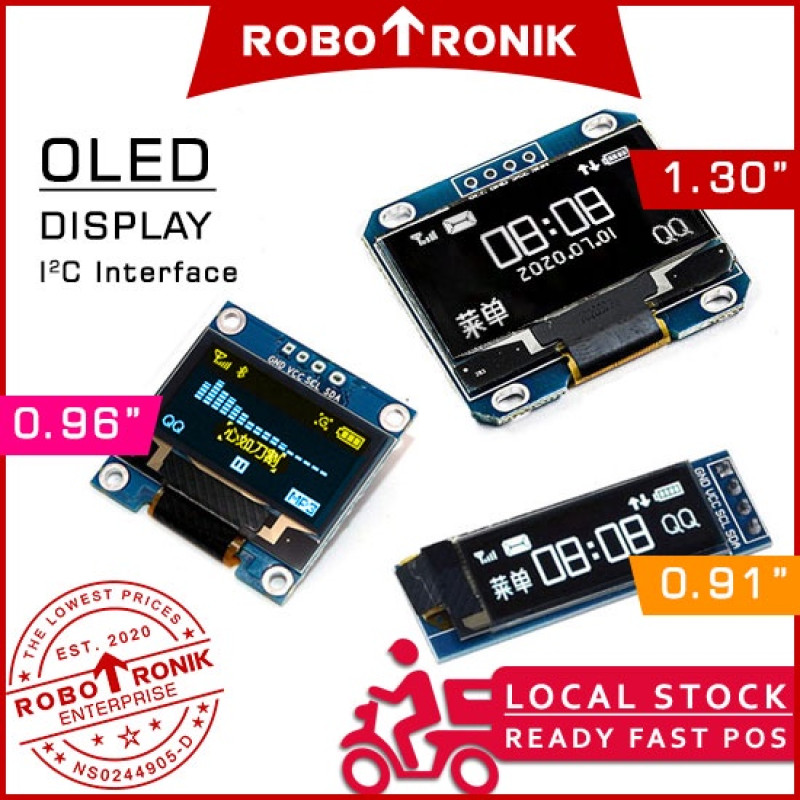

Screen resolution:
[Option] 1.30" - 128 x 64px
[Option] 0.96" - 128 x 64px
[Option] 0.91" - 128 x 32px
Dimension:
[Option] 1.30" - 35.4 x 33.5 mm (LxW)
[Option] 0.96" - 26.3 x 26.1 mm (LxW)
[Option] 0.91" - 36.0 x 12.5 mm (LxW)
▼ Package included:
1 x OLED display
===========================================
▼ Pin-outs:
GND: Gound
VCC: 2.2V - 5.5V DC
SCL: CLK clock
SDA: MOSI data
