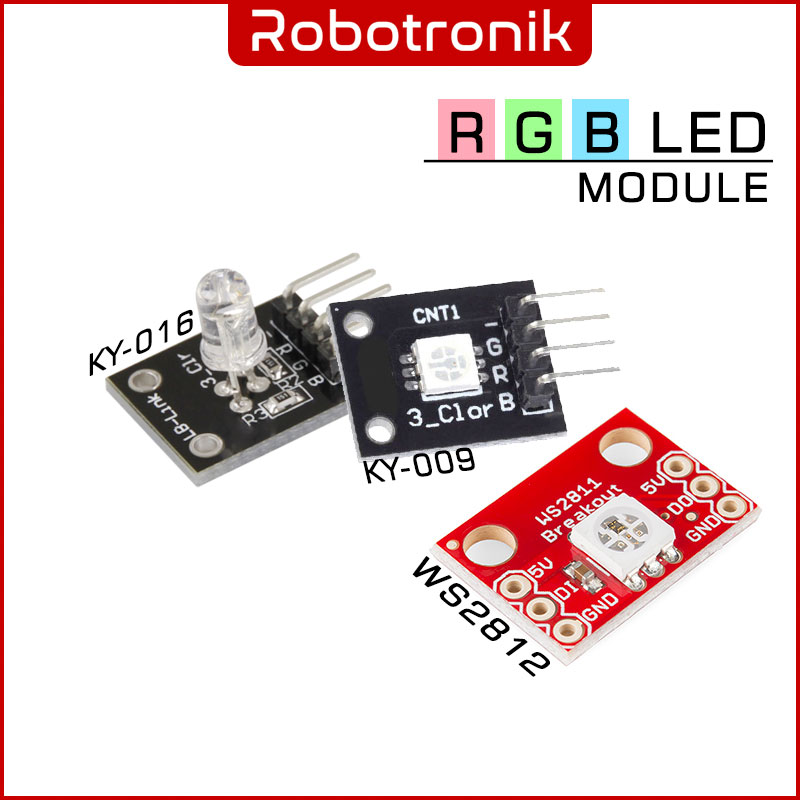

RGB LED module consists of a plug-in full color LED made by R, G, B three-pin PWM voltage input can be adjusted section three primary colors (red / blue / green) in order to achieve a full color mixing effect. Control of the module with the Arduino can achieve cool lighting effects.
▼ WS2812 Features:
- Voltage requirements: 5V DC
- Current requirements: Up to 50 mA
- Communication: Custom asynchronous serial
▼ KY-009 Features:
RGB 5050 full-color LED module, the intensity of the three primary colors (red/blue/green) can be adjusted through the PWM voltage input of the R, G, and B pins to achieve full-color Color mixing effect.
- RGB three primary colors are connected with a current-limiting resistor to prevent burnout
- Through PWM adjustment, the three primary colors can be mixed to obtain different colors
- Can be interfaced with various single-chip computers
- Working voltage: up-to 5V
- LED drive mode: common cathode drive
▼ KY-016 Features:
- Use F5 super bright full color RGB LED
- Red, Green, and Blue lights can be combined to form a total of 16,777,216 (8-bit power 3) different combinations of colors
- Through PWM adjustment, the three primary colors can be mixed to obtain different colors
- Operating voltage : 3 – 5V
- Common cathode configuration
