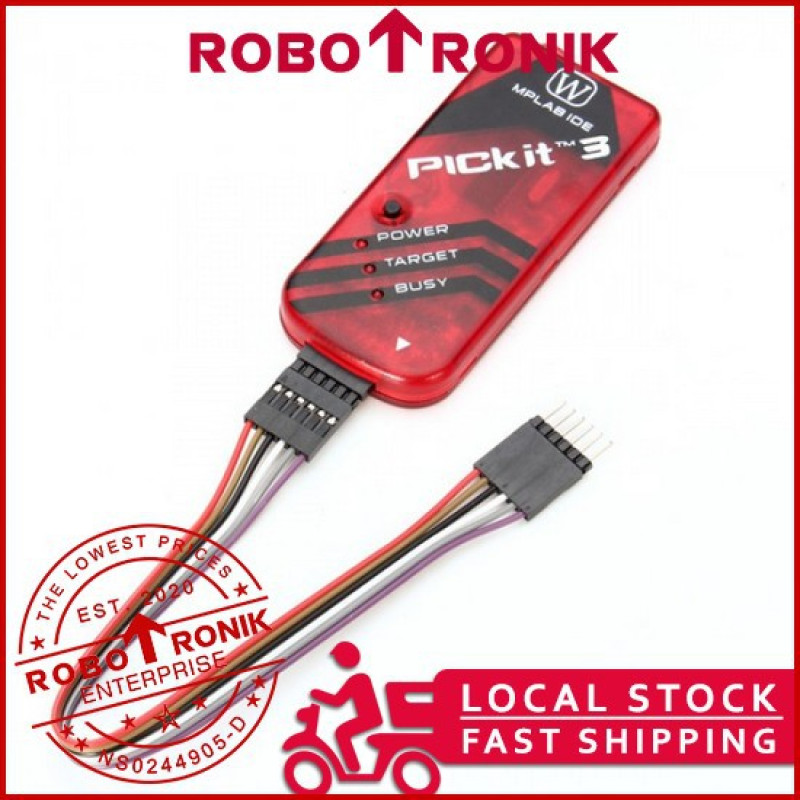

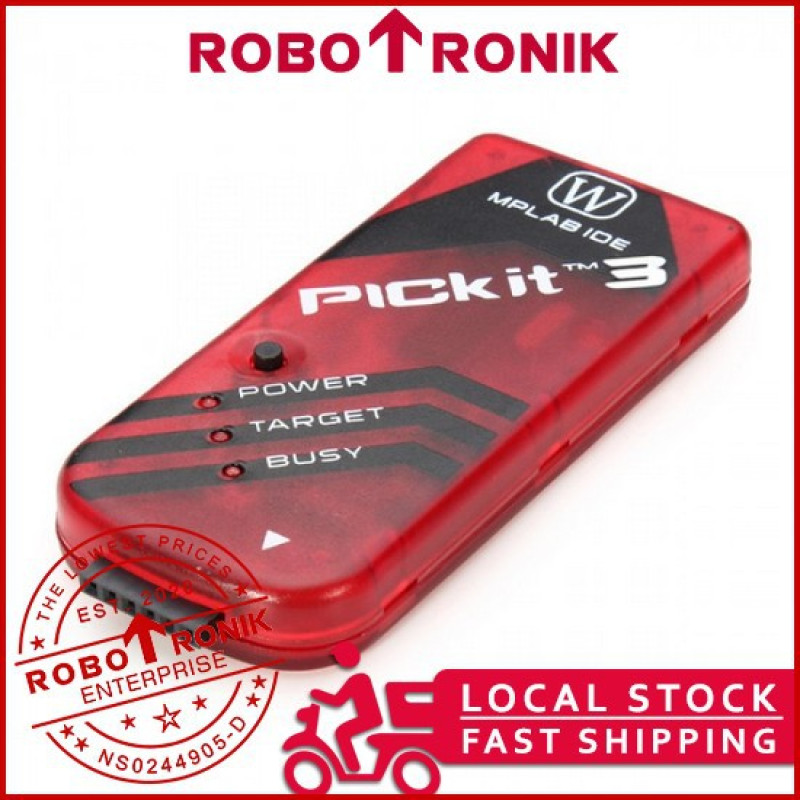

✍ The PICkit 3 allows debugging and programming of PIC and dsPIC microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE) and the latest MPLAB X IDE too. The MPLAB PICkit 3 is connected to a PC using a full speed USB interface and can be connected to the target via standard Microchip 6-pin 0.1" inline header. The UIC-A will do the conversion from PICKIT 3 to UIC00B or even to ICD 2 standard connection. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming. miniUSB cable included.

✍ WARNING! Please do not press PICkit 3's Programmer-To-Go button when it has no image loaded and is connected to PIC32 (or SKPIC32). The PIC32 chip may be bricked that way and is unrecoverable. Many has confirmed that it destroys PIC32 chips. Please read this Microchip forum thread for more info.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features
USB (Full speed 12 Mbits/s interface to host PC)
MPLAB IDE compatible (free copy included)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Fully enclosed
Supports low voltage to 2.0 volts (2.0v to 6.0v range)
Diagnostic LEDs (power, busy, error)
Read/write program and data memory of microcontroller
Erase of program memory space with verification
Freeze-peripherals at breakpoint

===========================================

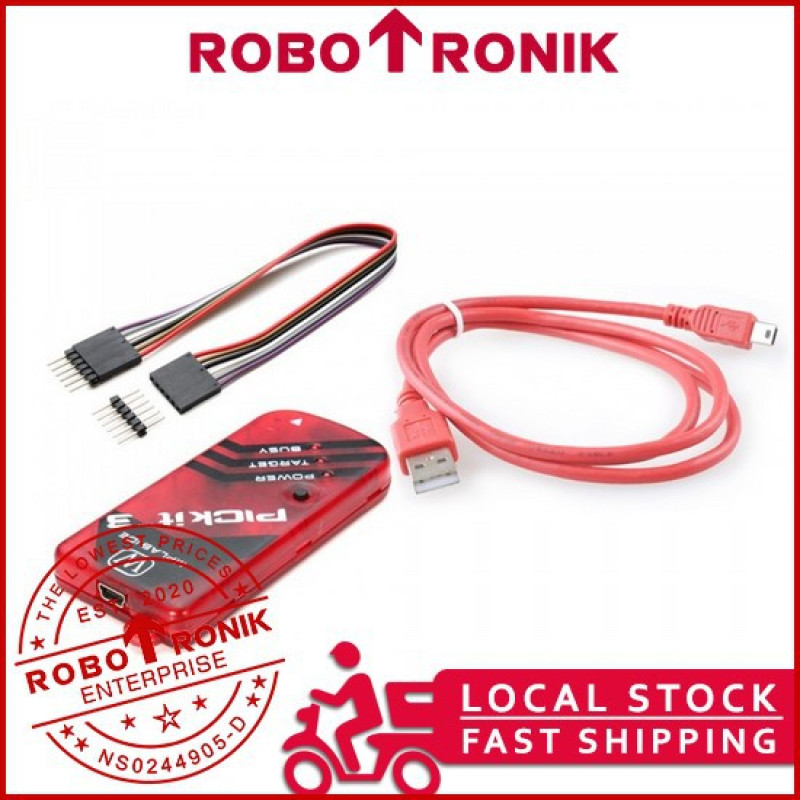

▼ Package included
1 x Pickit3
1 x Programming cable
1 x 6pin Pin Header
1 x USB cable

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
