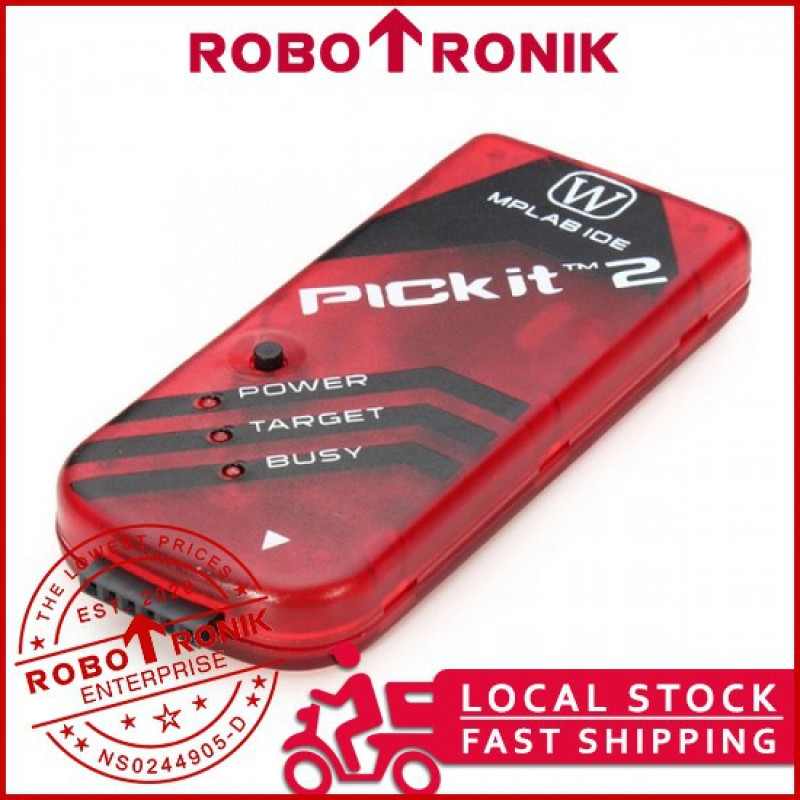

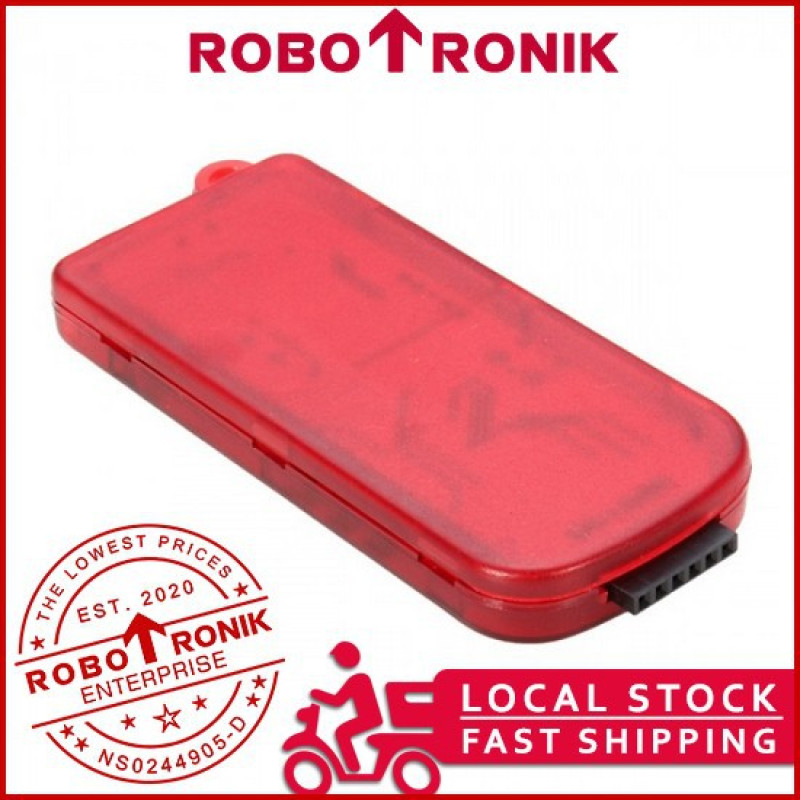

✍ PICkit 2 Debug Express allows in-circuit debugging on selected PICmicro microcontroller units (MCUs). In-circuit debugging allows the designer to run, examine, and modify the program while the PICmicro MCU is embedded in the hardware, thereby assisting the designer in debugging the firmware and hardware together. Debug Express interacts with MPLAB IDE software. Programs can be run, stopped, and single-stepped. One breakpoint can be set and the processor can be reset. The PICkit 2 Starter Kit is a low-cost development kit with an easy to use interface for programming many of Microchip’s baseline, midrange and PIC18F families of Flash memory microcontrollers. This starter kit is designed to help the user get up to speed quickly using PIC microcontrollers.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features
USB (Full speed 12 Mbits /s interface to host PC)
Real-time execution
MPLAB IDE compatible (free copy included)
Built-in over-voltage/short circuit monitor
Supports low voltage to 2.0 volts (2.0V to 6.0V range)
Diagnostic LEDs (power, busy, error)
Read/write program and data memory of microcontroller
Erase of program memory space with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go
Debugging & Programming
PIC12F683*
PIC16F684*, 685*, 687*, 688*, 689*, 690*
PIC16F883, 884, 886, 887
PIC16F913, 914, 916, 917, 946

✍ These devices require an ICD header board to enable debugging with them Programming only
PIC12F508, 509, 510
PIC12F675
PIC16F505, 506

===========================================

▼ Package included:

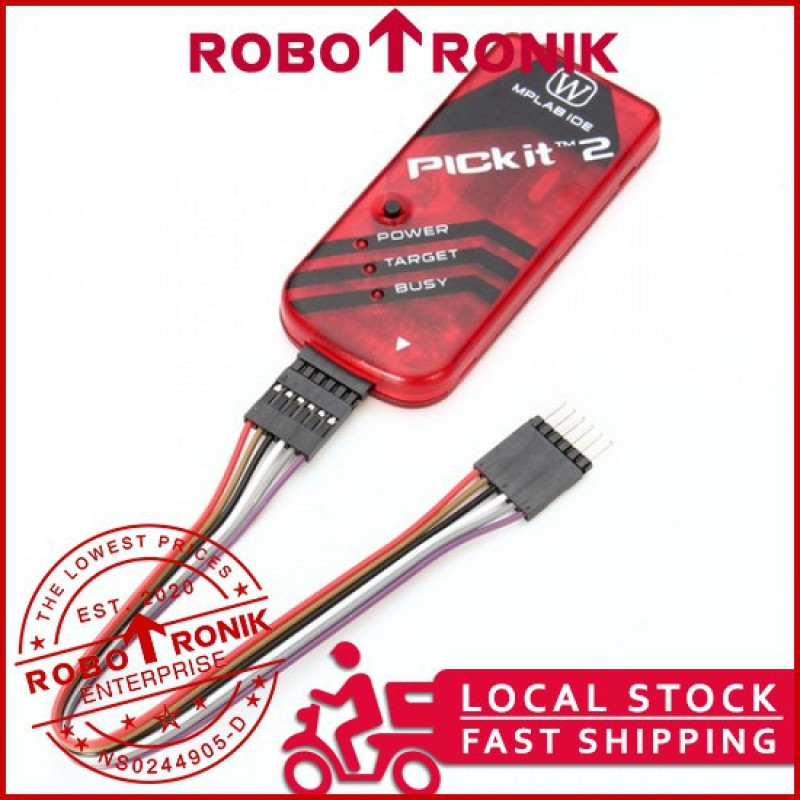

1 x Pickit2
1 x Programming cable
1 x 6pin Pin Header
1 x USB cable

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
