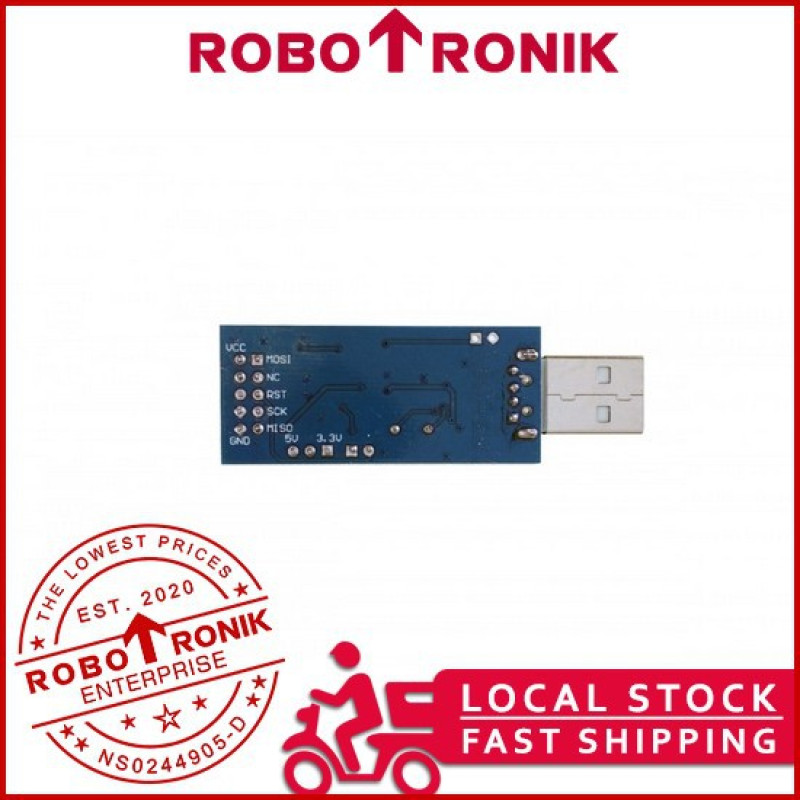

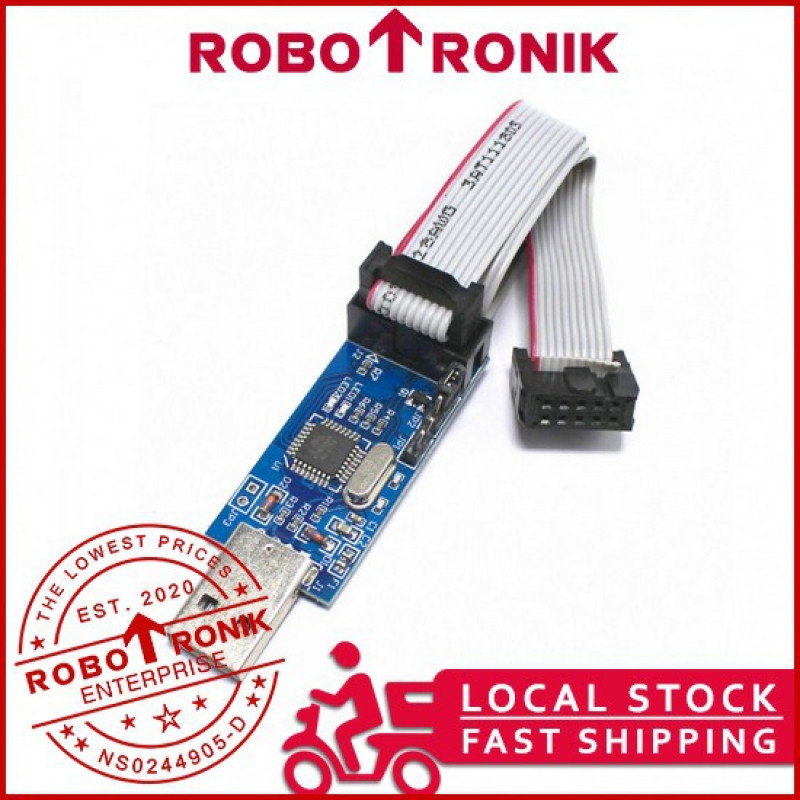

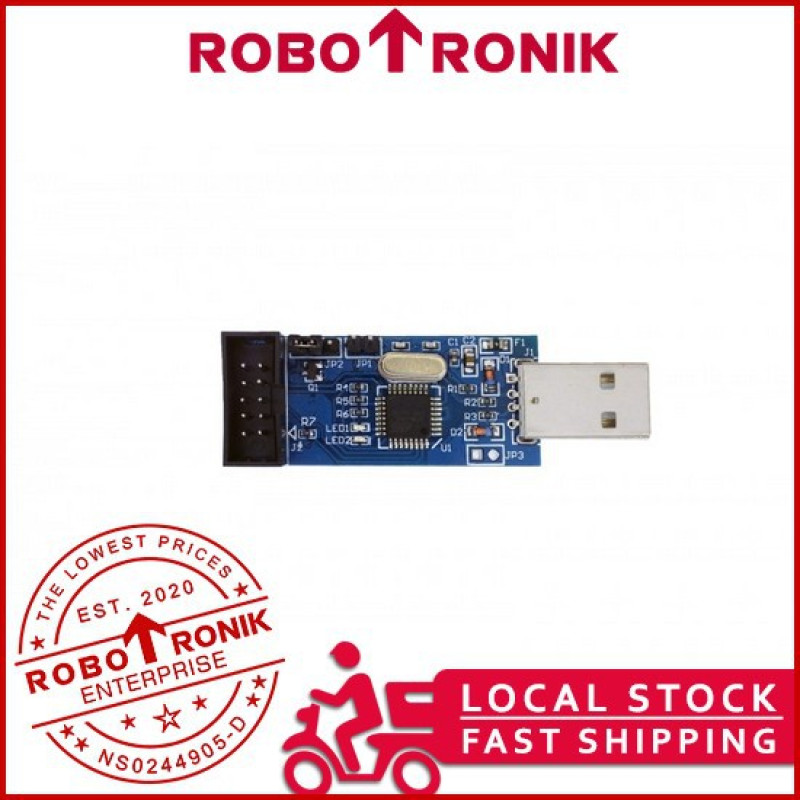

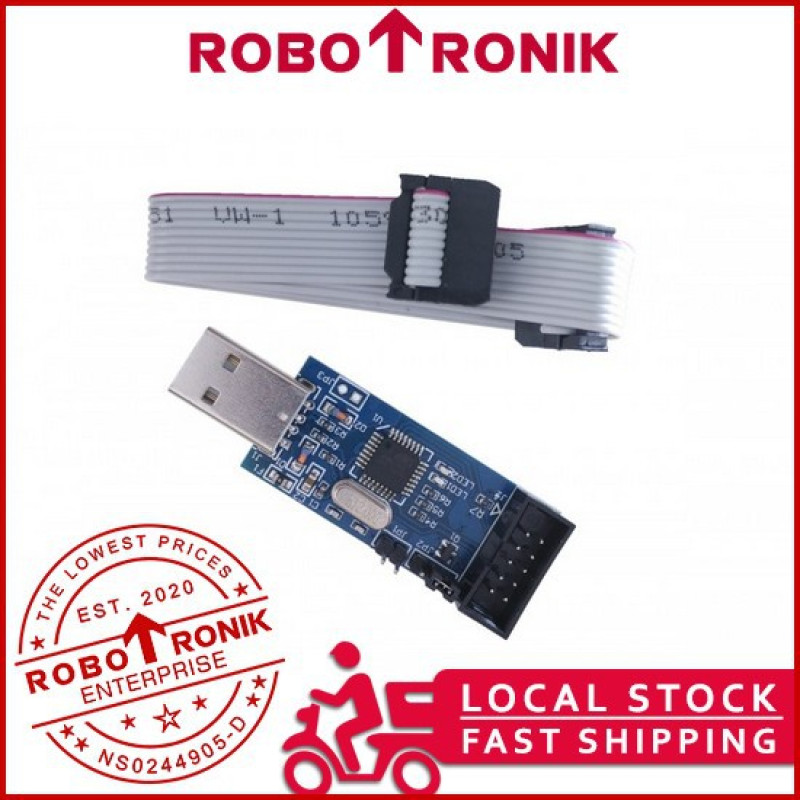

✍ This programmer is based on Thomas Fischl's USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegant. The USB interface is achieved by using an Atmega processor and the rest is done in firmware. For those interested, the firmware source code can be downloaded from the USBasp website.

===========================================

▼ Features
Supports S51 and the AVR chips
Fast and stable Standard IDC 10PIN interface
On-board ATMega8 (L)
With power and programming indicator light
On-board overcurrent protection, 20 ohm isolation resistors and resettable fuse for short-circuit prevention
Support 5V and 3.3V power supply

51 serials:
AT89S51, AT89S52, AT89S53, AT89S8252

AVR serials:
ATTiny12(L)、 ATTiny13(V), ATTiny15(L), ATTiny24(V), ATTiny25(V), ATTiny26(L),
ATTiny2313(V), ATTiny44(V), ATTiny45(V), ATTiny84(V), ATTiny85(V), AT90S2313(L),
AT90S2323(L), AT90S2343(L), AT90S1200(L), AT90S8515(L), AT90S8535(L), ATMEGA48(V),
ATMEGA8(L), ATMEGA88(V), ATMEGA8515(L), ATMEGA8535(L), ATMEGA16(L), ATMEGA162(V),
ATMEGA163(L), ATMEGA164(V), ATMEGA165(V), ATMEGA168(V), ATMEGA169(V), ATMEGA169P(V),
ATMEGA32(L), ATMEGA324(V), ATMEGA325(V), ATMEGA3250(V), ATMEGA329(V), ATMEGA3290(V),
ATMEGA64(L), ATMEGA640(V), ATMEGA644(V), ATMEGA645(V), ATMEGA6450(V), ATMEGA649(V),
ATMEGA6490(V), ATMEGA128(L), ATMEGA1280(V), ATMEGA1281(V), ATMEGA2560(V), ATMEGA2561(V),
AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2(B), AT90PWM3(B) and so on.

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
