Example:
Step down only
✅ 32V > 24V / 12V / 9V / 5V / 3.3V
✅ 24V > 12V / 9V / 5V / 3.3V
✅ 12V > 9V / 5V / 3.3V
✅ 5V > 3.3V
Unable to step up
❌ 5V > 9V / 12V / 24V / 30V
❌ 12V > 24V / 30V
▼ Features
- Wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current
- The efficiency can be up to 96%, measured at 20A, converting 24V to 12V
- Designed with 75V/80A large current dual MOS tube
- 2 heatsink that could enhance heat dissipation
- Large current 30A screw terminals
- Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output
- Stable, reliable and durable
▼ Specifications
- Input voltage: DC 6V to 40V (10V to 40V is suggested)
- Input to Output Voltage Differential: 3V min
- Output Voltage: Adjustable 1.25 - 36V DC
- Output Current: Rated 15A Continues; Peak. 20A
- Conversion efficiency: Up to 96%(24V to 12V, 20A)
- Output Ripple: 50mV (the higher the voltage, the greater the current, the greater ripple)
- Working frequency: 150KHZ
- Short Circuit Protection: Self-recovery (Cannot short circuit for a long time)
- Operating temperature: Industrial grade (-40 to +75°C)
- Size: 62 x 52 x 27mm
| Voltage Converter | |
| Input Minimum (Voltage) | 10 |
| Input Maximum (Voltage) Less than | 40 |
| Output Minimum (Voltage) | 1.25 |
| Output Maximum (Voltage) Less than | 36 |
| Output Load Current (A) | 15 |
| Output Load Max. Current (A) Heat-Sink Required | 20 |

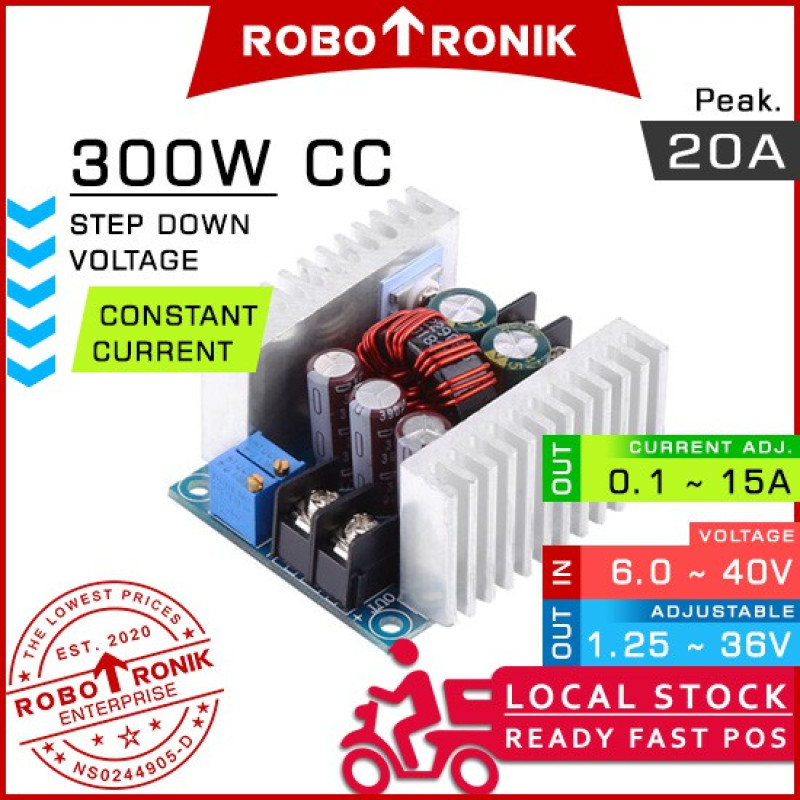

DC Step Down XL4016 300W CC Peak.20A Adjustable Current & Voltage Regulator Module Buck Boost - 3.3V 5V 9V 12V 24V
- Product Code: POWER-STEP-DOWN-300W-CC
- Availability: Out Of Stock
- RM29.99
-
RM19.29
