Example:
Step down only
✅ 20V > 12V / 9V / 5V / 3.3V
✅ 12V > 9V / 5V / 3.3V
✅ 5V > 3.3V
Unable to step up
❌ 5V > 9V / 12V / 24V
❌ 12V > 24V
===========================================
▼Features:
Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -
▼Applications:
HM dedicated DC-DC step-down module (supports 2S ~ 5S lithium polymer), DIY mobile power, car power,
communications equipment supply, there are a variety of size and weight for demanding applications.
===========================================
▼Specifications:
- Module Properties: Non-isolated Buck
- Rectification: Synchronous rRectification
- Input Voltage: DC 4.75 - 23V (Input must 1.5V greater than output)
- Output Voltage: DC 1.0 - 17V
- Output Current: Rated 1.8A Continues (Peak 2.5A Max, Heat-sink required)
- Conversion efficiency: 96% Max.
- Switching Frequency: 340KHz
- Output Ripple: 30mV (no-load)
- Load regulation: ±0.5%
- Voltage regulation: ±2.5%
- Operating temperature: Industrial grade -40 to +85°C
- Size: 17mm * 11mm * 3.8mm (L * W * H)
▼Package Converter:
1 x Mini 360
| Voltage Converter | |
| Input Minimum (Voltage) | 4.75 |
| Input Maximum (Voltage) Less than | 23 |
| Output Minimum (Voltage) | 1 |
| Output Maximum (Voltage) Less than | 17 |
| Output Load Current (A) | 1.8 |
| Output Load Max. Current (A) Heat-Sink Required | 2.5 |

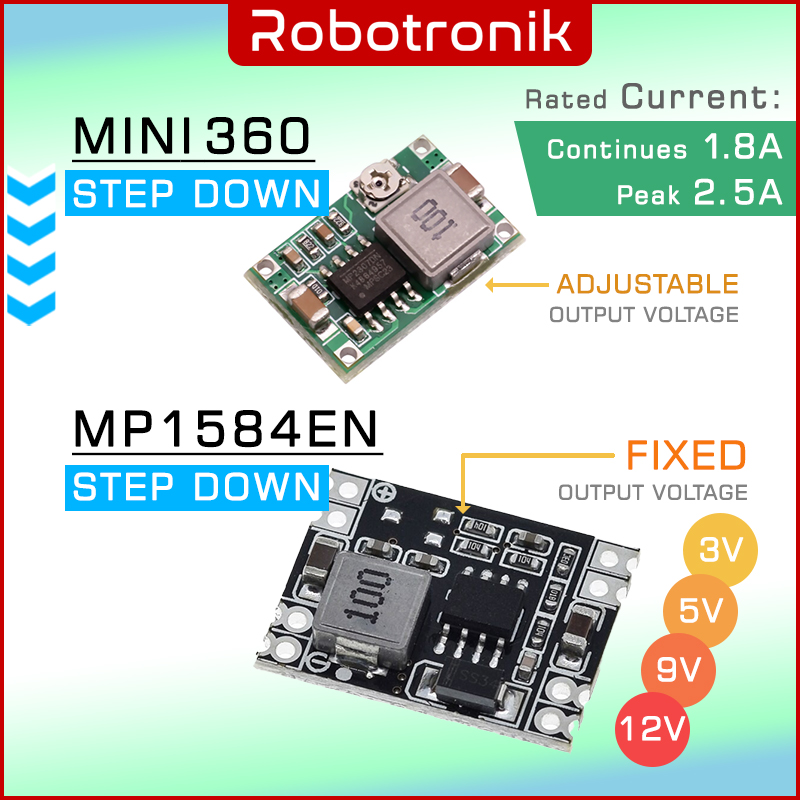

DC Step Down Mini-360 ADJ / MP1584EN Adjustable Voltage Buck Converter - 1.5V 3.3V 5V 6V 9V 12V 24V
- Product Code: POWER-STEP-DOWN-MINI
- Availability: 10000
RM0.00
