✍ The XL4016 / XH-M404 is an adjustable DC voltage regulator capable of 8A large load capacity which provides fixed DC power to the load connected.
Example:
Step down only
✅ 32V > 24V / 12V / 9V / 5V / 3.3V
✅ 24V > 12V / 9V / 5V / 3.3V
✅ 12V > 9V / 5V / 3.3V
✅ 5V > 3.3V
Unable to step up
❌ 5V > 9V / 12V / 24V / 30V
❌ 12V > 24V / 30V
▼Specifications:
- Input voltage: DC 4 - 38V
- Input Current: max. 8A Peak
- Output voltage: DC 1.25 ~ 36V ( adjustable )
- Output Current: Rated 5A continues, max. 8A Peak
- Output power: 200W
- Voltage mode: PWM modulation
- Operating Frequency: 180KHz
- Conversion efficiency: Up to 94% (Output voltage higher, the higher the efficiency)
- Size: 70x47x 29mm (LxWxH)
▼How to set-up before use:
Make sure that the power input is not greater than input voltage writen in specification.
Set the multimeter to DC Voltage.
Gently turn the adjustment potentiometer to your expecting voltage.
(Clockwise increase , counterclockwise reduce)
Refer to the 3-digit display for output voltage while adjusting.
| Voltage Converter | |
| Input Minimum (Voltage) | 4 |
| Input Maximum (Voltage) Less than | 38 |
| Output Minimum (Voltage) | 1.25 |
| Output Maximum (Voltage) Less than | 36 |
| Output Load Current (A) | 5 |
| Output Load Max. Current (A) Heat-Sink Required | 8 |

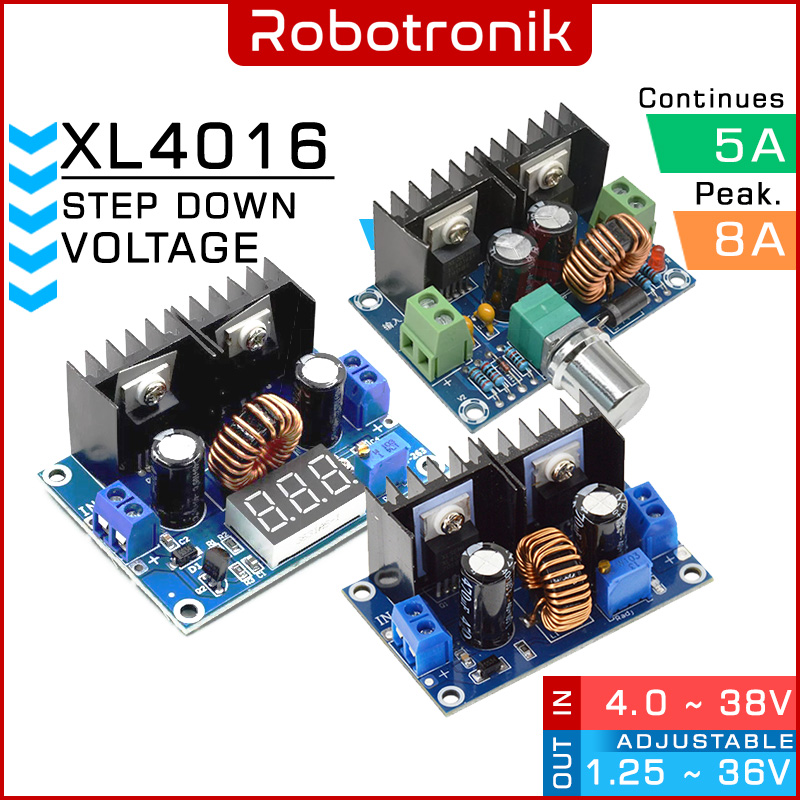

DC-DC Step Down XL4016 (Peak 8A) Adjustable Voltage Buck Converter
- Product Code: POWER-STEP-DOWN-XL4016
- Availability: 10000
RM0.00
