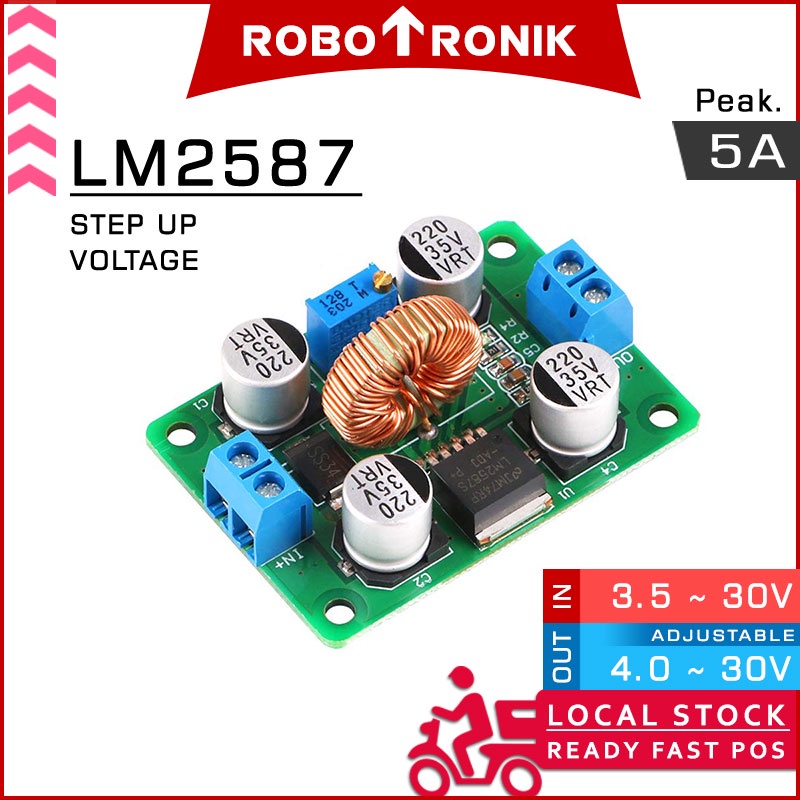

This LM2587 DC – DC Boost Converter Module Breakout Board is useful for stepping up a DC power supply to a higher DC power supply. It uses the LM2587 boost converter IC from Texas Instruments.
It is useful for applications requiring stable, constant power from a DC power supply.
Example:
Step up only
✅ 5V > 9V / 12V / 24V / 30V
✅ 9V > 12V / 24V / 30V
✅ 12V > 24V / 30V
Unable to step down
❌ 24V > 12V
❌ 12V > 5V
▼ Features:
- Input Voltage Range: 3.5V – 30V
- Output voltage range: 4.0V-30V (Please ensure that the output setting voltage is higher than the input voltage)
- Input maximum current: 5A
- Continuous Current: 3A
- Good heat dissipation
- Output voltage and input voltage ratio is not greater than 3
▼ Package includes:
- 1x DC-DC Converter Module
▼ How to use
Connect your power input to the terminal blocks labelled IN+ (positive input power supply) and IN- (GND input).
Connect a multimeter to the terminals marked OUT+ and OUT- and adjust the small blue potentiometer on the board until desired voltage is reached.
Connect your output to the terminals marked OUT + and OUT-.
| Voltage Converter | |
| Input Minimum (Voltage) | 3.5 |
| Input Maximum (Voltage) Less than | 30 |
| Output Minimum (Voltage) | 4 |
| Output Maximum (Voltage) Less than | 30 |
| Output Load Current (A) | 3 |
| Output Load Max. Current (A) Heat-Sink Required | 5 |
DC-DC Step Up LM2587, 5A / 30w Adjustable Voltage Regulator Module Boost Converter
- Product Code: POWER-STEP-UP-LM2587-5A
- Availability: 3
- RM15.99
-
RM12.99
