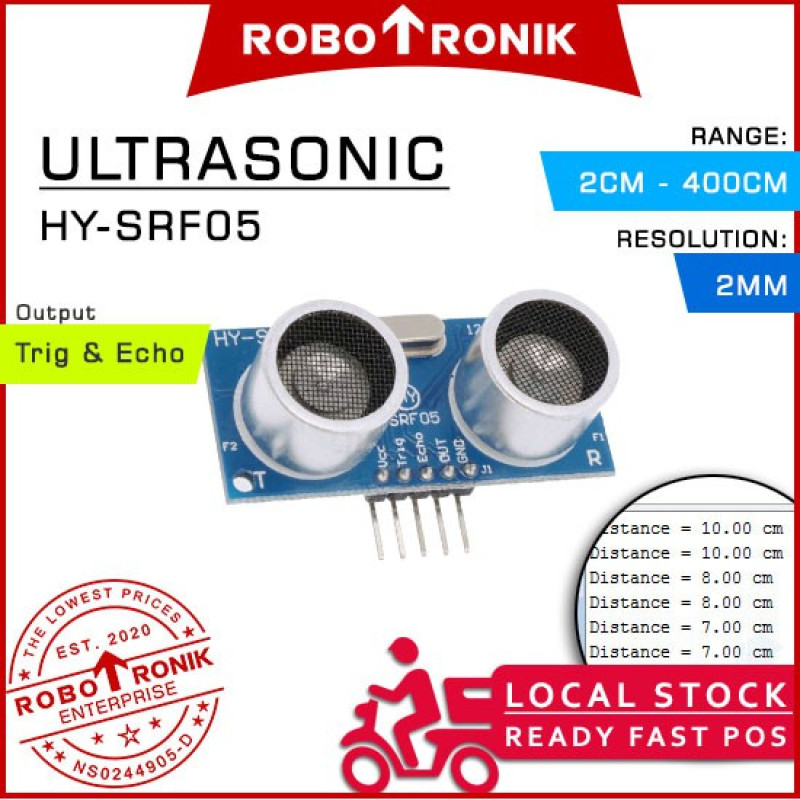

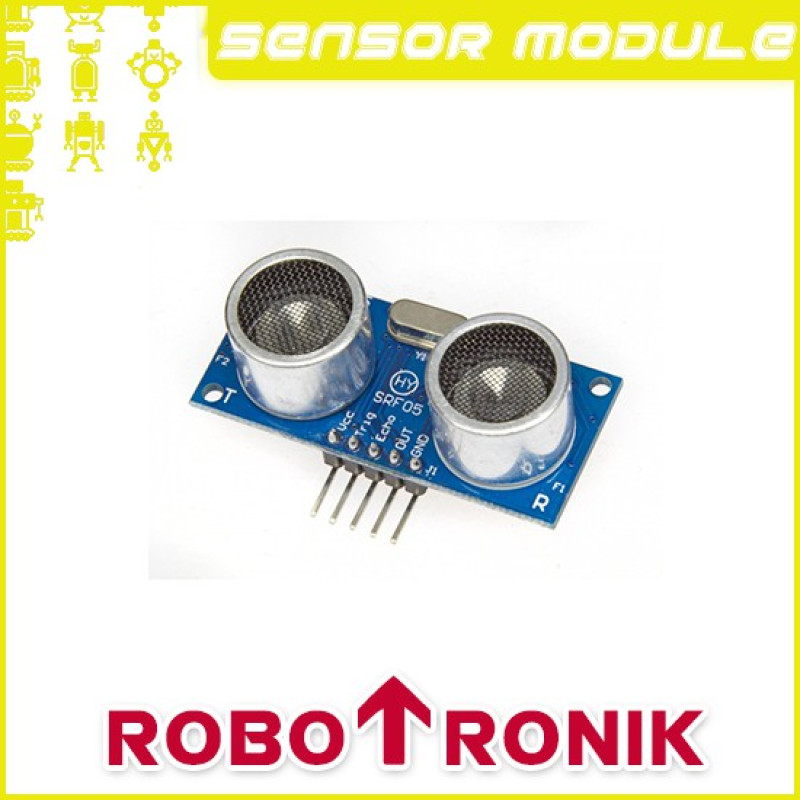

✍ The SRF05 is an evolutionary step from the SRF04, and has been designed to increase flexibility, increase range, and to reduce costs still further. As such, the SRF05 is fully compatible with the SRF04. Range is increased from 3 meters to 4 meters. A new operating mode (tying the mode pin to ground) allows the SRF05 to use a single pin for both trigger and echo, thereby saving valuable pins on your controller. When the mode pin is left unconnected, the SRF05 operates with separate trigger and echo pins, like the SRF04. The SRF05 includes a small delay before the echo pulse to give slower controllers such as the Basic Stamp and Picaxe time to execute their pulse in commands.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features
Provides precise, non-contact distance measurements to 4 m range
Ultrasonic measurements work in any lighting condition, making this a good choice to supplement infrared object detectors
5-pin header (2.54 mm spacing) makes it easy to connect to a development board, directly or with an extension cable, no soldering required
Narrow acceptance angle

▼ Application Ideas
Security systems
Interactive animated exhibits
Parking assistant systems
Robotic navigation

===========================================

▼ Details:-
Range: Approximately to 4 m (12 feet)
Resolution: 2 mm
Power requirements: +5 VDC
Current: 10 – 40 mA active
Effectual angle: <15°
Sound Frequency: 40 kHz
Input trigger signal: 10us TTL impulse
Communication: positive TTL pulse
Dimensions: 22 x 46 x 16 mm(0.81 x 1.8 x 0.6 in )
Operating temperature range: 0 to +70 °C (+32 to +158 °F)

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
