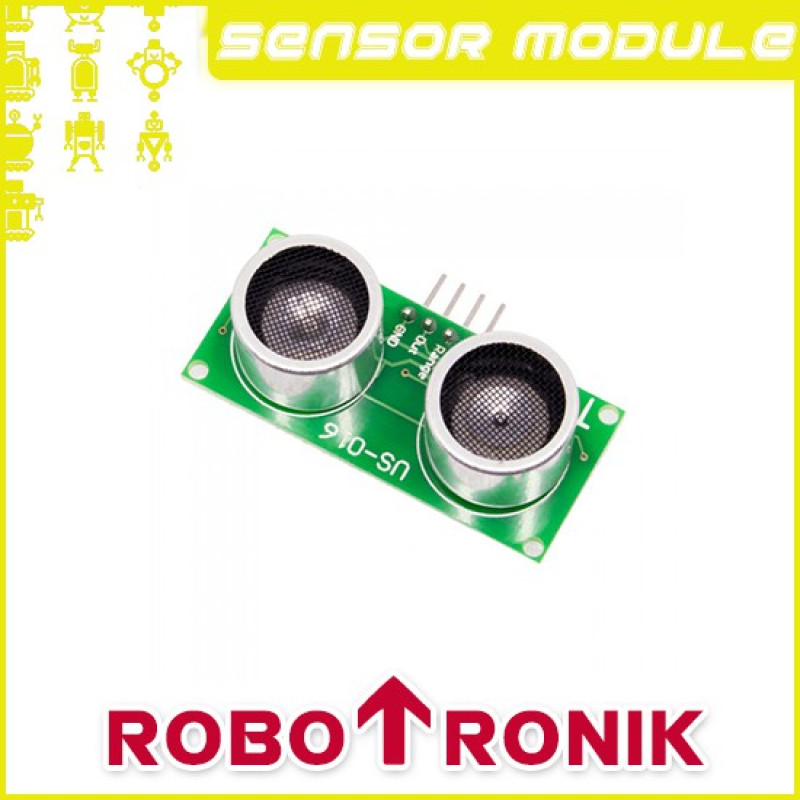

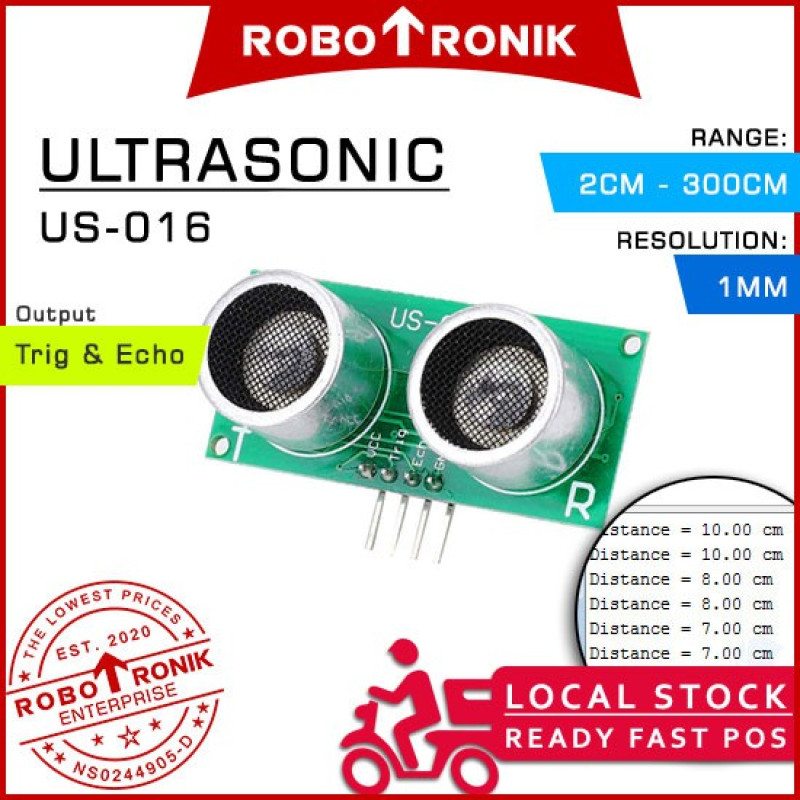

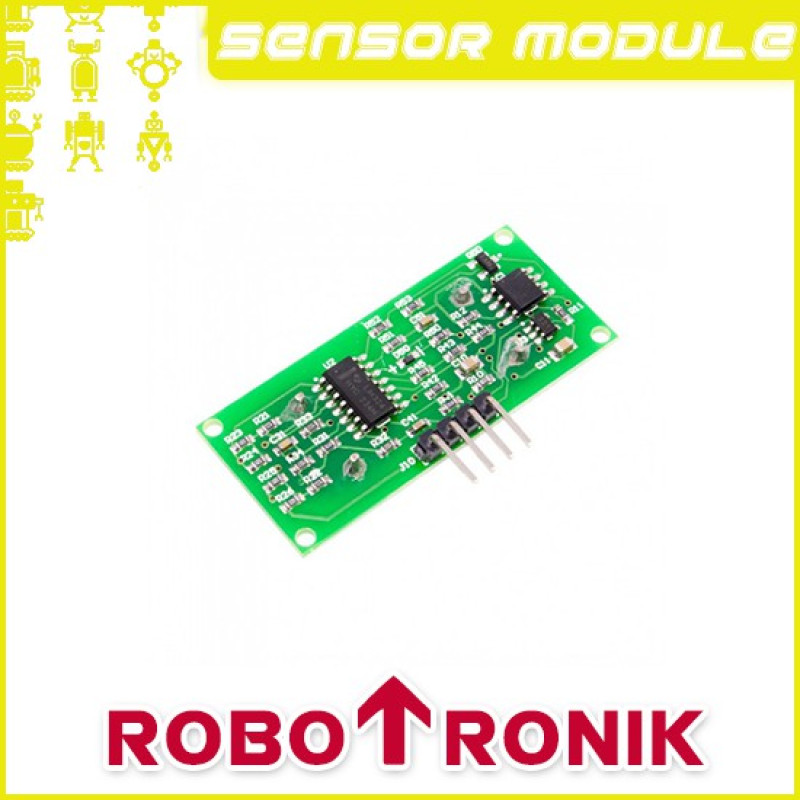

✍US-016 is the only one ultrasonic with analog output of ranging module, analog voltage output proportional to the distance value,and can be easily connected to other systems, stable and reliable.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

Specifications
Operating Voltage: DC 5V
Working Current: 3.8mA
Working temperature: -20 ~ + 70 °C
Induction angle: less than 15 degrees
Detection distance: 2cm - 300cm
Detection accuracy: 0.3cm + 1%
Output: analog voltage (0 ~ Vcc)
Resolution: 1mm
Size: 45mm * 20mm * 1.2mm

===========================================

✍US-016 direct measure the distance into an analog voltage output, the output voltage is proportional to the measured distance. When the measure distance below 1m , the analogRead output value is cm. When the measure distance below 3m , the analogRead output value x3 is cm.

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
