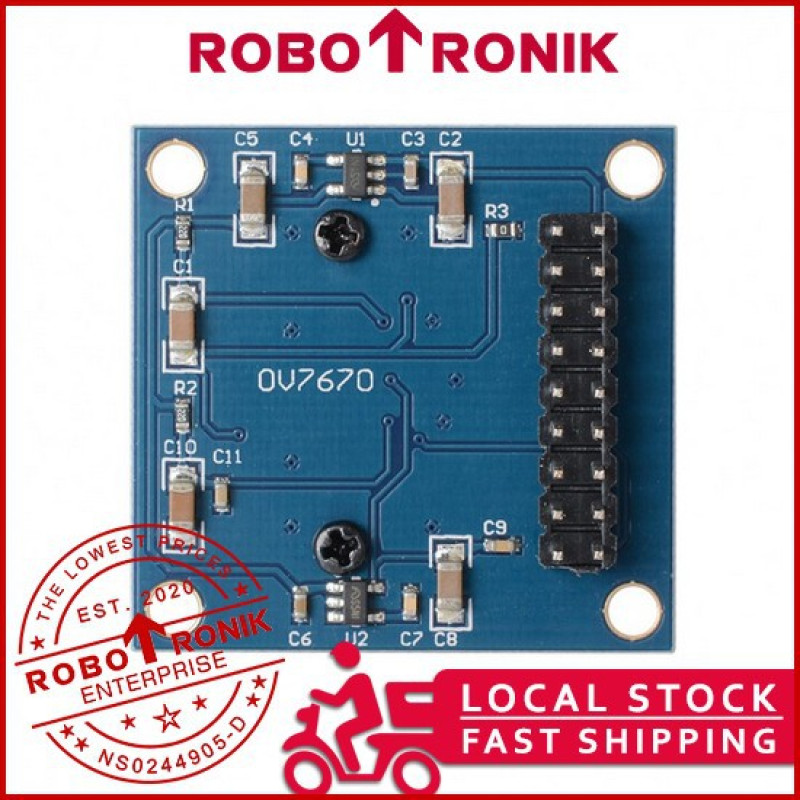

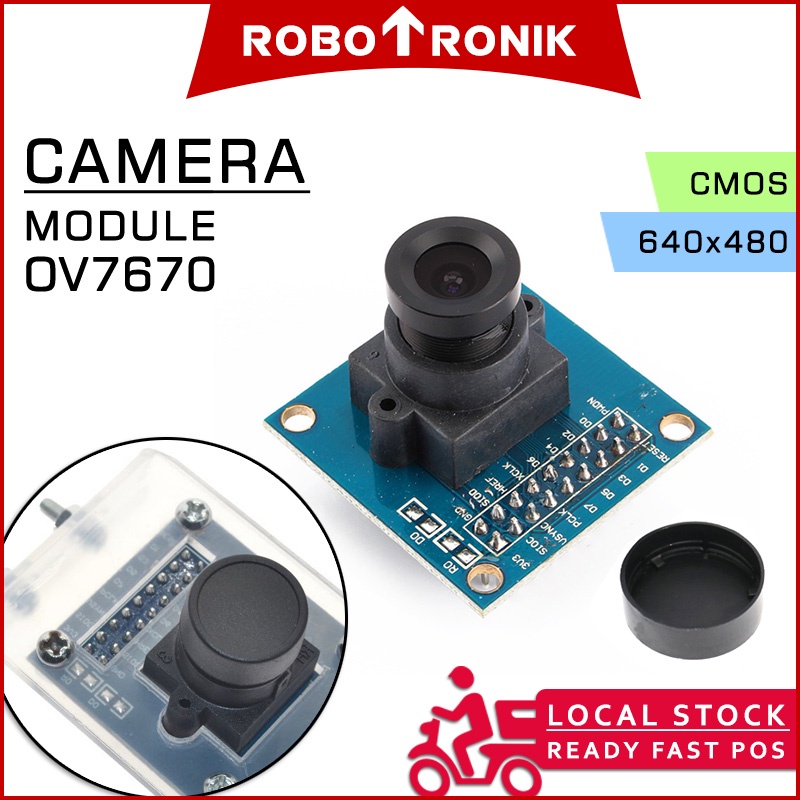

✍ CMOS 640x480, 8bit output, Serial Camera with Rolling Shutter based on OmniVision OV7670.

✍ OV7670 image sensor,small size,low voltage,providing single-chip VGA camera and image processor for all functions. By SCCB bus control ,you can output the entire frame , sub-sampled , taking a variety of windows , etc. Resolution 8 affect the data .The product is VGA images up to 30 frames / sec.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ Features
Mounted with high quality F1.8 / 6mm lens
High sensitivity for low-light operation
Low operating voltage for embedded application
Standard SCCB interface compatible with I2C interface
8bit Output Format (YUV/ YCbCr 4:2:2/RGB565-555-444/RAW RGB Data)
Serial Camera Control Bus (SCCB)
Support VGA, CIF and from CIF to 40 x 30 format
Vario Pixel method for sub-sampling
Auto Image Control: AEC, AGC, AWB, ABF, ABLC
Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming
ISP includes noise reduction and defect correction
Support image scaling
Lens shading correction
Flicker 50/60Hz auto detection
Color saturation level auto adjust
Edge enhancement level auto adjust
De-noise level auto adjust

===========================================

▼ Specifications
Resolution 640×480 VGA
Optical size: 1/6 inch
Vision Angle: 25 degree.
Max. Frame Rate: 30fps VGA.
Sensitivity: 1.3V / (Lux-sec).
Working Voltage: DC 3.3V with onboard regulator
Operating Power: 60mW/15fps
Sleeping Mode: <20μA.
Operating Temperature: -30 to 70 deg C.
Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
Signal to Noise Ratio: 46 dB
DynamicRange: 52 dB
Browse Mode: By row
Electronic Exposure: 1 to 510 row
Pixel Coverage: 3.6μm x 3.6μm
Duck Current: 12 mV/s at 60 °c
PCB Size (L x W): 3.5 x 3.5 cm

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
