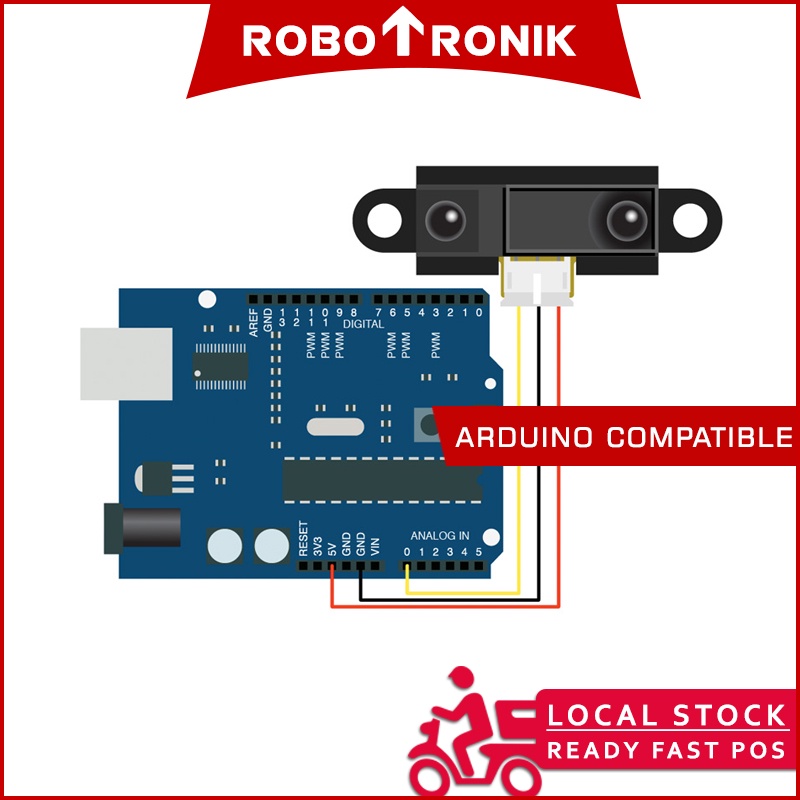

✍ The Sharp distance sensor's are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar range-finders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼Features:
Analog Interface
External control circuit is unnecessary
Japanese Solderless Terminal (JST) Connector

===========================================

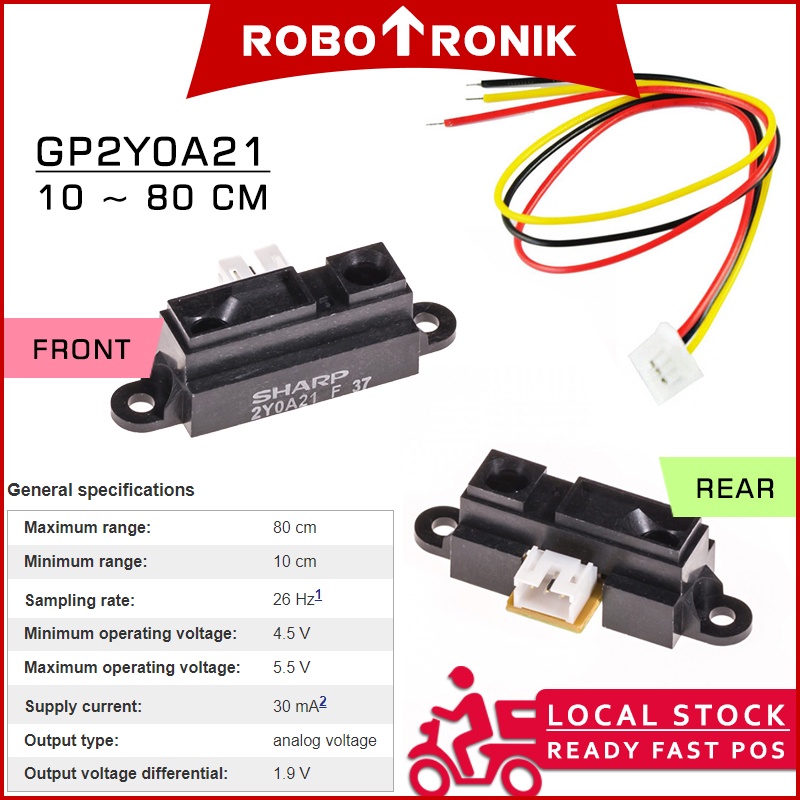

SHARP GP2Y0A21 ▼Specifications:
Distance measuring range: 10 to 80 cm (4" to 32")
Maximum measurement angle: >40°
Operating voltage: 4.5 V to 5.5 V DC
Average power consumption : 35mA
Peak power consumption : about 200mA
Frequency of updates/cycle : 25 Hz / 40ms
Response time: 38 ± 10 ms
Output type: Analog voltage (3.1V at 10cm to 0.4V at 80cm)
Output voltage differential over distance range: 1.9 V (typical)
Analog output noise : < 200 mV
Weight: 3.5 g

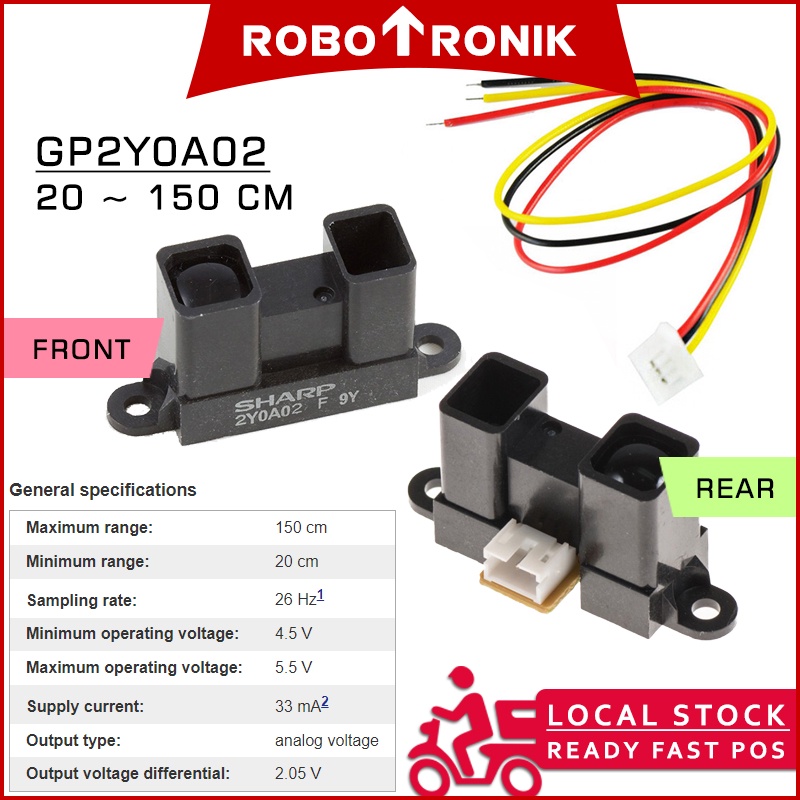

SHARP GP2Y0A02 ▼ Specifications:
Distance measuring range: 20 - 150 cm (8" to 60")
Maximum measurement angle: >40°
Operating voltage: 4.5 V to 5.5 V DC
Average power consumption : 35mA
Peak power consumption : 50mA
Frequency of updates/cycle : 25 Hz / 40ms
Response time: 39 ± 10 ms
Output type: Analog voltage (3.1V at 10cm to 0.55V > 80cm)
Output voltage differential over distance range: 1.8 V (typical)
Analog output noise : < 200 mV
Weight: 3.5 g

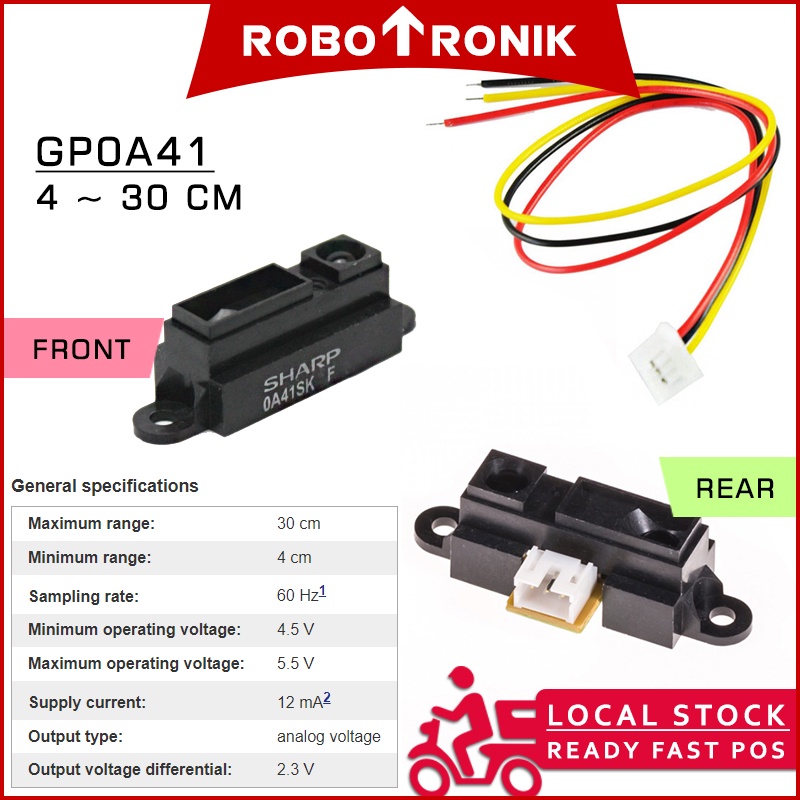

SHARP GP0A41 ▼ Specifications:
Distance measuring range: 4 cm to 30 cm (1.5" to 12")
Maximum measurement angle: >40°
Operating voltage: 4.5 V to 5.5 V DC
Average power consumption : 22mA
Peak power consumption : 400mA
Frequency of updates/cycle : 16.5 ± 4 ms
Output type: Analog voltage (2.55V at 4cm to 0.55V at 30cm)
Output voltage differential over distance range: 2.25 V (typical)
Operating Temperature: -10°C ~ 60°C
Size: 44.5 mm × 18.9 mm × 13.5 mm
Weight: 3.5 g

▼Package Included:
1 x Sensor
1 x 3 wires with connector
