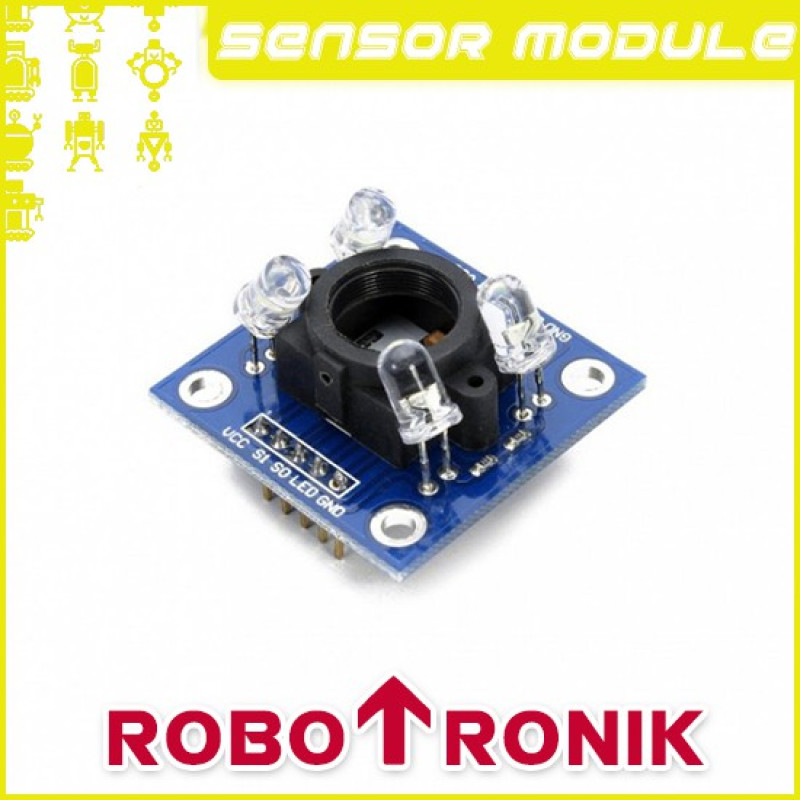

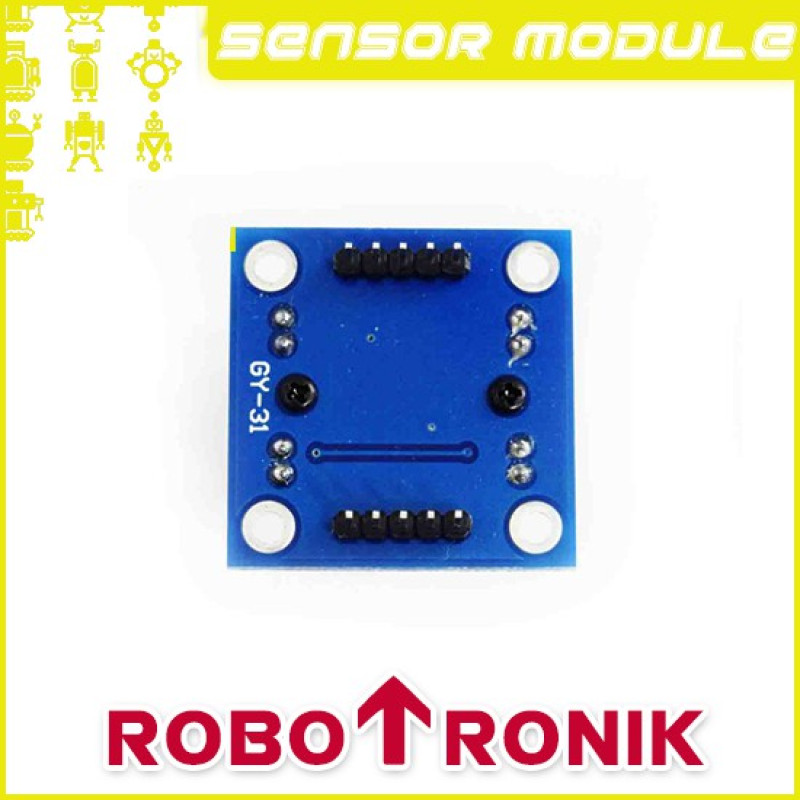

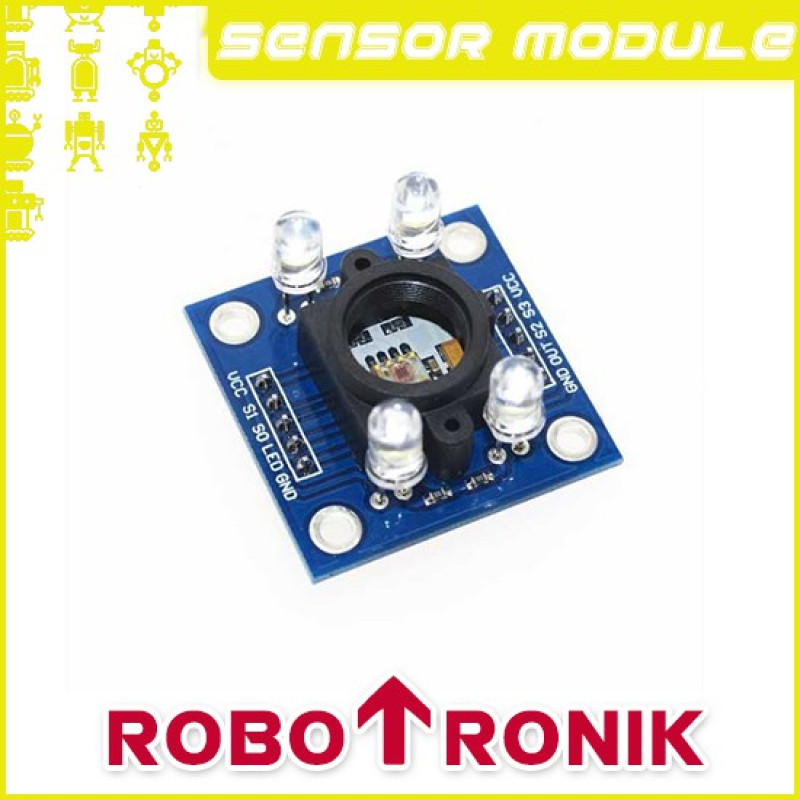

✍ Color Sensor TCS3200 (also known as GY-31)

✍ The TCS230 is a color light-to-frequency converter on single CMOS integrated circuit. The output is a square wave(50% duty cycle) with frequency directly proportional to light intensity (irradiance). The full-scale output frequency can be scaled by one of three preset values via two control input pins. Output enable (OE) places the output in the high-impedance state for multiple-unit sharing of a microcontroller input.

✍ Library example code includes:
Simple blocking read from the sensor
Simple RGB non-blocking read
Example incorporating sensor calibration
Color learning and matching

===========================================

▼ Features:
The TCS3200 is TCS230 upgraded version better
Power supply DC 3v - 5v
Resistance to light interference
White LED can be controlled on, off.
Can detect non-luminous object color
Best detection distance 1cm
Chip pins all has drawn for standard 100. Put the needle (2.54 mm).
Mil-convenient for bitmap board.
Programmable color and full-scale output frequency.
Communicate directly with a microcontroller.
Low-profile surface mount package.
Item size: 31*23*10mm
Net weight: 5g

▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖▖
