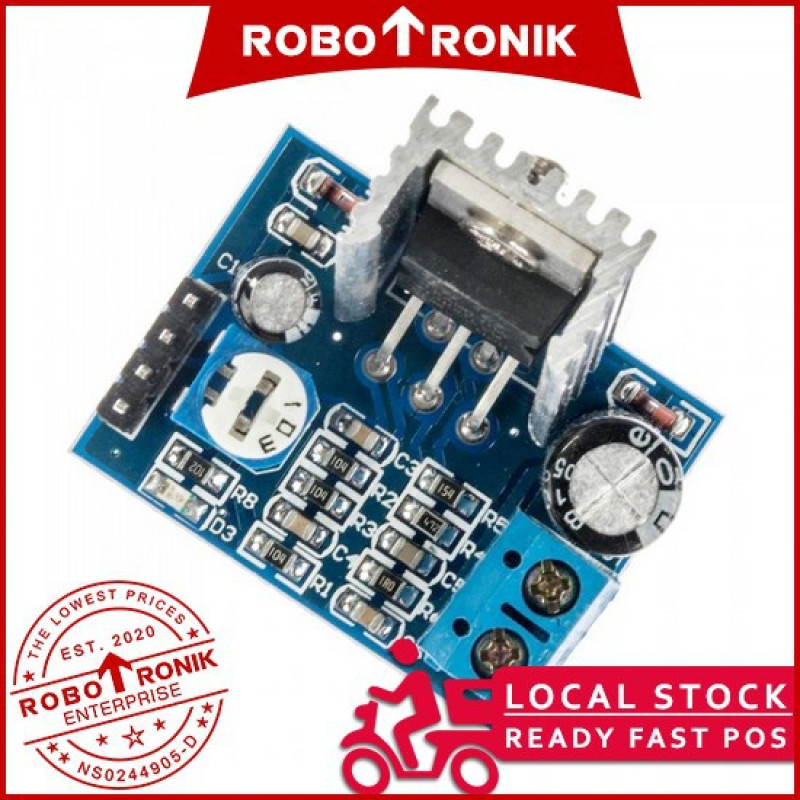

✍ This module is based on the TDA2030 audio amplifier amplifier chip, which is capable of 18 W output power with low harmonic distortion.

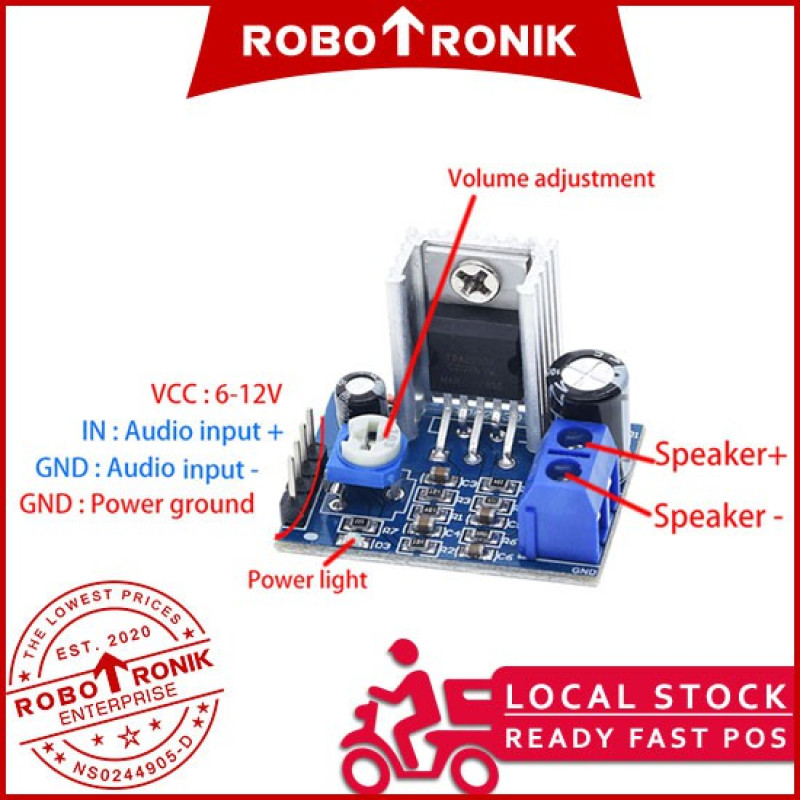

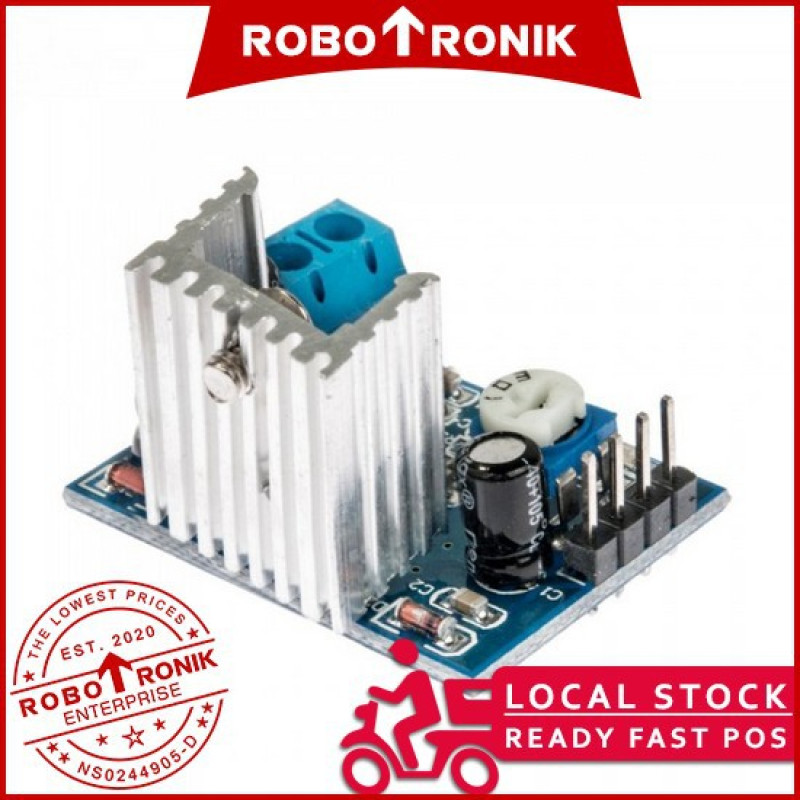

The power supply and audio input are through header pins, and the speaker output through a screw block. It also has a 10-kΩ preset for adjusting the volume control. This module also has a heat sink fitted for the amplifier IC.
===========================================
▼ Specifications :
On-board TDA2030 audio amplifier chip
Operating Voltage Range: 6V to 12V DC
18W mono amplifier circuit design
On-board terminal blocks for speaker
On-board 10K potentiometer for volume adjustment
On-board power indicator
The main pins have been routed to a standard pin header
Board Size: 32 x 24 mm

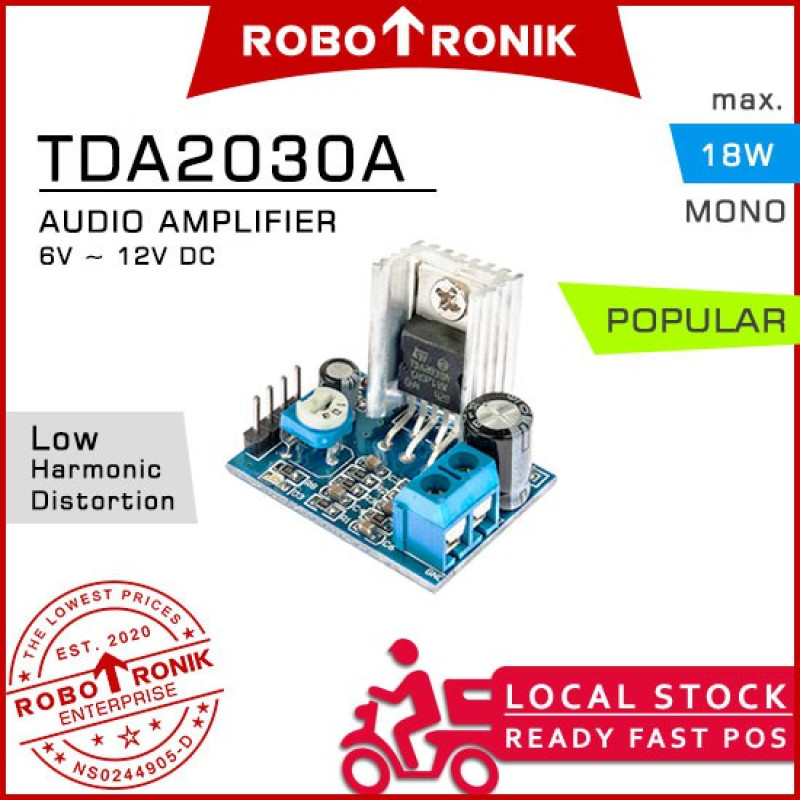

TDA2030A Audio Amplifier Module, Mono Single Channel (up to 18W) TDA 2030 Home Theater, DIY Audio Music, Mobile Phone
- Product Code: MODULE-AUDIO-AMPLIER-TDA2030A
- Availability: Out Of Stock
- RM3.99
-
RM3.29
- Ex Tax: RM3.29
