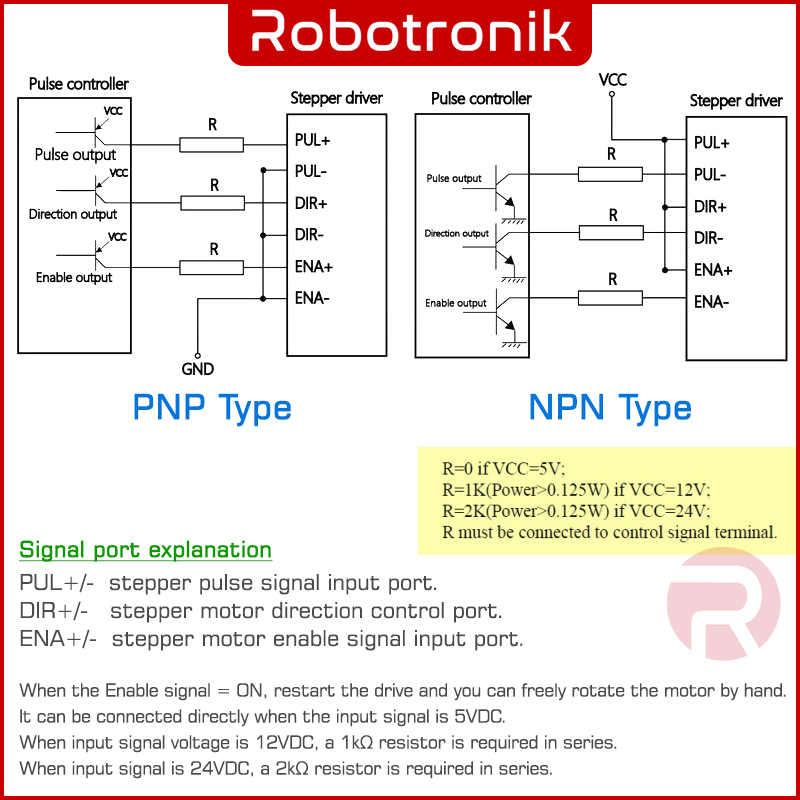

Applications:
Suitable for a wide range of stepping motors, from NEMA size 17, 23, 34 to 42. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed, and high precision.
Environment: Avoid dust, oil fog and corrosive gases

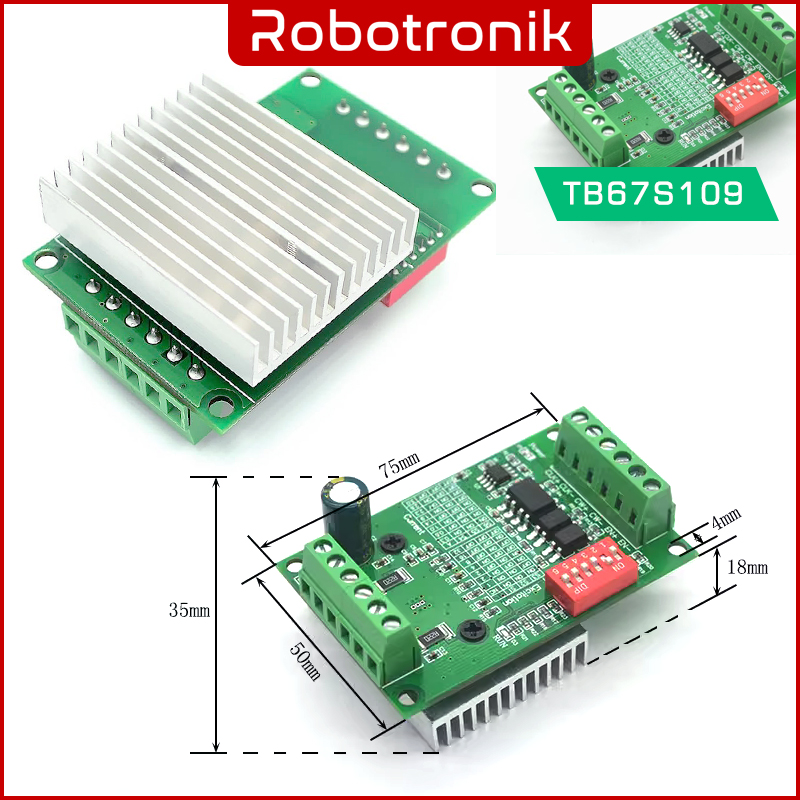

TB67S109
 |
 |
 |
| Output Current: | 0.5 ~ 3A |
| Output Peak Current: | 3A |
| Input Voltage: | 10 ~ 30VDC |
| Micro Step: | Full step, Half step, 1/4, 1/8, 1/16, 1/32 |
| Cooling: | Natural |

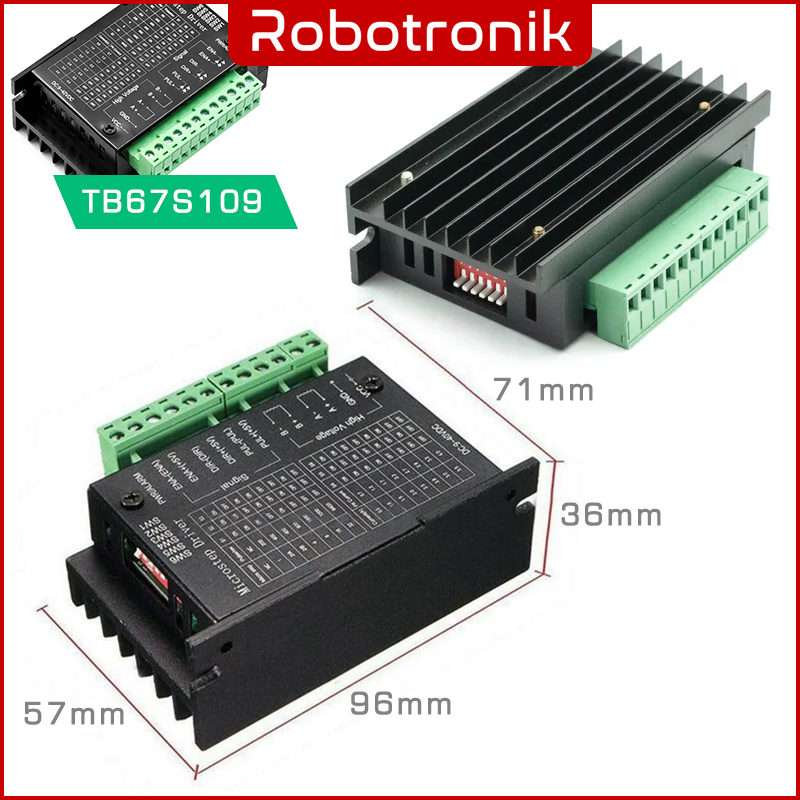

TB67S109 Box
 |
 |
 |
| Output Current: | 0.5 ~ 4A |
| Output Peak Current: | 4A |
| Input Voltage: | 9 ~ 42VDC |
| Micro Step: | Full step, Half step, 1/4, 1/8, 1/16, 1/32 |
| Cooling: | Natural |

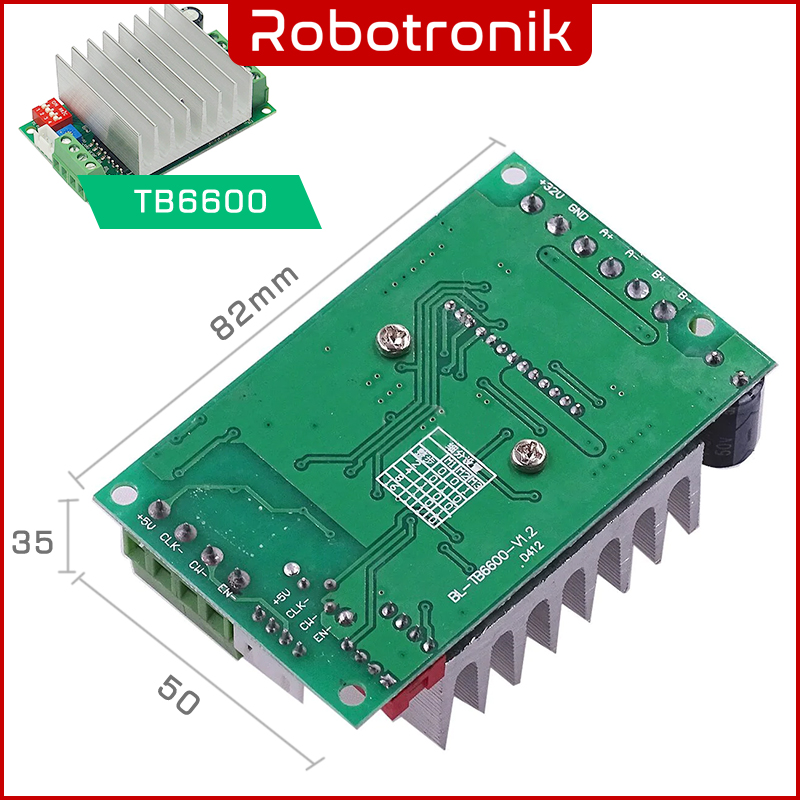

TB6600
 |
 |
 |
| Output Current: | 1.0 ~ 4.5A |
| Output Peak Current: | 4.5A |
| Input Voltage: | 10 ~ 30VDC |
| Micro Step: | Full step, Half step, 1/4, 1/8, 1/16 |
| Cooling: | Natural |
TB6600 Features:
- Automatic half-current function. And a semi-automatic flow switch, easy to use
- High-speed optical coupling 6N137, ensures high speed without losing a step
- Printed label on the back of PCB and micro step setup instructions
- Large heat sink, good heat dissipation
- Common anode input mode, two input interface for wiring convenient
- Single-chip bipolar sinusoidal micro-step stepping motor driver
- BiCD 0.13 (50 V) process
- Ron (upper + lower) = 0.4 Ω (typ.)
- Forward and reverse rotation control available
- Built-in input pull-down resistance: 100 kΩ (typ.)
- Output short-circuit protection
- Output monitor pins (ALERT): Maximum of IALERT = 1 mA
- Output monitor pins (MO): Maximum of IMO = 1 mA
- Equipped with reset and enabled pins
- Single power supply
- When the CLK has a signal, the motor runs, when there is no signal, it will automatically run in half-current mode to lock the motor.

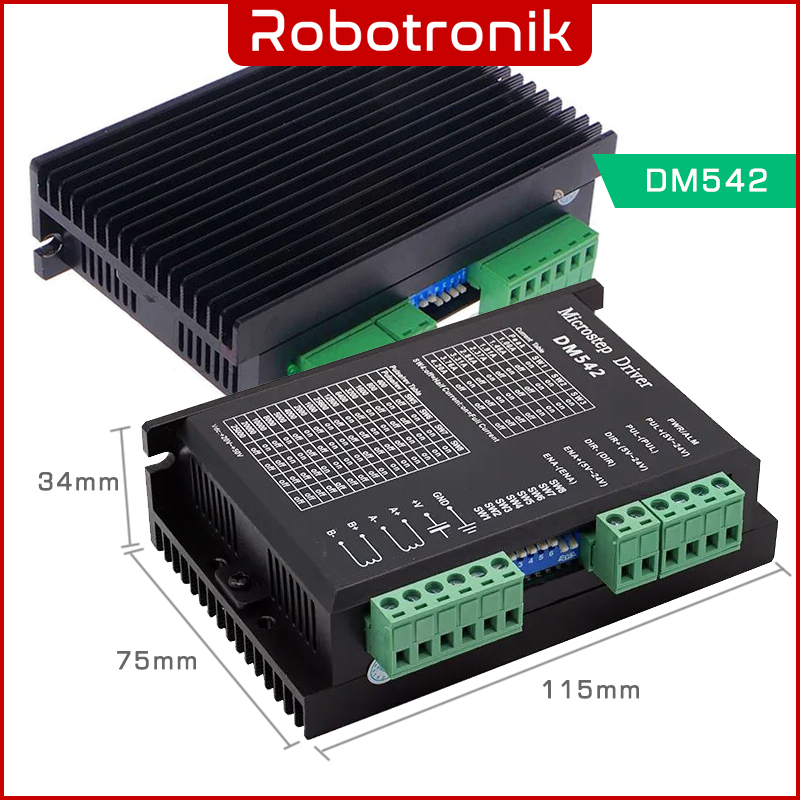

DM542
 |
 |
 |

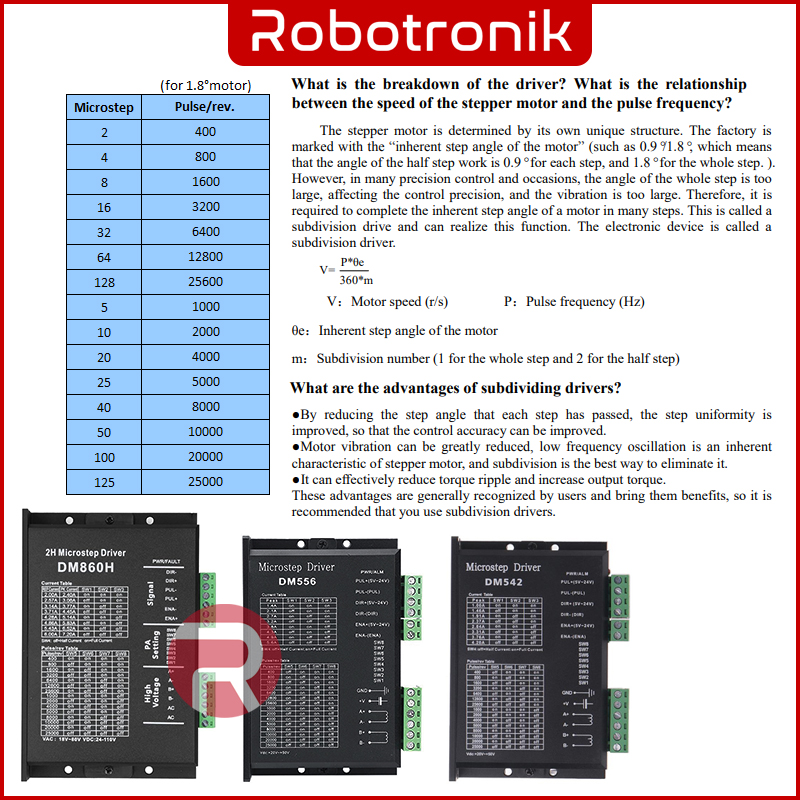

| Output Current: | 1 ~ 4.2A 8 output current settings via DIP Switches |
| Output Peak Current: | 4.2A |
| Input Voltage: | 20 ~ 50VDC |
| Subdivision: | Half step, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 |
| Logic Signal Current: | 7~16mA (Typical 10mA) |
| Pulse Input Frequency: | 0~200kHz |
| Pulse Width: | 2.5μS |
| Isolation Resistance: | 500MΩ |
| Cooling: | Natural |

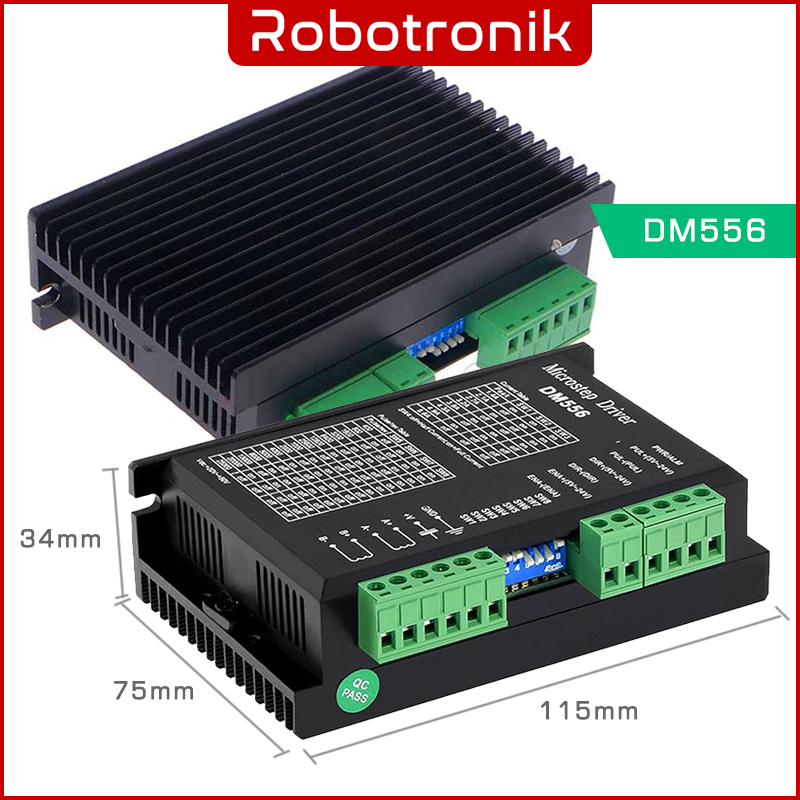

DM556
 |
 |
 |
| Output Current: | 1.4 ~ 5.6A 8 output current settings via DIP Switches |
| Output Peak Current: | 5.6A |
| Input Voltage: | 20 ~ 50VDC |
| Subdivision: | Half step, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 |
| Logic Signal Current: | 7~16mA (Typical 10mA) |
| Pulse Input Frequency: | 0~200kHz |
| Pulse Width: | 2.5μS |
| Isolation Resistance: | 500MΩ |
| Cooling: | Natural |
DM860H
 |
 |
 |
| Output Current: | 2 ~ 6A 8 output current settings via DIP Switches |
| Output Peak Current: | 6A |
| Input Voltage: | 20 ~ 50VDC |
| Subdivision: | Half step, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 |
| Logic Signal Current: | 7~16mA (Typical 10mA) |
| Pulse Input Frequency: | 0~200kHz |
| Pulse Width: | 2.5μS |
| Isolation Resistance: | 500MΩ |
| Cooling: | Natural |

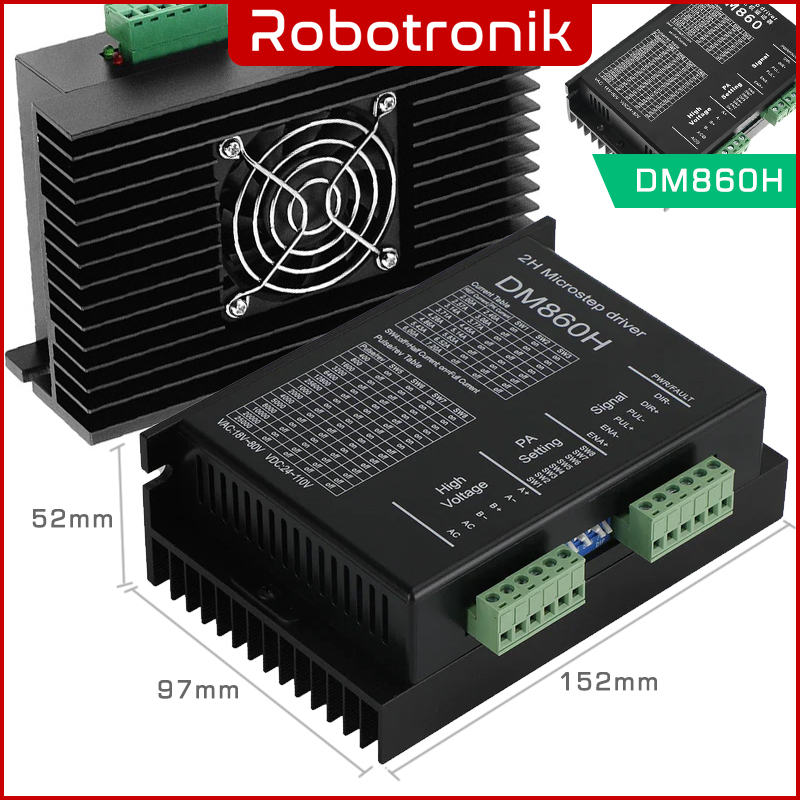

DM860H w/ Cooling Fan
- Anti-Resonance provides optimal torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
- 15 selectable microstep resolutions
- Soft-start with no “jump” when powered on
- Input voltage 18-80VAC or 24V—110VDC
- 8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
- Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 2-phase and 4-phase motors
- Over-voltage, over-current protections
