▼ Specifications

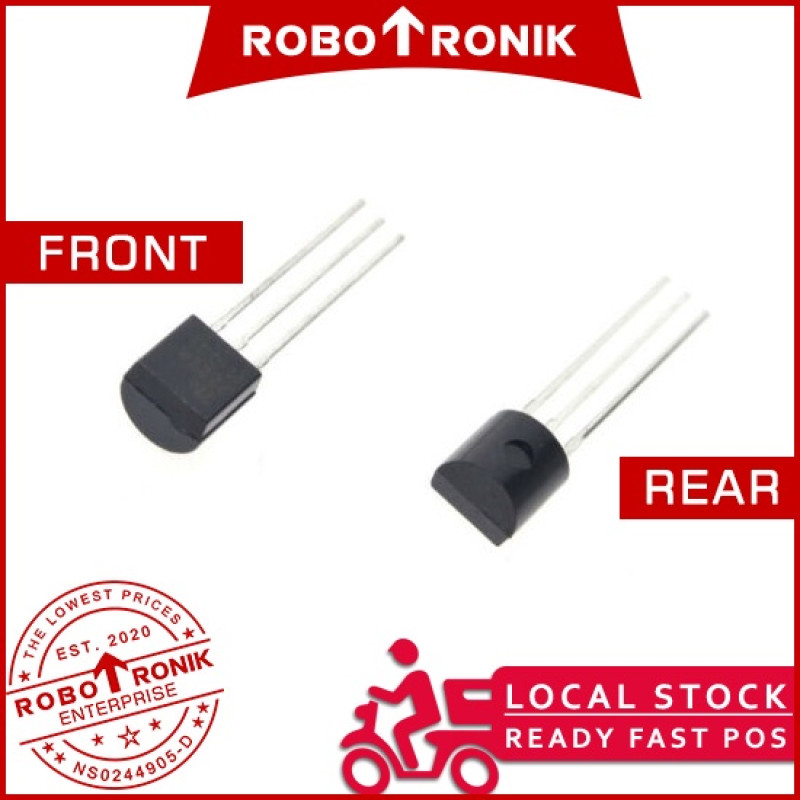

Package-Type: TO-92


✍ 2N2222A (NPN) PN2222 / 2N2222
The most common NPN bipolar junction transistor available in the market. It can be used for amplification of analog signals as well as switching applications.

Applications
General Purpose
Audio Preamplifiers
Audio Amplifier Stages
Switching many loads at the same time (Thanks to its 600mA output in a small TO-92 package)
Darlington Pairs
RF Circuits
Sensor Circuits

Transistor Type: NPN
Max Collector Current(IC): 600mA
Max Collector-Emitter Voltage (VCE): 30V
Max Collector-Base Voltage (VCB): 60V
Max Emitter-Base Voltage (VEBO): 5V

PNP Complementary of 2N2222 is 2N2907

Replacement and Equivalent:
2N2219, 2N1613, 2N2218, 2N2792, NTE123A, 2N3904 (Pin configuration of SOME transistors are different from 2N2222, check pin configuration before replacing in a circuit)

-------------
✍ 2N2907 (PNP)
Bipolar junction transistor (BJT) which is mainly designed for switching and low power general purpose amplification applications. It has an ability to operate at very high speed and moderate temperature.

Applications
General Purpose
Where amplification of low power is needed we use this transistor
It can also be used in the various switching applications
Used for making siren or dual Led or Lamp flasher
Can be used in Darlington Pair

Transistor Type: PNP
Max Collector Current(IC): 600mA
Max Collector-Emitter Voltage (VCE): 40V
Max Collector-Base Voltage (VCB): 60V
Max Emitter-Base Voltage (VEBO): 5V

NPN Complementary of 2N2907 is 2N2222

-------------
✍ 2N3904 (NPN)
Transistor Type: NPN
Max Collector Current(IC): 200mA
Max Collector-Emitter Voltage (VCE): 40V
Max Collector-Base Voltage (VCB): 60V
Max Emitter-Base Voltage (VEBO): 6V

-------------
✍ 2N3906 (PNP)
Transistor Type: PNP
Max Collector Current(IC): 200mA
Max Collector-Emitter Voltage (VCE): 40V
Max Collector-Base Voltage (VCB): 40V
Max Emitter-Base Voltage (VEBO): 5V


▼ Package Included
1 x Transistor
