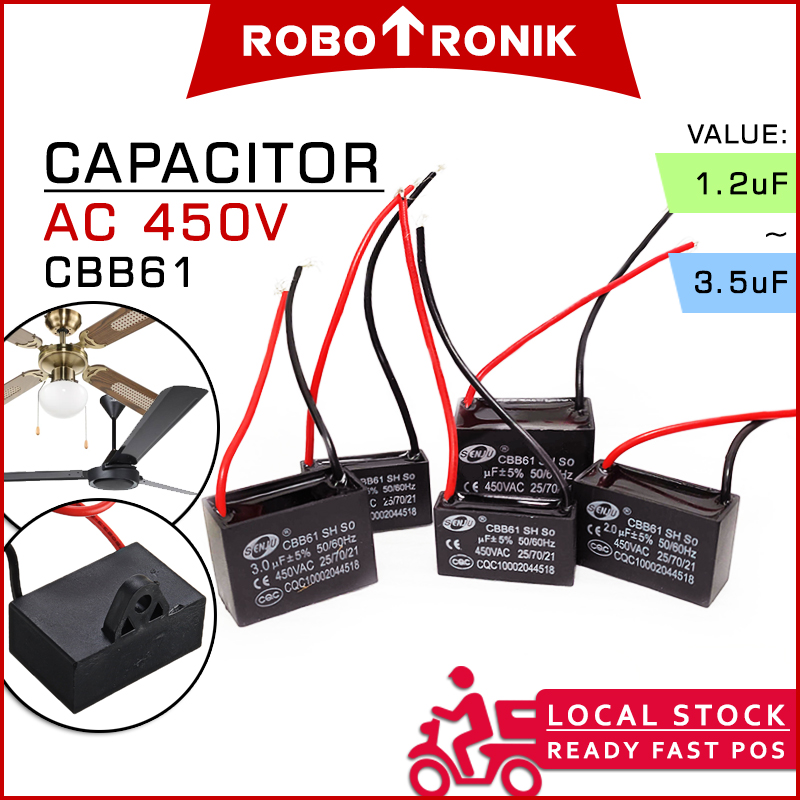

✍ Fan Capacitor Table Fan Capacitor Ceiling Fan Capacitor Machine Capacitor
[Kapasitor Kipas Angin/Mesin/Mesin Basuh]

▼ Features:
Polypropylene film with excellent electrical properties as the medium, and vaporize the metallized layer as the electrode under high vacuum conditions.
High-quality epoxy resin potting material is filled and sealed.
Stable capacity.
Low loss.
High-pressure resistance.

▼ Applications:
Applied to the starting and better working of the motor in 50Hz/60Hz frequency AC power system.

Widely used in ceiling fans, centrifugal fans, fan blowers, air conditioner fans, scavenger fans, mist exhaust fans, water heaters with forced ventilators, bread machines and etc...

▼ Specifications:
Value: 1.0uF / 1.2uF / 1.5uF / 1.8uF / 2.0uF / 2.5uF / 3.0uF / 3.5uF
Connection: 2-wires
Rated voltage: 450VAC
Frequency: 50/60Hz
Working Temperature: -25 to +70°C
Type: Polypropylene Film Capacitor

▼ Package included:
1 X Capacitor
