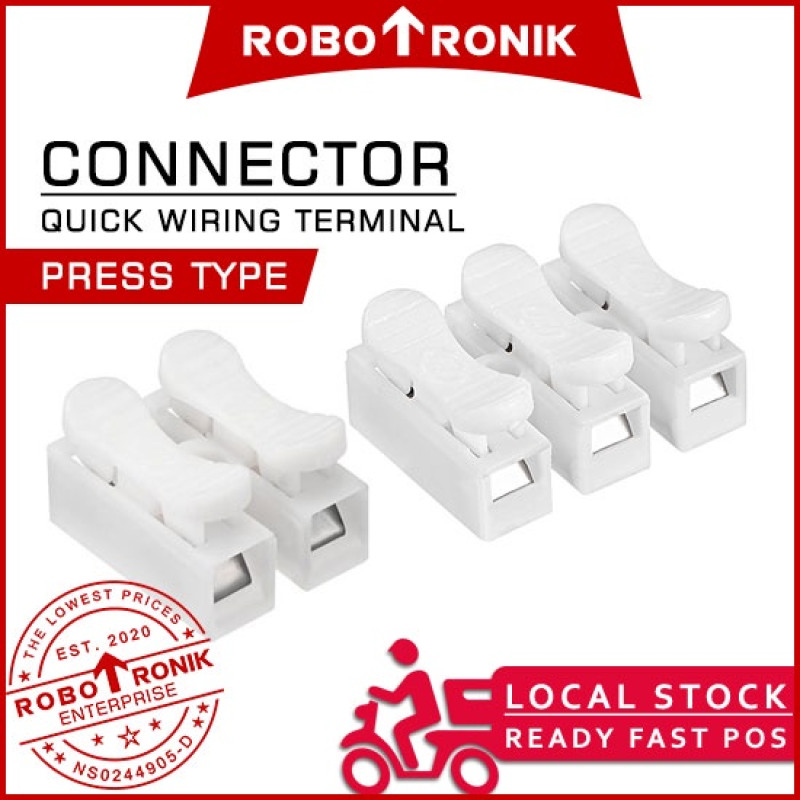

These are the easiest way possible to connect two wires - no if's, and's, or butt's! Well, actually, these are often referred to as wire butts 'cause you 'butt' two wires together (Hey, sorry, but we didn't come up with the name!) Butt seriously folks! OK, so despite the humor, these are really handy. If you want to quickly prototype some wiring, skip the soldering and use these Wire Joints!

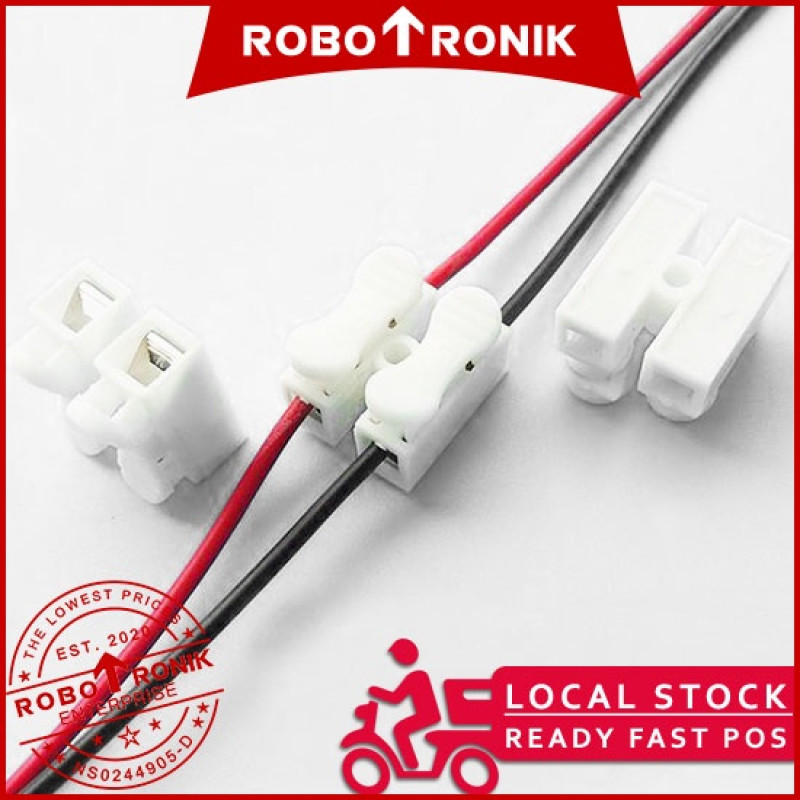

Super handy when your LED strip project requires interfacing bare wires, or maybe you want to extend some motor wires. Or really anything.

Simply open the apertures by pressing on the curved arm, insert the wire into the mounting hole, and release the arm to ensure a snug, firm fit. These wire joints are big enough for a range of wire gauges - we tried 30 thru 16 AWG. Both solid and stranded core will work.

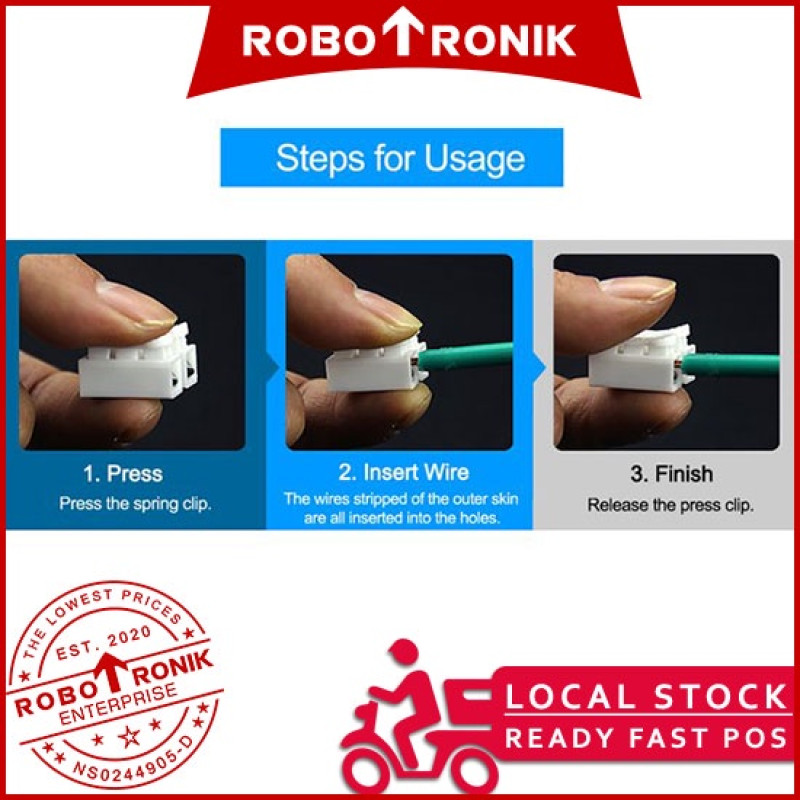

▼ Installation:
1. Press the spring clip.
2. Insert wires. (The wires stripped of the outer skin are all inserted into the holes. Can't be exposed).
3. Release the press clip.

▼ Features:
Screwless terminal
Easiest to use the terminal block to connect two wires
Just press, insert the stripped wire, release and it will hold the wire

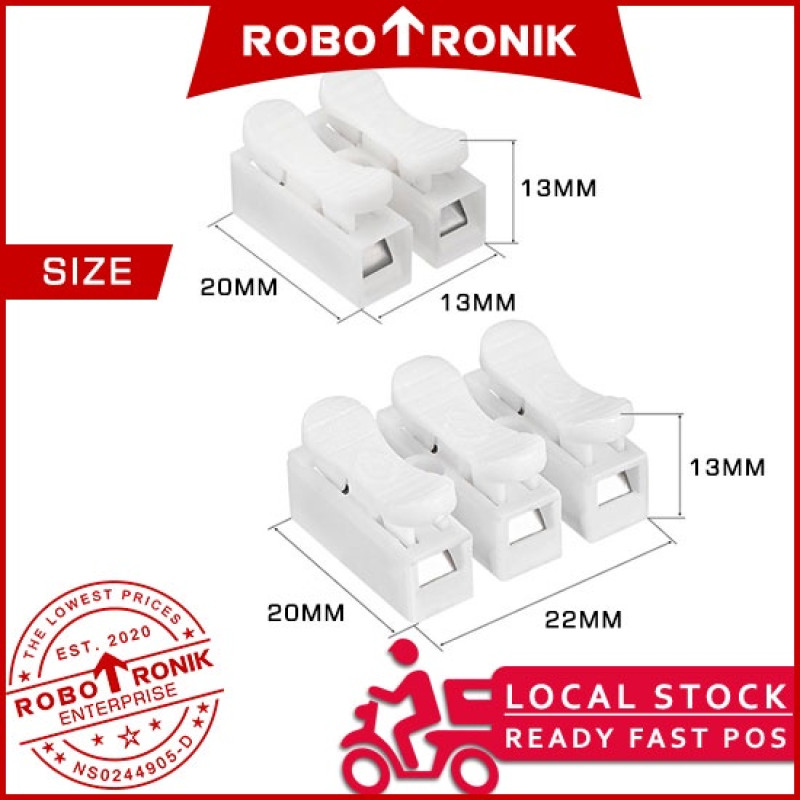

▼ Specifications:
Rated Voltage &Current: 250V, 6A
Suitable for Wire Diameter: 0.5-2.5 Square Millimeters (We have tried 30AWG to 16AWG wires.)
Screw Hole Diameter: M3
Supports multicore/stranded or single-core wire

▼ Packing List:
1 x Quick Wiring Terminal Press Type
