✍ Songle Mechanical Coil Relay SRD is a high sensitive relay with 6 pinouts subminiature relay.

Relays are switches that open and close circuits electromechanically or electronically.
Able to control an electrical circuit by opening and closing contacts in another circuit.

As relay diagrams show, when a relay contact is normally open (NO), there is an open contact when the relay is not energized. In either case, applying electrical current to the contacts will change their state. The relay can be applied in these applications.

- - - - - - - - - -- - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - -

▼ APPLICATIONS
• Microprocessor Control, Store Program Exchanger, Household Appliances, office machine, audio, equipment, automobile, etc.
( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)

▼ FEATURES
• Switching capacity available by 10A in spite of small size design for high-density board mounting technique.
• UL,CUL,TUV recognized
• Selection of plastic material for high temperature and better chemical solution performance.
• Simple relay magnetic circuit to meet the low cost of mass production.

▼ SPECIFICATIONS
Poles & Throw: Single Pole Double Throw

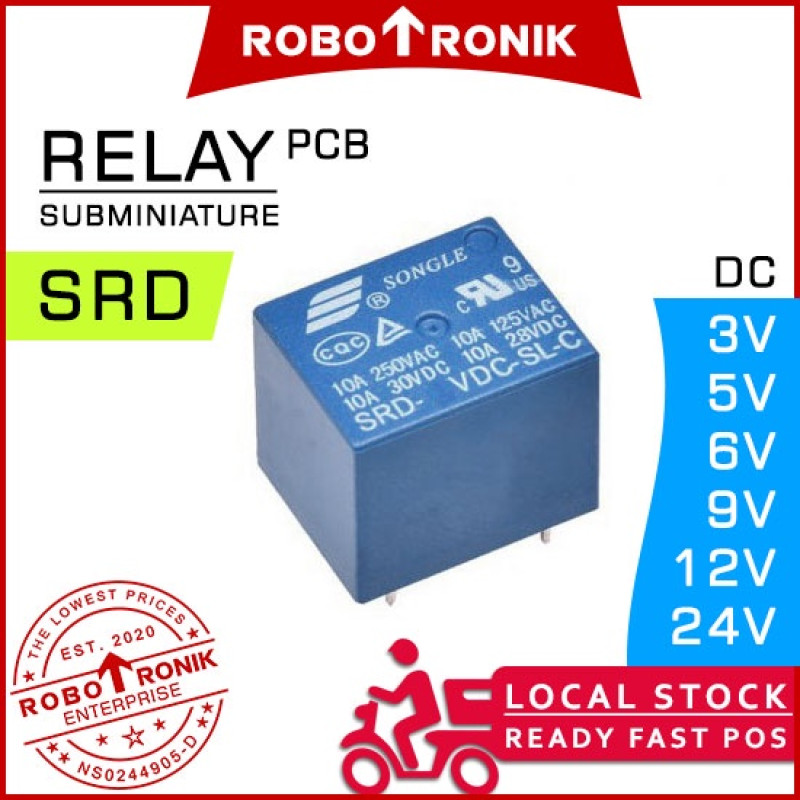

Coil voltage: Optional 3 – 24V DC (Optional)

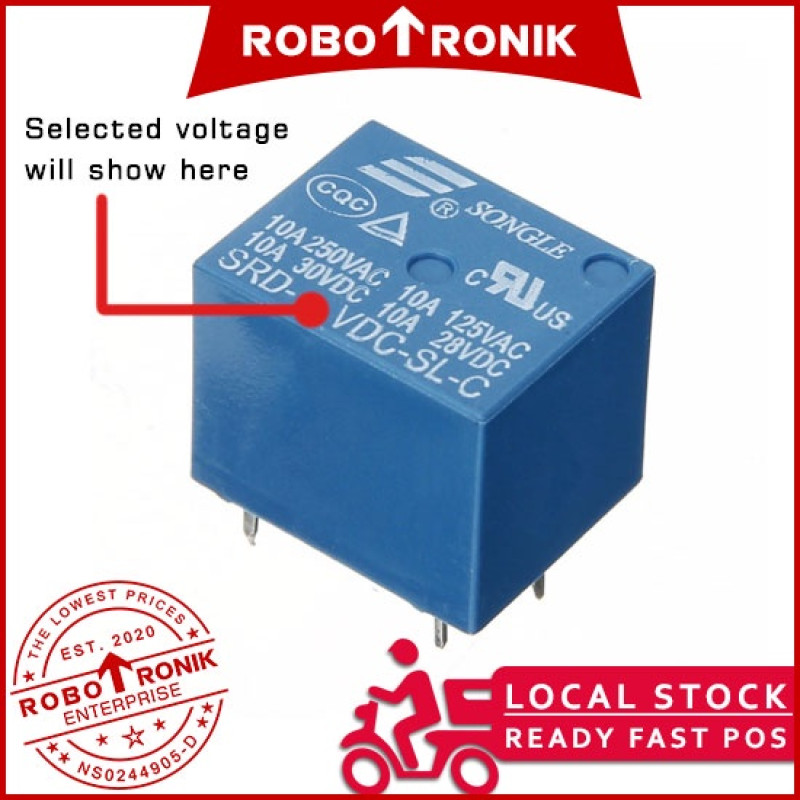

3VDC (SRD-03VDC-SL-C)
5VDC (SRD-05VDC-SL-C)
6VDC (SRD-06VDC-SL-C)
9VDC (SRD-09VDC-SL-C)
12VDC (SRD-12VDC-SL-C)
24VDC (SRD-24VDC-SL-C)
Current rating:
10A 250VAC
10A 30VDC
Max Switching Current: 10A
Max Switching Voltage: 110VDC / 250VAC
Coil power 0.45W
Contact Arrangement: C:1 (NO / NC)
Approvals: UL, CUL, TUV

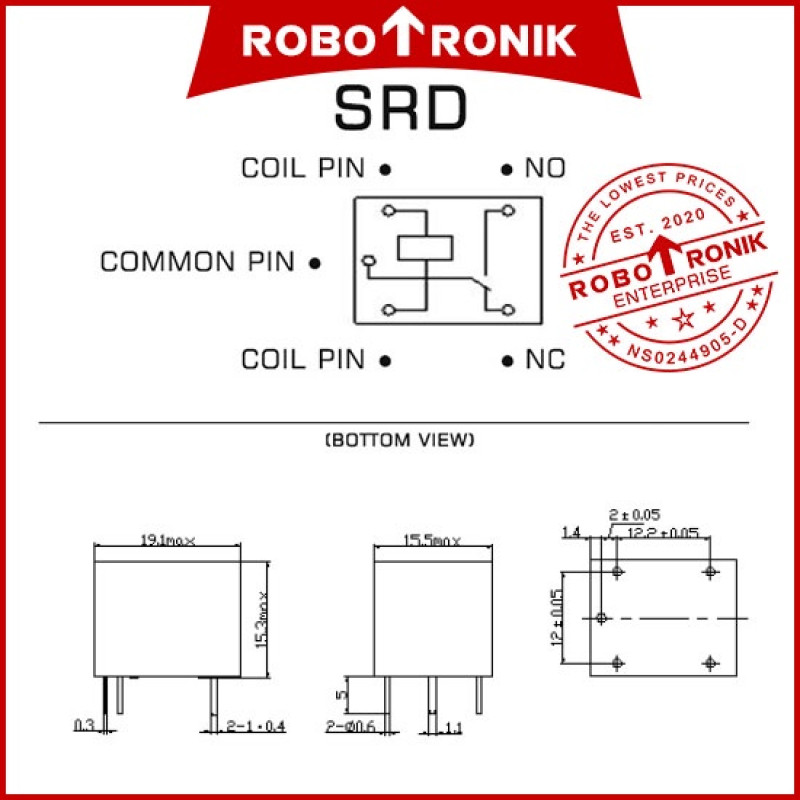

Dimensions: 19 x 15 x 15 mm (LxWxH)

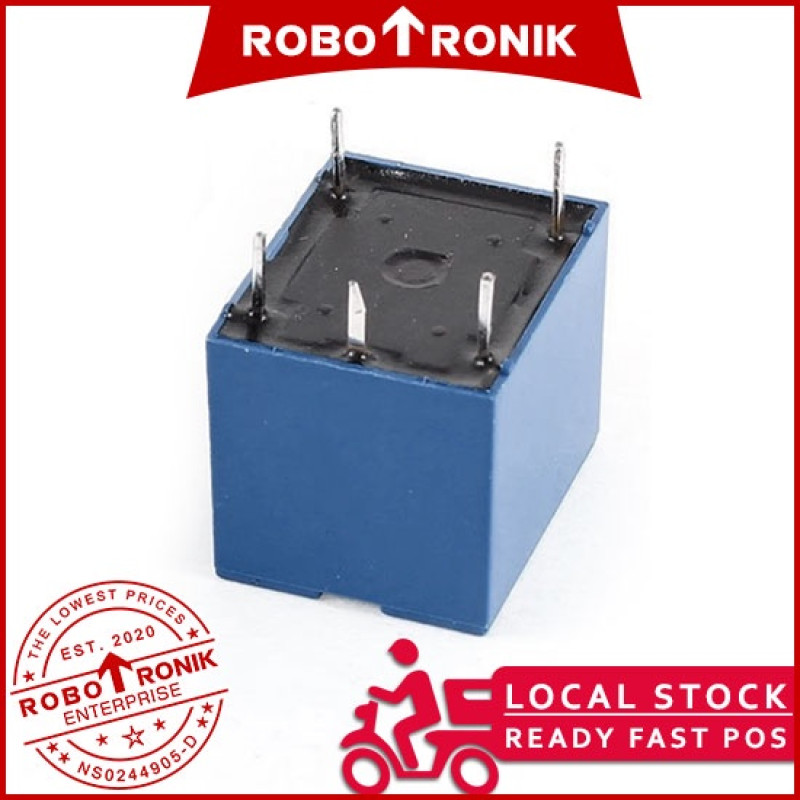

Mounting form: PCB
Pins: 3.90mm

▼ Package Included:
1 x Relay
