▼ Description:

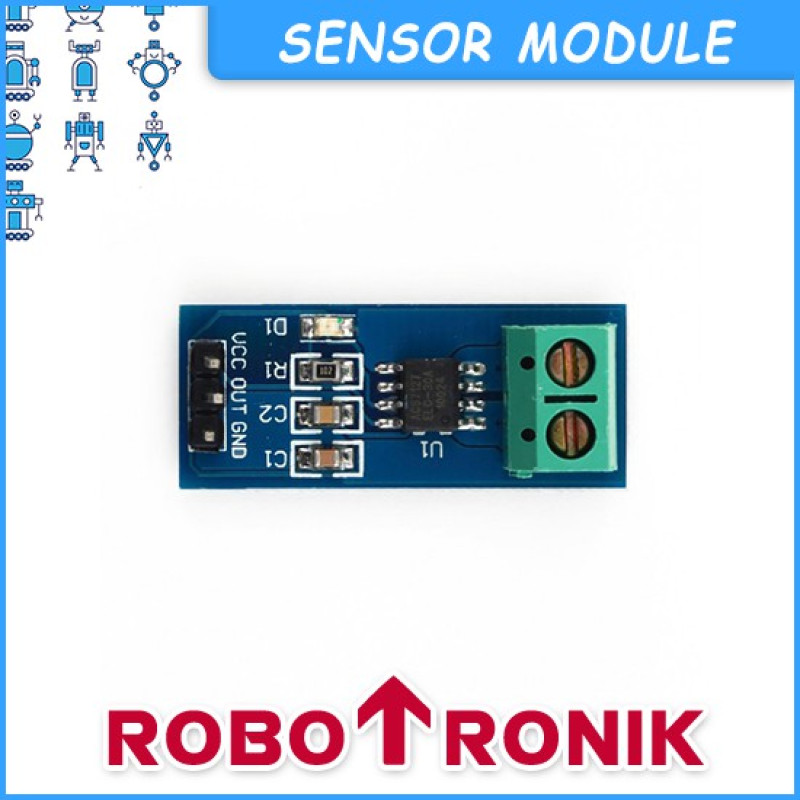

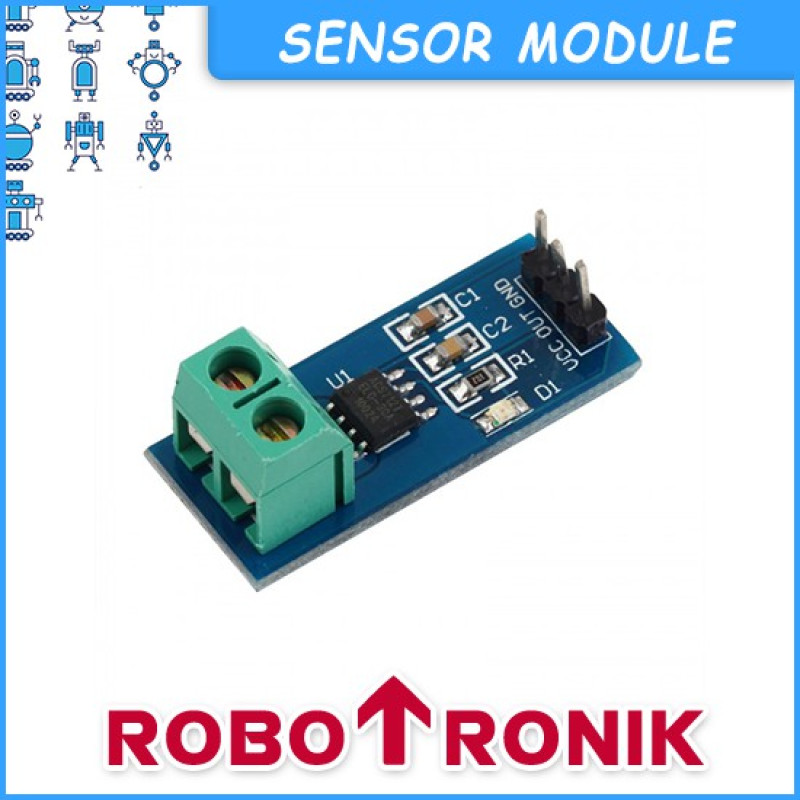

Current sensor chips: ACS712ELC-30A/20A/10A
Pin 5V power supply, on-board power indicator
Can measure the positive and negative 30 amps, corresponding to the analog output 66mV / A
No test current through the output voltage is VCC / 2
PCB board size: 31 (mm) x13 (mm)
